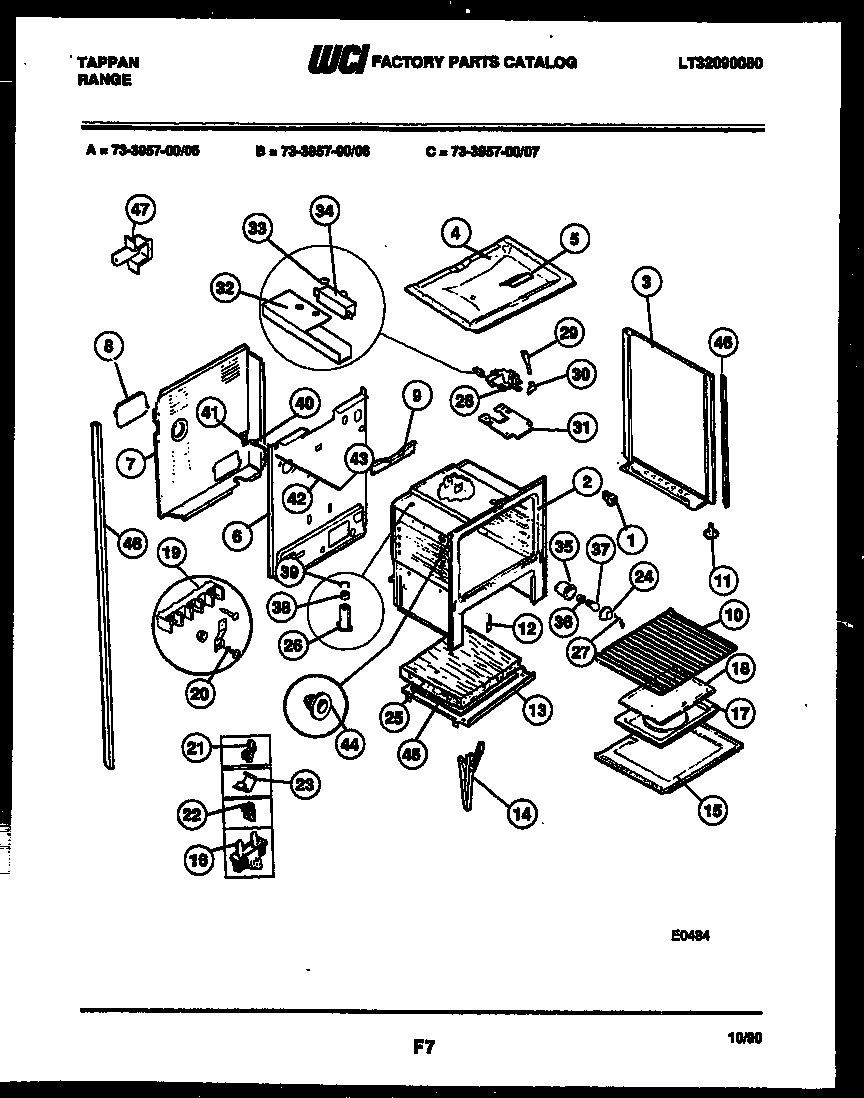

73-3957-00-06 08 – LOWER BODY PARTS

73-3957-00-06 08 – LOWER BODY PARTS

Written by

in

73-3957-00-06 08 – LOWER BODY PARTS

Products

PositionProduct
*218013203550 Frigidaire Oven Plug
1SPACER-BODYSIDE, (8)
3PNL-BODYSIDE RH-WHITE
3PNL-BODYSIDE RH-ALMOND
3PNL B/S-LH (WHEAT)
3PNL B/S-RH (WHEAT)
3PNL-BODYSIDE LH-ALMOND
3PNL-BODYSIDE LH-WHITE
4WCI 08067749
5WCI 3131101
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15PANEL-OVEN BOTTOM
16WCI 5303051385
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20WCI 08011708
21WCI 08067754
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
245304524341 Frigidaire Lens
25316403803 Frigidaire Insulation
26WCI 3051344
27RETAINER-GLASS
27EWCI 08067783
27DSCREW – CHANNEL MTG (NON-ILLUSTRATED)
27AINSULATION, OVEN WRAPPER
27C3131903 Frigidaire Door/Drawer Bumper
27BINSUL OVEN BACK (NON-ILLUSTRATED)
28WCI 3017396
29WCI 5303131357
30AWCI 08013188
30WCI 5308010597
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FSTNR-PUSH ON
34WCI 3131672
35WCI 3131363
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 08067810
39RETAIN, CATALYST
40SWITCH-OVEN LITE DOOR
41WCI 5303131289
42ROD-LIGHT SWITCH
43WCI 08067758
44WCI 08067750
45CFASTENER-EDGE MTG (NOT ILLUSTRATED)
45BSHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
45WCI 3200848
45AWCI 3131305
46WCI 3051724
46AANTI-TIP KIT (NOT ILLUSTRATED)
46WCI 3051723
47WCI 3203582
