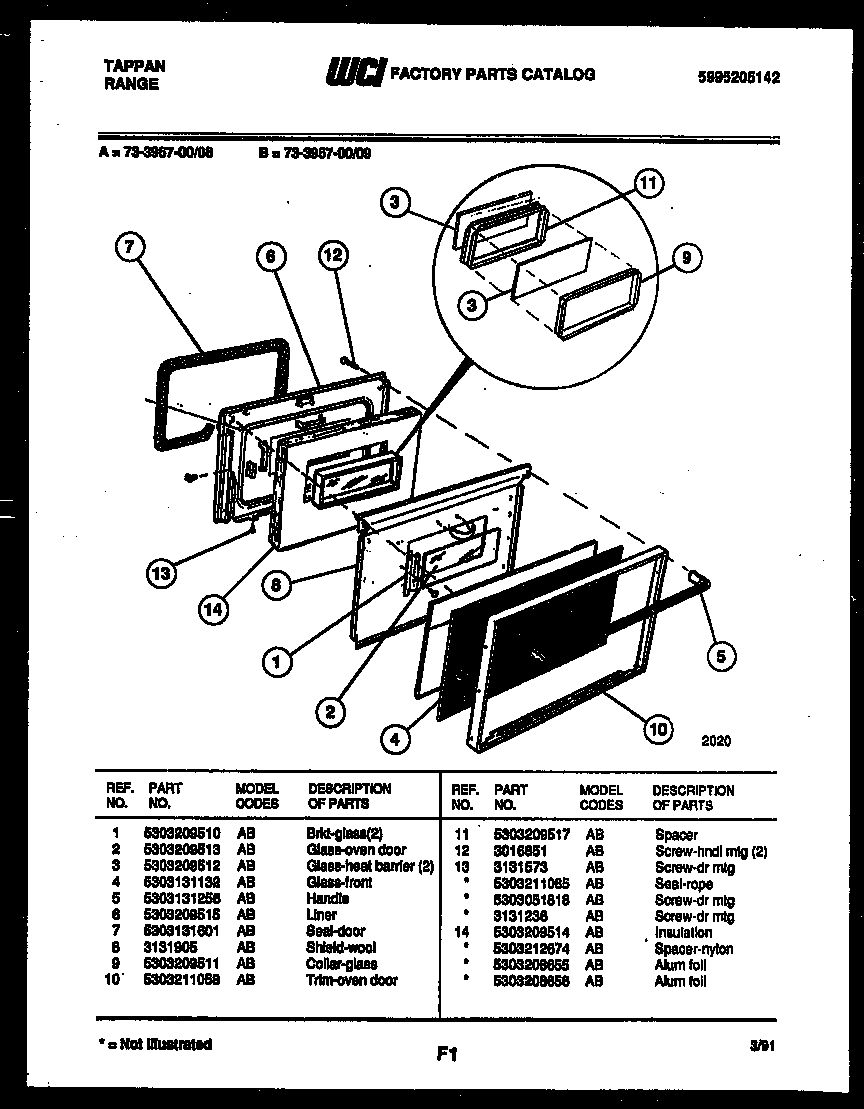

73-3957-00-09 06 – LOWER OVEN DOOR PARTS

73-3957-00-09 06 – LOWER OVEN DOOR PARTS

Written by

in

73-3957-00-09 06 – LOWER OVEN DOOR PARTS

Products

PositionProduct
*44030FSTNR-NYLON SPACER (NON-ILLUSTRATED)
*440305303208655 Frigidaire Reflector Assembly
*44030REFLECTOR, ALUMINUM FOIL
1BRACKET-GLASS MTG
2GLASS-OVEN DOOR, INNER
3GLASS-OVEN DOOR, HEAT BARRIER, (2)
4GLASS FRNT
5HANDLE
6WCI 5303209515
75303131601 Frigidaire Oven Seal
8WCI 3131905
9WCI 5303209511
10WCI 5303211058
11WCI 5303209517
12WCI 3016851
13SCREW DOOR MTG
13ASEAL-ROPE, 0.25 DIA
13CWCI 3131236
13B5303300265 Frigidaire Oven Screw
14INSULATION-OVEN DOOR
