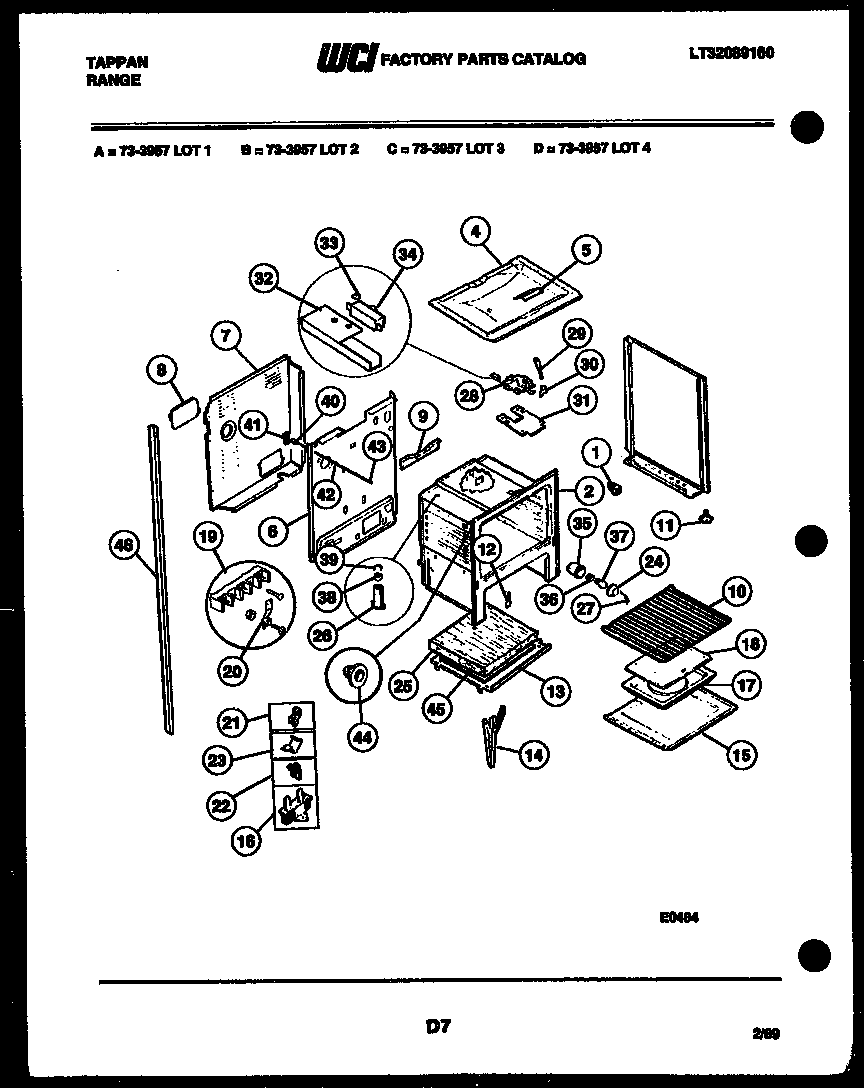

73-3957-23-03 08 – LOWER BODY PARTS

Products

Position	Product
1	SPACER-BODYSIDE, (8)
3	PNL B/S-RH (ALMOND)
3A	PNL B/S-LH (ALMOND)
4	WCI 3051109
5	WCI 3131101
6	WCI 3131567
7	WCI 3051400
8	COVER, LOWER ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	WCI 636M004P01
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	WCI 3051104
16	FUSE-THERMAL CUTOUT
17	PAN, BROILER
18	WCI 3131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 711T048P01
21	CLIP-TUBING (2)
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	WCI 3131298
26	WCI 3051344
27D	SCREW-HNG MTG (6) (NON-ILLUSTRATED)
27E	NUT-HEX BRASS (6) (NON-ILLUSTRATED)
27C	3131903 Frigidaire Door/Drawer Bumper
27	WCI 3131104
27B	INSUL OVEN BACK (NON-ILLUSTRATED)
28	WCI 3017396
29	WCI 3131357
30	WCI 358T158S02
30A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	WCI 241T001P01
34	WCI 695T226P01
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 3051737
39	RETAIN, CATALYST
40	WCI 3014246
41	BRKT LIGHT SWITCH
42	ROD-LIGHT SWITCH
43	WCI 3051251
44	BUTTON-REMOVE LIGHT SWITCH
45A	WCI 3131305
45	WCI 3200848
45B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
45C	FASTENER-EDGE MTG (NOT ILLUSTRATED)
45D	INSULATION, OVEN WRAPPER
45E	316403803 Frigidaire Insulation
46	WCI 3051723
46A	WCI 3051724
