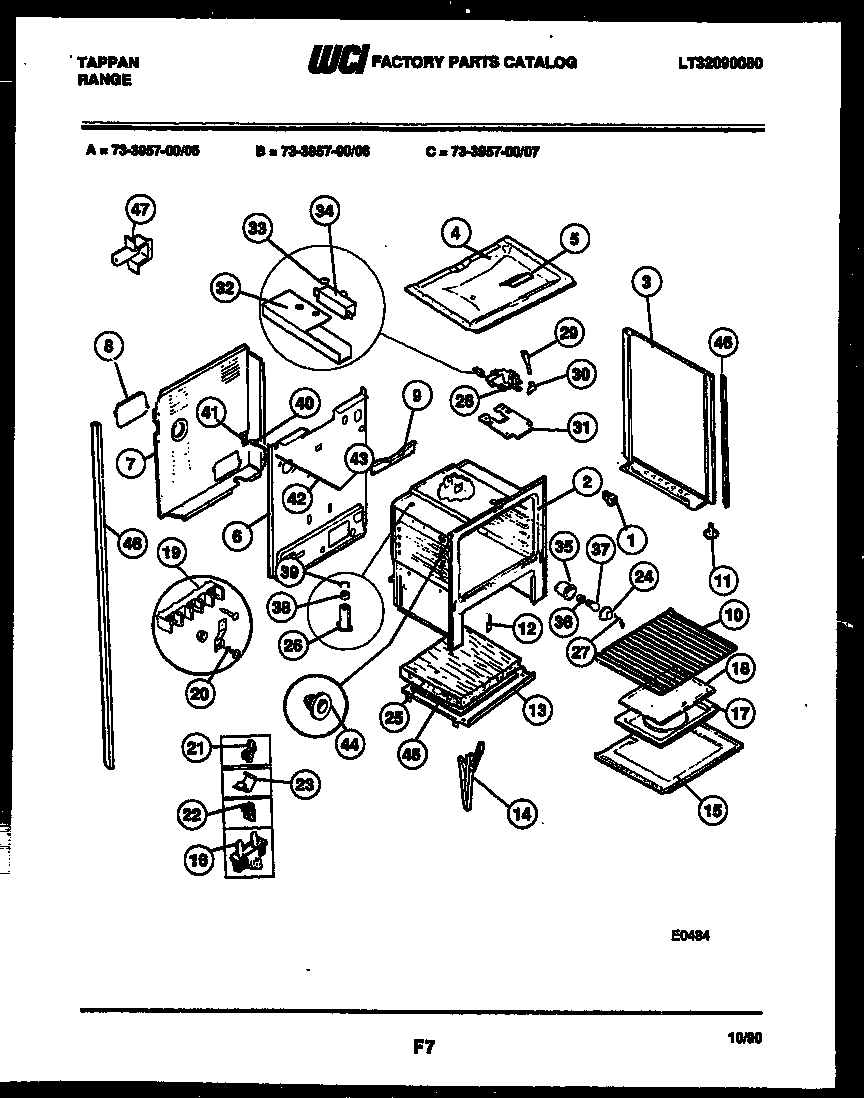

73-3957-23-07 08 – LOWER BODY PARTS

Products

Position	Product
*21801	3203550 Frigidaire Oven Plug
1	SPACER-BODYSIDE, (8)
3	PNL-BODYSIDE RH-ALMOND
3	PNL-BODYSIDE LH-ALMOND
4	WCI 08067749
5	WCI 3131101
6	WCI 3203082
7	SHIELD-REAR WALL, LOWER
8	COVER-ACCESS
9	COVER-FLUE
10	316067902 Frigidaire Oven Rack
11	SCREW-LEVELING
12	WCI 3131570
13	SHIELD, OVEN BOTTOM
14	WCI 316007002
15	PANEL-OVEN BOTTOM
16	WCI 5303051385
17	PAN-BROILER
18	WCI 5303131356
19	5304409888 Frigidaire Oven Terminal Block with Hardware
20	WCI 08011708
21	WCI 08067754
22	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
23	WCI 3051367
24	5304524341 Frigidaire Lens
25	316403803 Frigidaire Insulation
26	WCI 3051344
27E	WCI 08067783
27D	SCREW - CHANNEL MTG (NON-ILLUSTRATED)
27	RETAINER-GLASS
27C	3131903 Frigidaire Door/Drawer Bumper
27B	INSUL OVEN BACK (NON-ILLUSTRATED)
27A	INSULATION, OVEN WRAPPER
28	WCI 3017396
29	WCI 5303131357
30	WCI 5308010597
30A	WCI 08013188
31	SHIELD-LATCH
32	SHIELD-LATCH (NON-ILLUSTRATED)
33	FSTNR-PUSH ON
34	WCI 3131672
35	WCI 3131363
36	316116400 Frigidaire Oven Light Socket
37	316538904 Frigidaire Oven Lamp Light
38	WCI 08067810
39	RETAIN, CATALYST
40	SWITCH-OVEN LITE DOOR
41	WCI 5303131289
42	ROD-LIGHT SWITCH
43	WCI 08067758
44	WCI 08067750
45	WCI 3200848
45C	FASTENER-EDGE MTG (NOT ILLUSTRATED)
45B	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
45A	WCI 3131305
46	TUBE-POST LH
46A	ANTI-TIP KIT (NOT ILLUSTRATED)
46	WCI 5303208642
47	WCI 3203582
