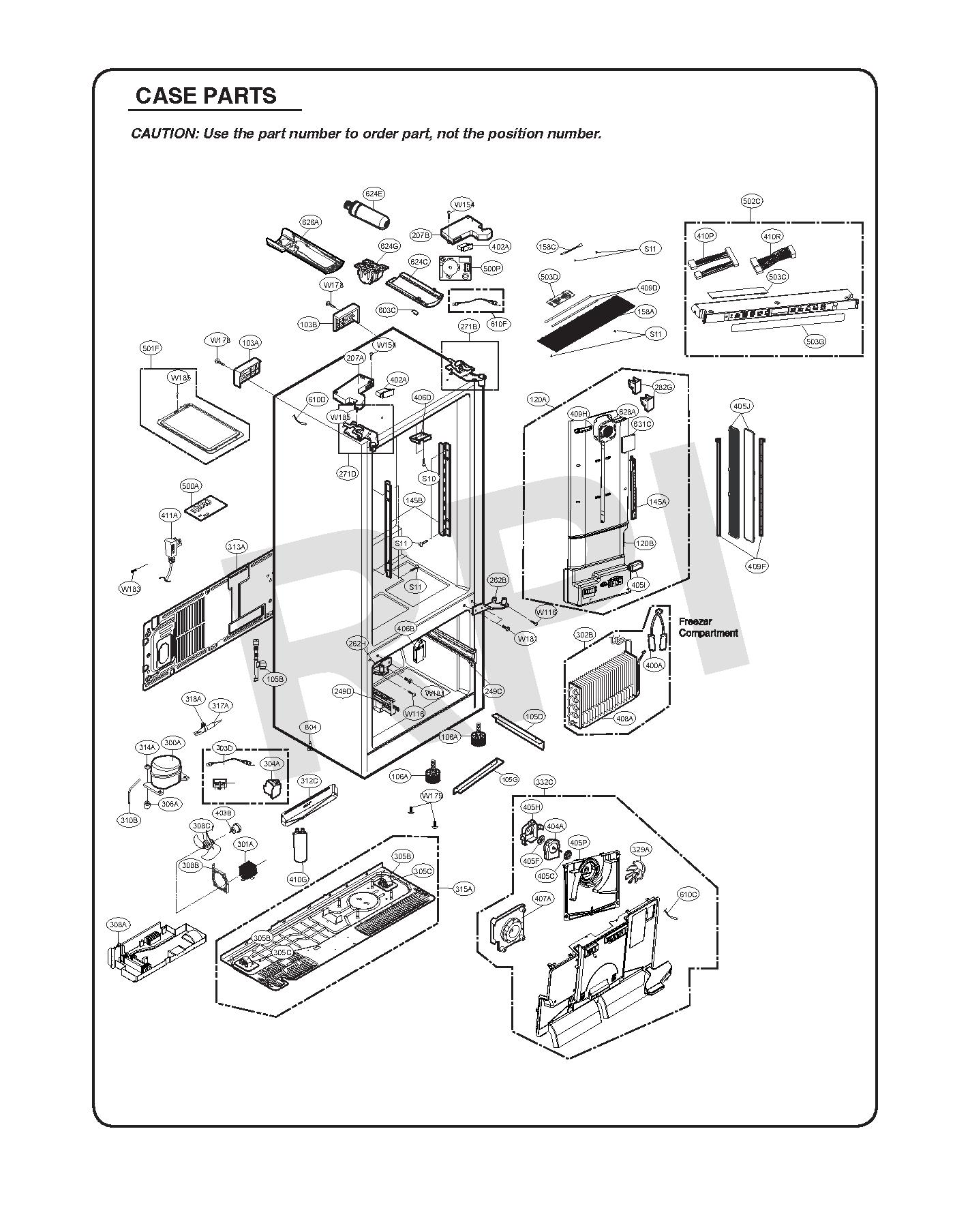

PositionProduct
S101SBZJA3004L LG Customized Screw
W1794J00415D LG Refrigerator Customized Screw
W181LGE 1STZ
W1544J00415H LG Custom Screw
W116LGE 1SZZJJ3010J
S113J05696W LG Customized Screw
B041BZZJA2002A LG Refrigerator Common Bolt
W1781SZZJA3005K LG Screw Customized
103A3650JA2113P LG Rear Handle
103B3650JA2113N LG Refrigerator Rear Handle
105D5070JA3002A LG Lower Skirt
105G5070JA3002Y LG Lower Refrigerator Skirt
105B5251JA2006B LG Drain Tube Assembly
106AAFC72909201 LG Leg Assembly Adjust
120AADJ73252223 LG Duct Assembly
120BEAD60703912 LG Refrigerator Harness Assembly
145BMEG62685801 LG Refrigerator Shelf Holder
145AMEG62685901 LG Refrigerator Shelf Holder
158AMCK67195101 LG Refrigerator Lamp Cover
158CSENSOR-TEMPERATURE
207BCover,Hinge
207ACover,Hinge
249CMEG63303501 LG Rail Holder
249DAEC73837801 LG Refrigerator Rail Guide Assembly
262HAEH73816908 LG Hinge Center Assembly
262BAEH73816906 LG Hinge Center Assembly
271BAEH60614106 LG Upper Hinge Assembly
271DAEH60614101 LG Upper Hinge Assembly
282GMBL65039901 LG Refrigerator Duct Cap
300ATCA38151706 LG Compressor Assembly Set
301AACG73645004 LG Condenser Wire Assembly
302BADL73600907 LG Refrigerator Evaporator Assembly
303DEAD64168631 LG Refrigerator Harness Assembly
304AMCK70052506 LG Refrigerator PTC Cover
305C1PZZJA3013B LG Common Pin
305BMHA62513601 LG Refrigerator Roller
306AMCQ66921101 LG Refrigerator Compressor Damper
308BMEA42772903 LG Fan Guide
308CADP73273401 LG Fan Assembly
308AMJS62233503 LG Drip Tray
310B4J00977P LG Compressor Sealing Pipe
312C3391JJ2013S LG Refrigerator Drain Tray Assembly
313AACQ86284803 LG Refrigerator Machinery Cover Assembly
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN77088901 LG Compressor Base Assembly
317AADH73590303 LG Refrigerator Dryer Assembly
318A4930JA3034A LG Dryer Holder
329AADP73513701 LG Refrigerator Fan Assembly
332CAEB72913943 LG Grille Fan Assembly
400ACONTROLLER ASSY
402AEBF61314813 LG Refrigerator Magnet Switch
403BEAU63103301 LG DC Motor
404AEAU63103208 LG DC Motor
405PMHN62642001 LG Freezer Shroud
405H3550JA2273A LG Refrigerator Motor Cover
405JMCK67195001 LG Lamp Cover
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
405IMCK61881401 LG Lamp Cover
406BEBF61314816 LG Refrigerator Magnet Switch
406DMEG63261302 LG Refrigerator Door Holder
407AABA72913424 LG Motor Assembly Bracket
408AMEE62225127 LG Sheath Heater
409FEAV61916704 LG LED Assembly
409HEAV61572001 LG LED Assembly
409DEAV61916703 LG LED Assembly
410PEAD54367502 LG Harness Assembly
410RHarness Assembly
410GEAE32501017 LG Refrigerator Capacitor
411AEAD62329151 LG Refrigerator Power Cord Assembly
500AEBR84457304 LG Main PCB Assembly
500PEBR64730408 LG Power Control PCB Assembly
501F3551JA2144M LG PCB Cover Assembly
502CABQ56655359 LG Refrigerator CASE Assembly-Display
503CEBR78723401 LG Refrigerator Display PCB Assembly
503DMCK67228501 LG Sensor Cover
503GMCR65687502 LG Refrigerator Control Decor
603C4004JA3002A LG Refrigerator Ice Maker Water Supply Tubing Clip
610CACQ73244001 COVER ASSY-SENSOR
610D6500JB2001B LG Refrigerator Humidity Sensor Thermistor
610FEBR71326804 LG Printed Circuit Board Assembly
624GADQ73673606 LG Filter Head Assembly
624CMCK66849403 LG Filter Cover
624EABN73019101 LG Refrigerator Water Filter Bypass Cap Assembly
626AMCK66584901 LG Cover Filter
628AMCK66592001 LG Refrigerator LED Cover
631CADQ73214404 LG Refrigerator Air Filter Cleaner Assembly
