Products

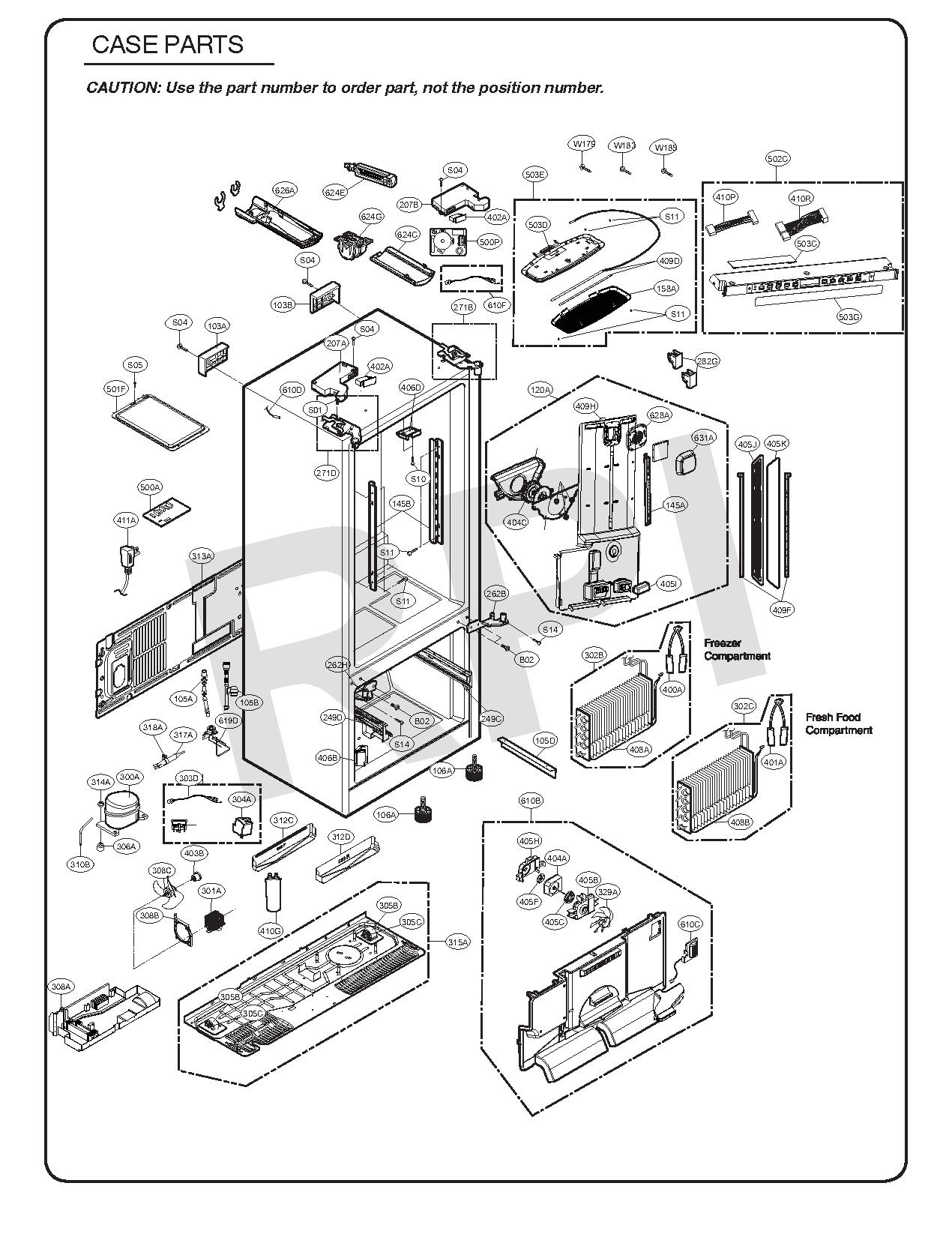

PositionProduct
103B3650JA2061W LG Rear Handle
103A3650JA2061X LG Rear Handle
105ATUBE ASSY-DRAIN
105D5070JA3002S LG Lower Skirt
105B5251JA2006B LG Drain Tube Assembly
106AAFC72909201 LG Leg Assembly Adjust
120AADJ73252246 LG Duct Assembly Multi
145BMEG62685801 LG Refrigerator Shelf Holder
145AMEG62685901 LG Refrigerator Shelf Holder
158AMCK66544101 LG Refrigerator Lamp Cover
207AMCK68187602 LG Refrigerator Hinge Cover
207BMCK68187601 LG Hinge Cover
249CMEG63303501 LG Rail Holder
249DAEC73837801 LG Refrigerator Rail Guide Assembly
262HAEH73577643 LG Refrigerator Center Hinge Assembly
262BHinge Assembly,Center
271BAEH60614102 LG Upper Hinge Assembly
271DAEH60614101 LG Upper Hinge Assembly
282GMBL65039901 LG Refrigerator Duct Cap
300ATCA38151706 LG Compressor Assembly Set
301AACG73645004 LG Condenser Wire Assembly
302CADL73341411 LG Evaporator Assembly
302BADL73981017 LG Evaporator Assembly
303DEAD64168631 LG Refrigerator Harness Assembly
304AMCK70052506 LG Refrigerator PTC Cover
305BMHA62513601 LG Refrigerator Roller
305C1PZZJA3013B LG Common Pin
306AMCQ66921101 LG Refrigerator Compressor Damper
308AMJS62233503 LG Drip Tray
308BMEA42772903 LG Fan Guide
308CADP73273401 LG Fan Assembly
310B4J00977P LG Compressor Sealing Pipe
312D3391JJ2013H LG Refrigerator Drain Tray Assembly
312C3391JJ2013J LG Drain Tray Assembly
313AACQ86284803 LG Refrigerator Machinery Cover Assembly
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN77088901 LG Compressor Base Assembly
317AADH73150208 LG Dryer Assembly
318A4930JA3034A LG Dryer Holder
329A5901JA1021A LG Refrigerator Fan Blade
400ACONTROLLER ASSY
401ACONTROLLER ASSY
402AEBF61314813 LG Refrigerator Magnet Switch
403BEAU63103301 LG DC Motor
404AMOTOR-DC
404CEAU64824801 LG DC Motor Assembly
405KMCK66584302 LG Lamp Cover
405HMCK61880502 LG Motor Cover
405BMAZ61845401 LG Motor Bracket
405IMCK61881401 LG Lamp Cover
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405JMCK66584301 LG Lamp Cover
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
406DMEG63261302 LG Refrigerator Door Holder
406BEBF61314816 LG Refrigerator Magnet Switch
408AMEE62225112 LG Heater Sheath
408BMEE62105201 LG Refrigerator Sheath Heater
409HEAV61572001 LG LED Assembly
409FEAV61916704 LG LED Assembly
409DEAV62052301 LG LED Assembly
410RHarness Assembly
410GEAE32501017 LG Refrigerator Capacitor
410PEAD54367506 LG Harness Assembly
411AEAD62329151 LG Refrigerator Power Cord Assembly
500AEBR78940510 LG Refrigerator Main PCB Assembly
500PEBR64730408 LG Power Control PCB Assembly
501F3551JA2144M LG PCB Cover Assembly
502CABQ56655351 LG Refrigerator Display Case Assembly
503DMBN62347601 LG Refrigerator Case Lamp
503EACQ85449501 LG Refrigerator Lamp Cover Assembly
503GMCR65687509 LG Refrigerator Control Decor Assembly
503CEBR78723405 LG Refrigerator Display PCB Assembly
610BAEB72913947 LG Refrigerator Fan Grille Assembly
610CACQ73244001 COVER ASSY-SENSOR
610D6500JB2001B LG Refrigerator Humidity Sensor Thermistor
610FEBR71326804 LG Printed Circuit Board Assembly
616EMEG61879201 LG Pipe Holder
619DAJU73872501 LG Refrigerator Gas Valve Assembly
619A5220JB2010W LG Water Valve
621B4932JA3002B LG Connector Tube
623A4770JA3001A LG Refrigerator Band
624EABN73019101 LG Refrigerator Water Filter Bypass Cap Assembly
624CMCK66849403 LG Filter Cover
624GLGE ADQ73673605
625A3550JA2184B LG Refrigerator Tube Cover
626ALGE MCK6658
