Products

PositionProduct
103A3650JA2061X LG Rear Handle
103B3650JA2061W LG Rear Handle
105ATUBE ASSY-DRAIN
105D5070JA3002S LG Lower Skirt
105B5251JA2006B LG Drain Tube Assembly
106AAFC72909201 LG Leg Assembly Adjust
120AADJ73252235 LG Multi Duct Assembly

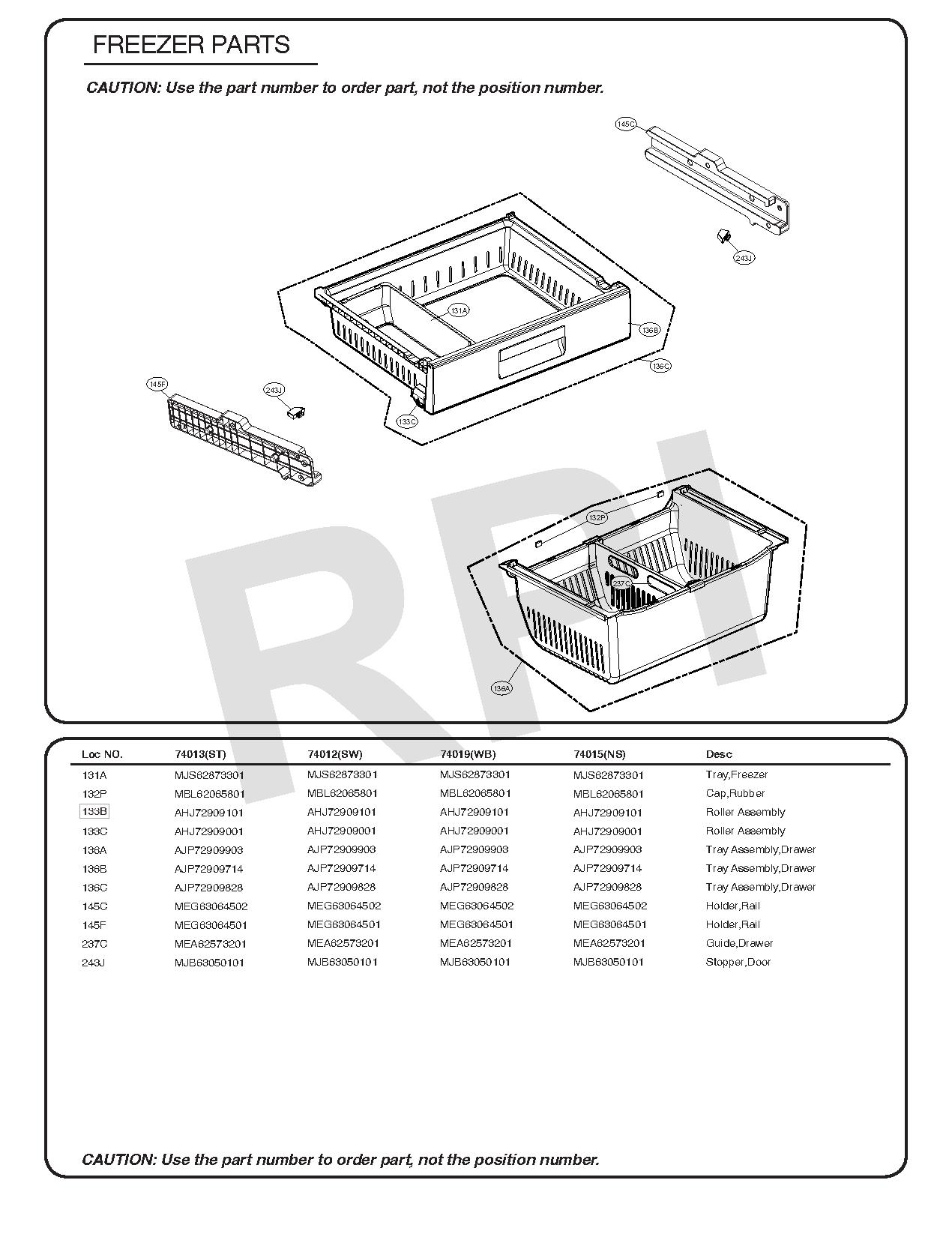

131AMJS62873301 LG Freezer Tray
132PMBL62065801 LG Refrigerator Rubber Cap
133CAHJ73070401 LG Roller Assembly
136AAJP72909903 LG Drawer Tray Assembly
136CAJP72909828 LG Drawer Tray Assembly
136BTray Assembly,Drawer
145CMEG63064502 LG Refrigerator Rail Holder
145AMEG62685901 LG Refrigerator Shelf Holder
145BMEG62685801 LG Refrigerator Shelf Holder
145FMEG63064501 LG Rail Holder
158AMCK66544101 LG Refrigerator Lamp Cover
207AMCK68187602 LG Refrigerator Hinge Cover
207BMCK68187601 LG Hinge Cover
237CMEA62573201 LG Drawer Guide
243JMJB63050101 LG Refrigerator Door Stopper
249DAEC73837801 LG Refrigerator Rail Guide Assembly
249CMEG63303501 LG Rail Holder
262HAEH73577643 LG Refrigerator Center Hinge Assembly
262BHinge Assembly,Center
271BAEH60614102 LG Upper Hinge Assembly
271DAEH60614101 LG Upper Hinge Assembly
282GMBL65039901 LG Refrigerator Duct Cap
300ATCA38151706 LG Compressor Assembly Set
301AACG73645004 LG Condenser Wire Assembly
302BADL73981017 LG Evaporator Assembly
302CADL73341411 LG Evaporator Assembly
303AEBG63205831 LG Thermistor Assembly PTC
303COVERLOAD PROTECT
304AMCK70052506 LG Refrigerator PTC Cover
305BMHA62513601 LG Refrigerator Roller
305C1PZZJA3013B LG Common Pin
306AMCQ66921101 LG Refrigerator Compressor Damper
308BMEA42772903 LG Fan Guide
308AMJS62233503 LG Drip Tray
310B4J00977P LG Compressor Sealing Pipe
312C3391JJ2013J LG Drain Tray Assembly
312D3391JJ2013H LG Refrigerator Drain Tray Assembly
313AACQ86284803 LG Refrigerator Machinery Cover Assembly
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN77088901 LG Compressor Base Assembly
317AADH73150208 LG Dryer Assembly
318A4930JA3034A LG Dryer Holder
327B5040JA3063B LG Damper
329A5901JA1021A LG Refrigerator Fan Blade
400ACONTROLLER ASSY
401ACONTROLLER ASSY
402AEBF61314813 LG Refrigerator Magnet Switch
403BEAU62025701 LG DC Motor
404CEAU65089701 LG DC Motor Assembly
404AEAU61524007 LG Refrigerator DC Evaporator Fan Motor
405HMCK61880502 LG Motor Cover
405BMAZ61845401 LG Motor Bracket
405LMAZ63010801 LG Motor Bracket
405JMCK66584301 LG Lamp Cover
405KMCK66584302 LG Lamp Cover
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
405IMCK61881401 LG Lamp Cover
406DMEG63261302 LG Refrigerator Door Holder
406BEBF61314816 LG Refrigerator Magnet Switch
408AMEE62225112 LG Heater Sheath
408BMEE62105201 LG Refrigerator Sheath Heater
409DEAV62052301 LG LED Assembly
409FEAV61916704 LG LED Assembly
409HEAV61572001 LG LED Assembly
410PEAD54367506 LG Harness Assembly
410RHarness Assembly
410GEAE32501017 LG Refrigerator Capacitor
411AEAD61445236 LG Power Cord Assembly
500PEBR64730408 LG Power Control PCB Assembly
500AEBR78940506 LG Main PCB Assembly Refrigerator
501F3551JA2144M LG PCB Cover Assembly
502CABQ56655351 LG Refrigerator Display Case Assembly
503GMCR65687509 LG Refrigerator Control Decor Assembly
503EACQ85449501 LG Refrigerator Lamp Cover Assembly
503DMBN62347601 LG Refrigerator Case Lamp
503CEBR78723405 LG Refrigerator Display PCB Assembly
610CLGE ACQ7324
610BAEB72913936 LG Fan Grille Assembly
