Products

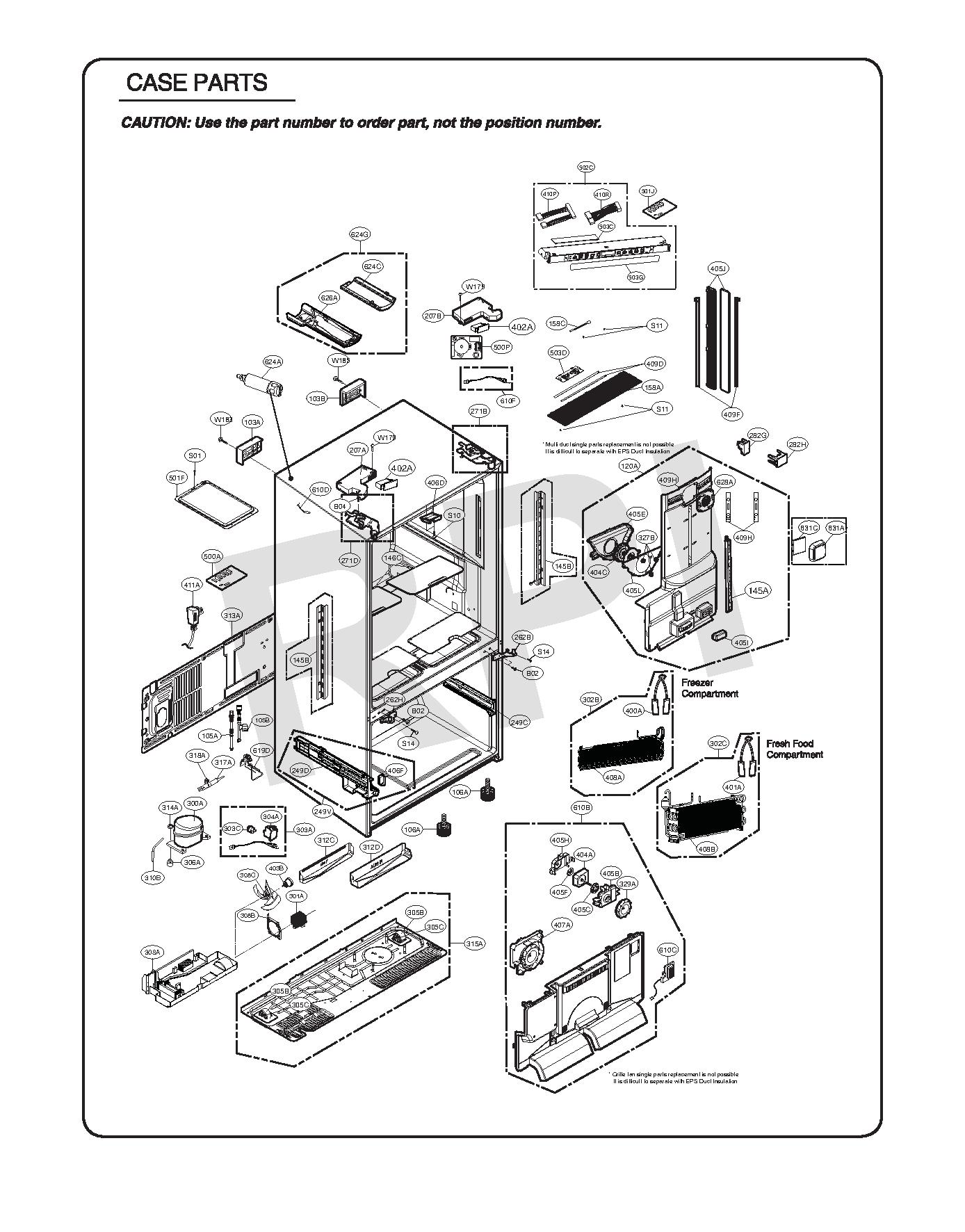

PositionProduct
103B3650JA2061W LG Rear Handle
103A3650JA2061X LG Rear Handle
105B5251JA2006B LG Drain Tube Assembly
105ATUBE ASSY-DRAIN
106AAFC72909201 LG Leg Assembly Adjust
120AADJ73252257 LG Multi Duct Assembly
145BMEG62685801 LG Refrigerator Shelf Holder
145AMEG62685901 LG Refrigerator Shelf Holder
146CACQ85959309 LG Refrigerator Cover Assembly
158AMCK67195101 LG Refrigerator Lamp Cover
158CSENSOR-TEMPERATURE
207AMCK68187602 LG Refrigerator Hinge Cover
207BMCK68187601 LG Hinge Cover
249VAEC73697501 LG Refrigerator Guide Assembly-Rail
249DHolder,Rail
249CMEG63148102 LG Holder Rail
262HAEH73577616 LG Hinge Assembly Center
262BAEH73577614 LG Center Hinge Assembly
271DAEH60614101 LG Upper Hinge Assembly
271BAEH60614102 LG Upper Hinge Assembly
282HMBL65205601 LG Refrigerator Duct Cap
282GMBL65039901 LG Refrigerator Duct Cap
300ATCA36491304 LG Compressor
301AACG73645004 LG Condenser Wire Assembly
302BADL73980910 LG Refrigerator Evaporator Assembly
302CADL73881001 LG Evaporator Assembly
303C6750CL0001F LG Refrigerator Overload Protector
303AEBG63205833 LG Refrigerator PTC Thermistor Assembly
304AMCK70052506 LG Refrigerator PTC Cover
305BMHA62513601 LG Refrigerator Roller
305C1PZZJA3013B LG Common Pin
306AMCQ66921101 LG Refrigerator Compressor Damper
308BMEA42772903 LG Fan Guide
308AMJS62233503 LG Drip Tray
308CADP73273401 LG Fan Assembly
310B4J00977P LG Compressor Sealing Pipe
312D3391JJ2013N LG Refrigerator Drain Tray Assembly
312C3391JJ2013J LG Drain Tray Assembly
313AACQ86284803 LG Refrigerator Machinery Cover Assembly
314A4620JA3015A LG Refrigerator Compressor Stopper
315AAAN77088901 LG Compressor Base Assembly
317AADH73150208 LG Dryer Assembly
318A4930JA3034A LG Dryer Holder
327B5040JA3063B LG Damper
329AADP73013901 LG Refrigerator Fan Assembly
400ACONTROLLER ASSY
401ACONTROLLER ASSY
402AEBF61314813 LG Refrigerator Magnet Switch
403BEAU63103301 LG DC Motor
404AEAU63103203 LG DC Motor
404CEAU63503709 LG Refrigerator DC Motor Assembly
405JMCK67195001 LG Lamp Cover
405IMCK61881401 LG Lamp Cover
405F5040JA2004B LG Refrigerator Motor Rubber Grommet Support
405HMCK61880502 LG Motor Cover
405BMAZ61845401 LG Motor Bracket
405C5040JA2009B LG Refrigerator Damper Support Motor Rubber Grommet
405EMHN62542001 LG Refrigerator Shroud
405LMAZ63010801 LG Motor Bracket
406DMEG63261302 LG Refrigerator Door Holder
406FEBF61314816 LG Refrigerator Magnet Switch
407AABA72913423 LG Motor Assembly Bracket
408BMEE62105206 LG Heater Sheath
408AMEE62225112 LG Heater Sheath
409HEAV61572001 LG LED Assembly
409DEAV61916703 LG LED Assembly
409FEAV61916704 LG LED Assembly
410RHarness Assembly
410PEAD54367502 LG Harness Assembly
411AEAD62329151 LG Refrigerator Power Cord Assembly
500AEBR83806911 LG Refrigerator Main PCB Assembly
500PEBR64730408 LG Power Control PCB Assembly
501F3551JA2144M LG PCB Cover Assembly
501JEBR85031601 LG Refrigerator Circuit Board Assembly
502CABQ76120204 LG Refrigerator CASE Assembly-Display
503GMCR65687515 LG Refrigerator Control Decor
503CEBR78723408 LG Refrigerator Display PCB Assembly
503DMCK67228501 LG Sensor Cover
610BAEB72913939 LG Refrigerator Fan Grille Assembly
610FEBR71326804 LG Printed Circuit Board Assembly
610D6500JB2001B LG Refrigerator Humidity Sensor Thermistor
610CACQ73244001 COVER ASSY-SENSOR
619DAJU73872501 LG Refrigerator Gas Valve Assembly
624CMCK66849403 LG Filter Cover
624AADQ74793502 LG Water Filter Assembly
624GLGE AKN7294
