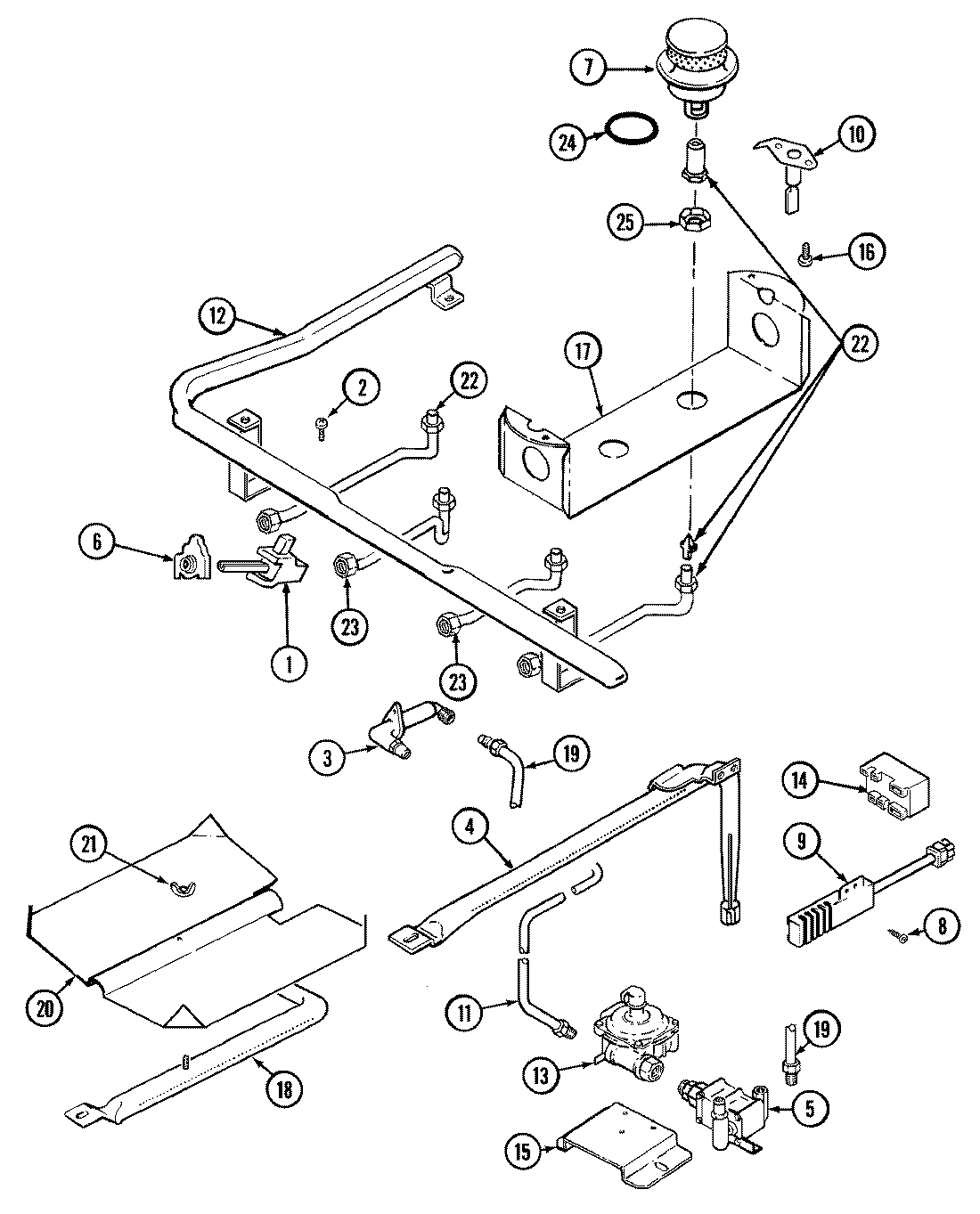

7458XRW 06 – GAS CONTROLS

7458XRW 06 – GAS CONTROLS

Products

PositionProduct
1MAY 7502P218-60
2MAY 7101P044-60
3WP3387230 Whirlpool Screw
3MAY 3605F186-45
3MAY 7507P088-60
4MAY 3807F446-45
4MAY 3403D043-45
5WP74006427 Whirlpool Oven Valve
6WP7403P279-60 Whirlpool Igniter Switch
7WP3412D024-09 Whirlpool Oven Burner Head
8SCREW (10-24X5/16-NI)
9MAY 7432P076-60
10NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
11MAY 3414F110-44
12MAY 7513P155-60
12MAY 7103P130-60
13MAY 3807F447-51
13MAY 7510P065-60
14MAY 3801F341-45
14MAY 7431P023-60
15MAY 8020P007-60
16MAY 7101P315-60
17MAY 3807F451-45
18MAY 3403D024-45
19MAY 3414F102-44
19MAY 8004P007-60
20MAY 3601F217-45
21NUT, WING
22MAY 7507P085-60
23MAY 7507P084-60
24MAY 7201P050-60
25MAY 7103P119-60
