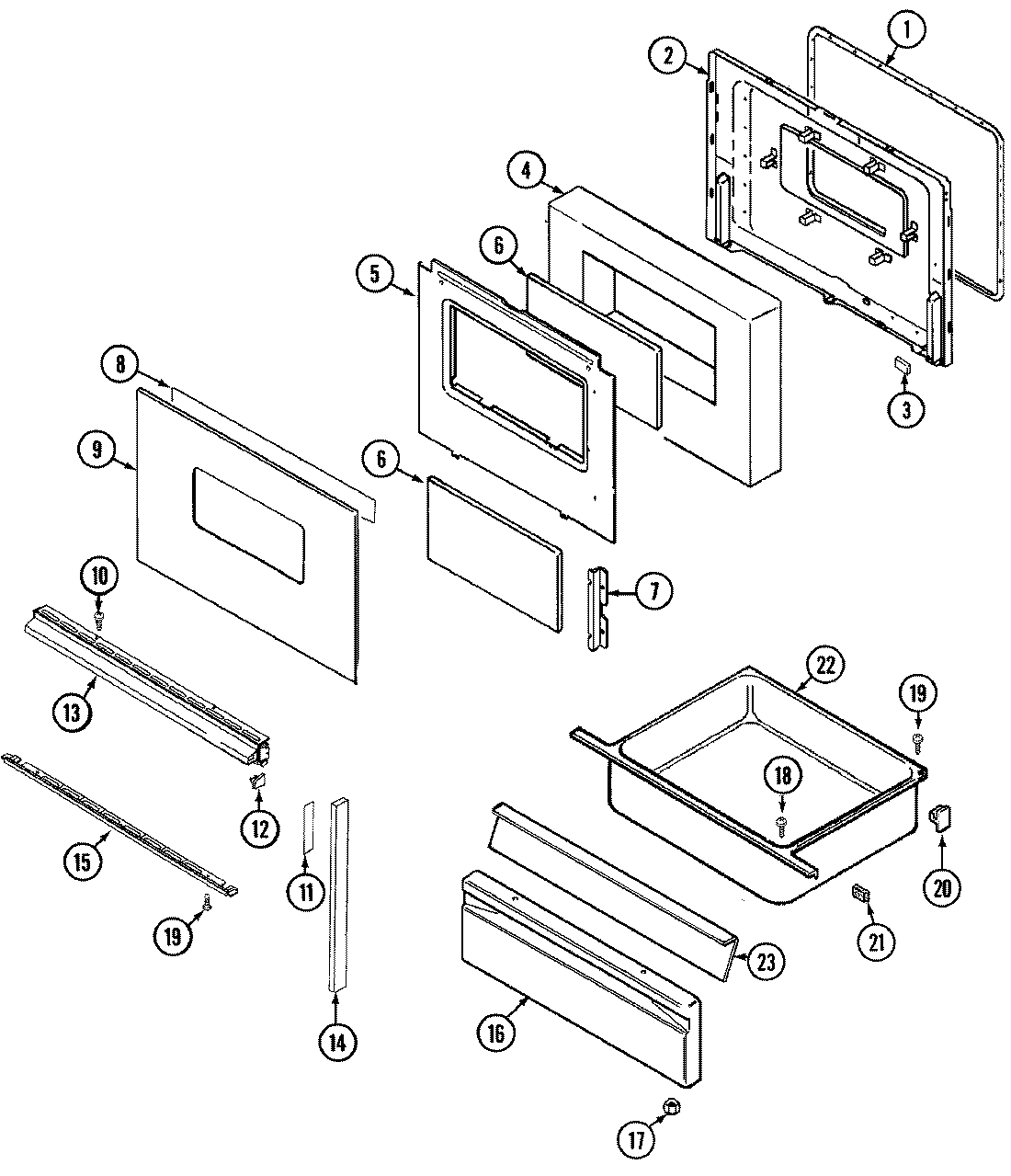

7458XVA 06 – DOOR/DRAWER (SER. PRE. 11)

Products

Position	Product
1	GASKT-DOOR OVEN
2	MAY 2402W209-19
2	MAY 74003244
3	MAY 8010P085-60
4	MAY 74001842
5	MAY 74001843
6	MAY 74001841
7	MAY 74001844
8	TAPE, FOIL (3“ WIDE)
9	MAY 74003431
9	MAY 7902P321-60
10	WP98008545 Whirlpool Screw
11	MAY 8270P093-60
12	MAY 7744P075-60
12	MAY 7744P076-60
12	NOT REQUIRED PART OR SEE NOTE FUSE (NOT REQUIRED)
12	MAY 74002540
12	MAY 74002539
13	MAY 7701P103-60
13	MAY 7701P144-60
13	MAY 74003429
14	MAY 74002084
14	MAY 74003430
14	MAY 7744P055-60
15	MAY 7744P105-60
15	MAY 74003432
16	MAY 74003522
16	MAY 2416F038-64
17	WPW10131078 Whirlpool Nut Assembly
18	WP7101P072-60 Whirlpool Screw
20	MAY 74003566
20	WP8004P026-60 Whirlpool Support
21	MAY 7208P011-60
22	MAY 71003042
22	MAY 3405F018-80
23	SCREW
23	LINING, DRAWER PANEL
