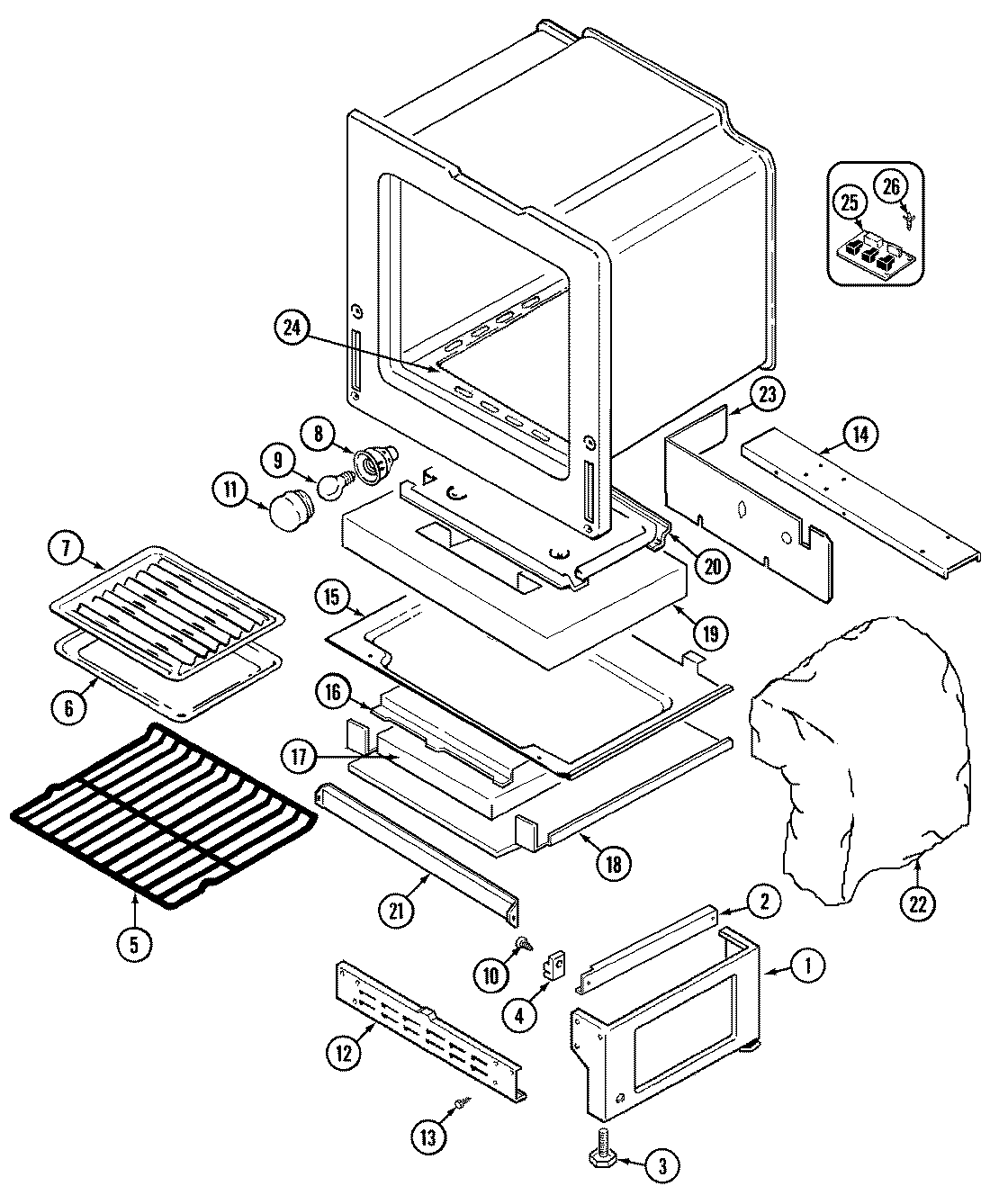

7458XVA 09 – OVEN/BASE
Written by
in
7458XVA 09 – OVEN/BASE
Products
Position
Product
1
MAY 4020W015-80
1
MAY 74003003
2
MAY 3406F028-51
3
W11665456 Whirlpool Range Level Foot
3
MAY 74001311
4
MAY 74003566
4
MAY 8004P033-60
4
MAY 74002312
5
MAY 7801P047-60
6
MAY Y3401F02019
7
MAY Y3413F01619
8
MAY 74003125
8
WP7407P182-60 Whirlpool Lamp
9
RANGE ONLY 40W 120V APPL BULB
10
SCREW
11
WP9781049 Whirlpool Light Lens
12
MAY 4020F001-80
13
MAY 7101P290-60
14
MAY 3807F447-51
15
MAY 3804F109-51
16
MAY 3604F204-51
17
INSULATION, DRAWER & SHIELD
18
MAY 3604F205-51
19
MAY 4804F014-60
20
MAY 3401F025-47
21
MAY 3601F208-45
21
BAFFLE, OVEN FRONT
22
MAY 3804F112-47
22
MAY 4804F038-60
22
MAY 4804F036-60
22
MAY 74003037
23
MAY 4005F429-51
24
MAY 3601F246-45
24
MAY 5504M004-19
24
MAY 3804F010-50
25
MAY 7428P020-60
25
MAY 74003168
26
SUPPORT, RELAY
26
MAY 3807F439-51
27
MAY 4005F420-80
←
