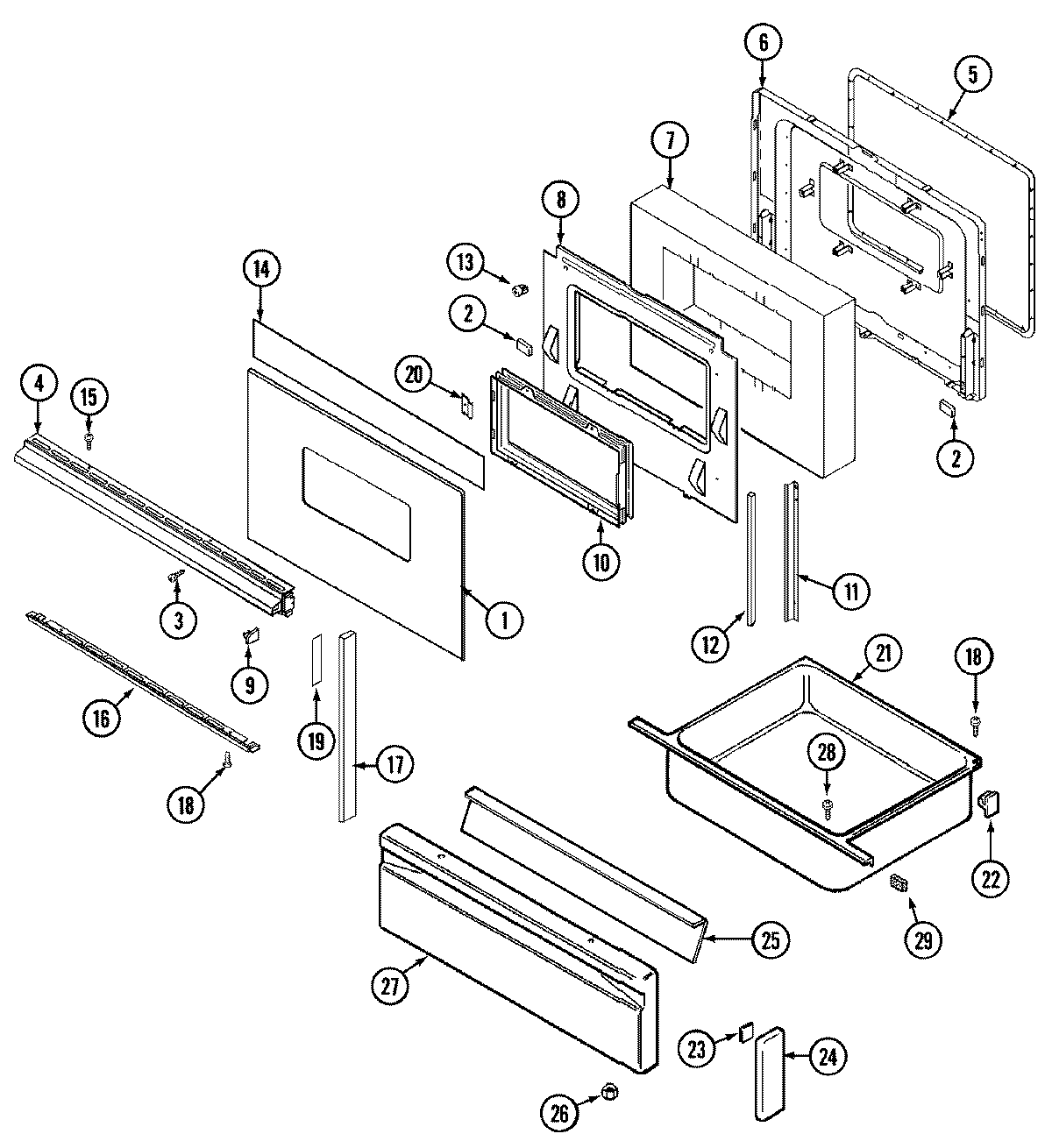

7498XVA 03 – DOOR/DRAWER

7498XVA 03 – DOOR/DRAWER

Written by

in

7498XVA 03 – DOOR/DRAWER

Products

Position	Product
1	MAY 7902P321-60
2	MAY 8010P085-60
3	WP3387230 Whirlpool Screw
4	MAY 7701P103-60
5	GASKT-DOOR OVEN
6	MAY 2402W209-19
7	MAY 7002P155-60
8	MAY 3601F236-47
9	MAY 7744P076-60
9	MAY 7744P075-60
10	MAY 7907P021-60
11	MAY 3818F052-80
12	MAY 7208P002-60
13	MAY 7103P045-60
14	TAPE, FOIL (3“ WIDE)
15	WP98008545 Whirlpool Screw
16	MAY 7744P105-60
17	MAY 7744P055-60
18	MAY 7101P290-60
19	MAY 8270P048-60
20	MAY 74001449
20	MAY 3805F002-34
21	MAY 3405F018-80
22	MAY 7101P291-60
23	WP8004P026-60 Whirlpool Support
26	LINING, DRAWER PANEL
27	WPW10131078 Whirlpool Nut Assembly
28	MAY 2416F038-64
29	WP4159193 Whirlpool Screw
