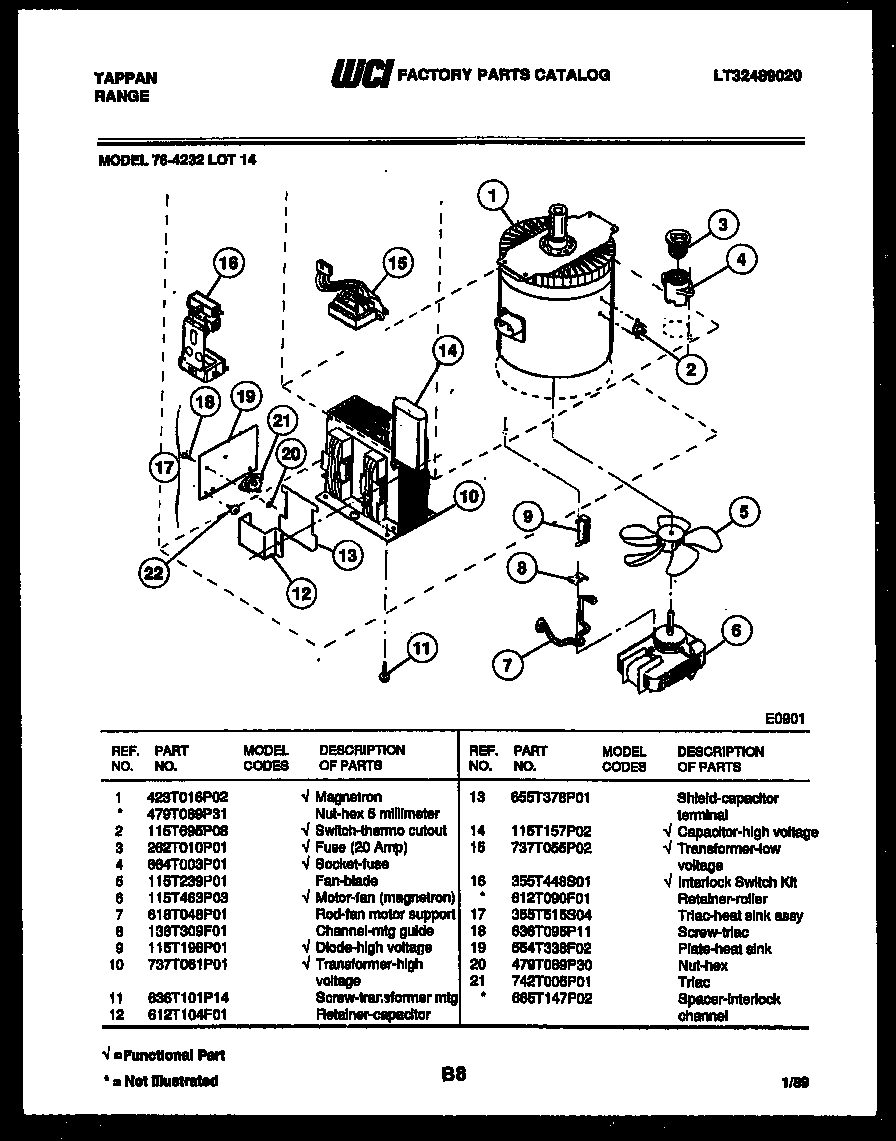

76-4232-23-14 05 – POWER CONTROL – Aparts

76-4232-23-14 05 – POWER CONTROL

Products

Position	Product
*20384	WCI 665T147P02
1	WCI 423T016P02
1A	NUT (NON-ILLUSTRATED)
2	SWITCH
3	FUSE
4	SOCKET
5	FAN BLADE TRANSFORMER
6	MOTOR FAN
7	ROD MOTOR (2)
8	CHANNEL
9	WCI 115T198P01
10	TRANSFORMER HV
11	SCREW, TRANS (4)
12	RETAINER
13	SHIELD CAPACITOR
14	CAPAC HI VOLT. NON PCP
15	TRANSFORMER LV
16A	WCI 612T090F01
16	SWITCH KIT (+)
17	TRIAC, HEAT SINK
18	SCREW (2)
19	WCI 554T338F02
20	NUT (2)
21	WCI 742T005P01
