76-4232-23-14 12 – CONTROL PANEL – Aparts

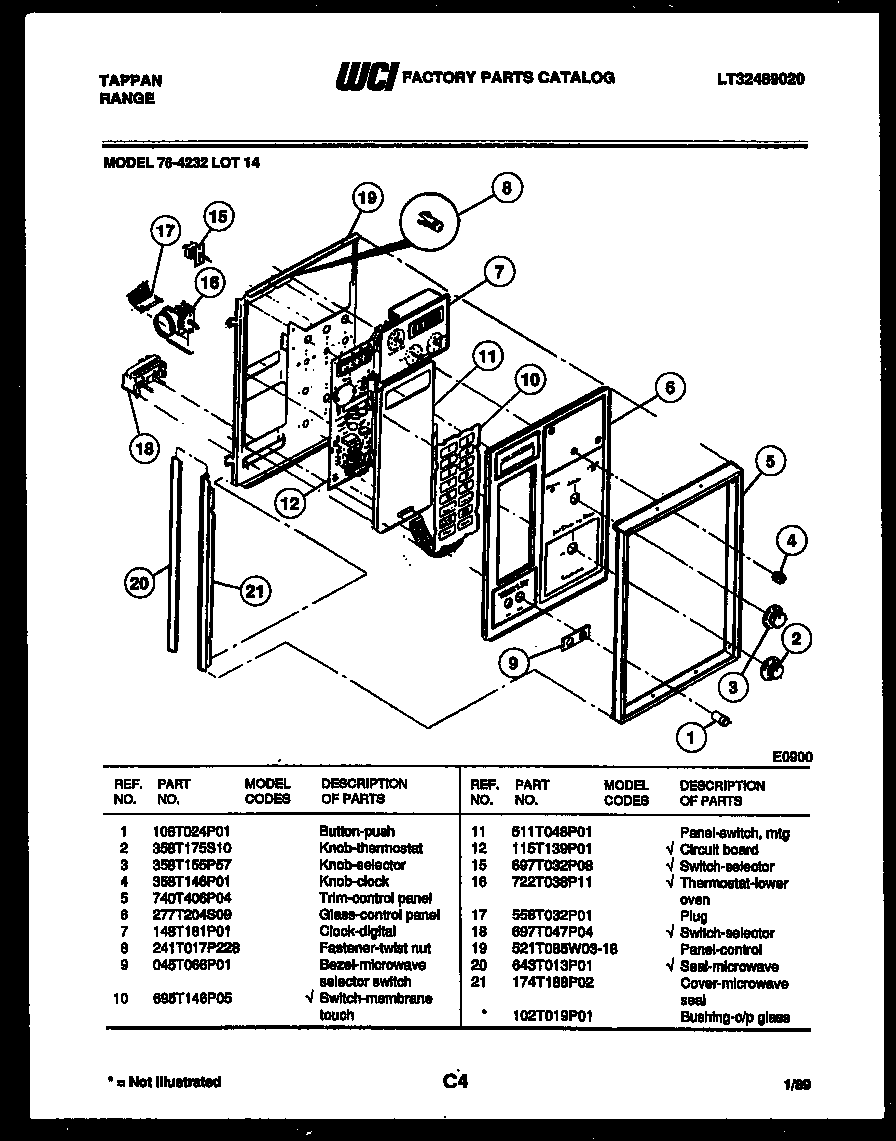

76-4232-23-14 12 – CONTROL PANEL

Products

Position	Product
*20403	BUSHING C/P
1	WCI 106T024P01
2	WCI 358T175S10
3	WCI 358T155P57
4	KNOB-CLOCK
5	TRIM CONTROL PNL
6	WCI 277T204S09
7	WCI 148T181P01
8	FASTENER, CLOCK
9	WCI 045T066P01
10	WCI 695T146P05
11	PANEL SWITCH
12	CIRCUIT BRD. PRINT.
15	WCI 697T032P08
16	WCI 722T038P11
17	PLUG DISCON 9 PIN
18	SWITCH ON-OFF
19	WCI 521T085W03-18
20	SEAL
21	COVER, SEAL
