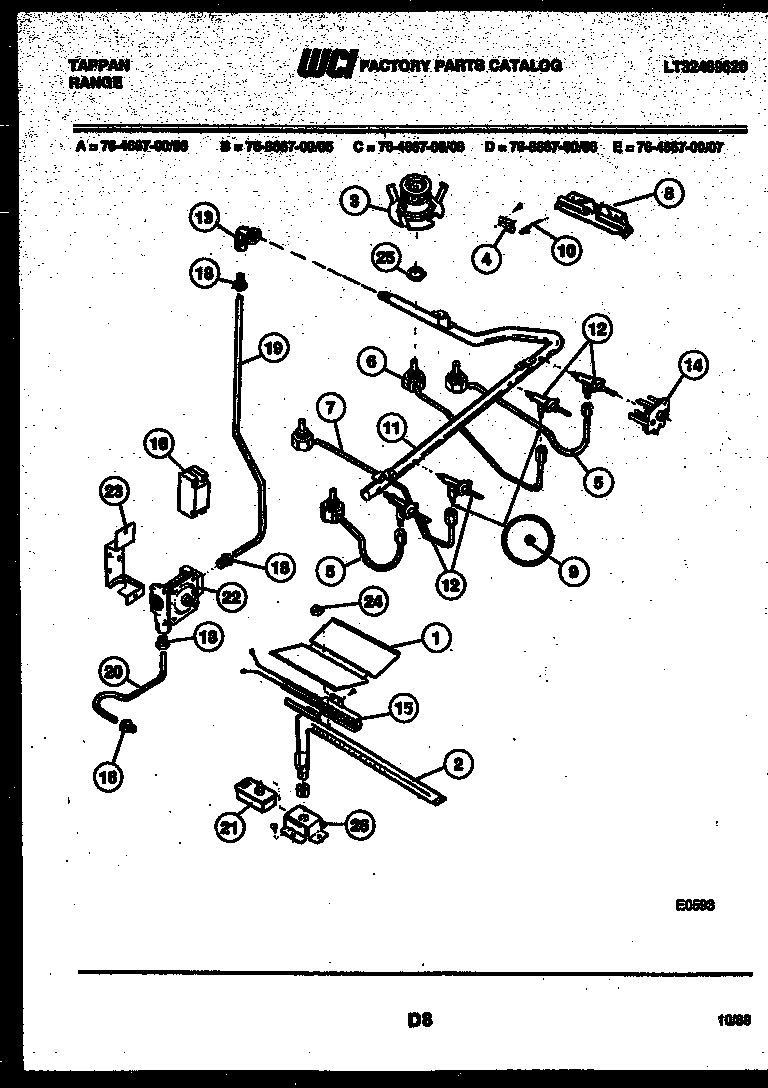

76-4667-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

76-4667-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

76-4667-00-05 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*32513WASHER-BLACK
*32513WCI 3051420
*325135300809968 Frigidaire Dishwasher P-1 Washer
1WCI 3131327
2WCI 3131439
3WCI 079T032S02
4WCI 3018617
5BURNER TUBE-RF & LF
6WCI 079T033H02
7WCI 079T033H03
8WCI 136T355W03
9WCI 247T074P01
10IGNITER-TOP BURNER (4)
11WCI 3131440
12WCI 3017846
13ELBOW 1/2 NP TO 9/16-24
13ANUT COMPRESSN (4)
14316035200 Frigidaire Ignition Switch
155303935066 Frigidaire Oven Flat Igniter 17" Leads
165303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
18FITTING-LOXIT (8)
19TUBE-REGUL TEE
20TUBE – ALUM 3/8
213203459 Frigidaire Oven Range Dual Gas Safety Valve
225303935125 Frigidaire Pressure Regulator
23316091600 Frigidaire Oven Bracket
245303013272 Frigidaire Oven Nut
25NUT SPECIAL
26BRKT.-VALVE
