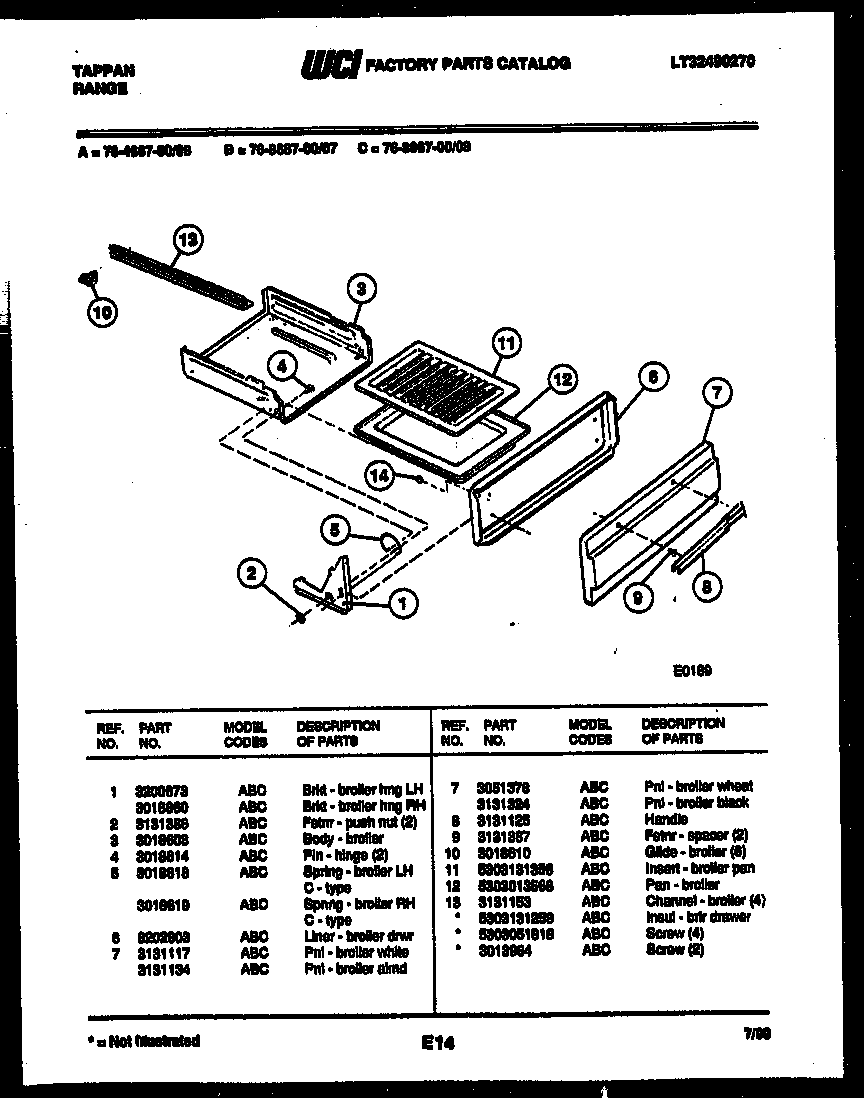

76-4667-00-08 05 – BROILER DRAWER PARTS

76-4667-00-08 05 – BROILER DRAWER PARTS

Written by

in

76-4667-00-08 05 – BROILER DRAWER PARTS

Products

PositionProduct
*38895INSULATION, BROILER DRAWER
*388955303300265 Frigidaire Oven Screw
*38896SCREW-PNL ASSY (2)
1WCI 3018860
1WCI 3200673
2WCI 3131386
3DRAWER-BROILER
4PIN, HINGE (2)
5SPRING-BROILER, RH
5WCI 3018618`
6WCI 3202803
7PANEL, DRWR., BLACK
7PNL DRAWER WHEAT
7PANEL – BROILER ALMD
7PNL-DRAWER (WHTE)
8WCI 3131125
9FSTNR, SPACER (2)
10GLIDE-DRAWER, REAR
11WCI 5303131356
12PAN-BROILER
13WCI 3131153
