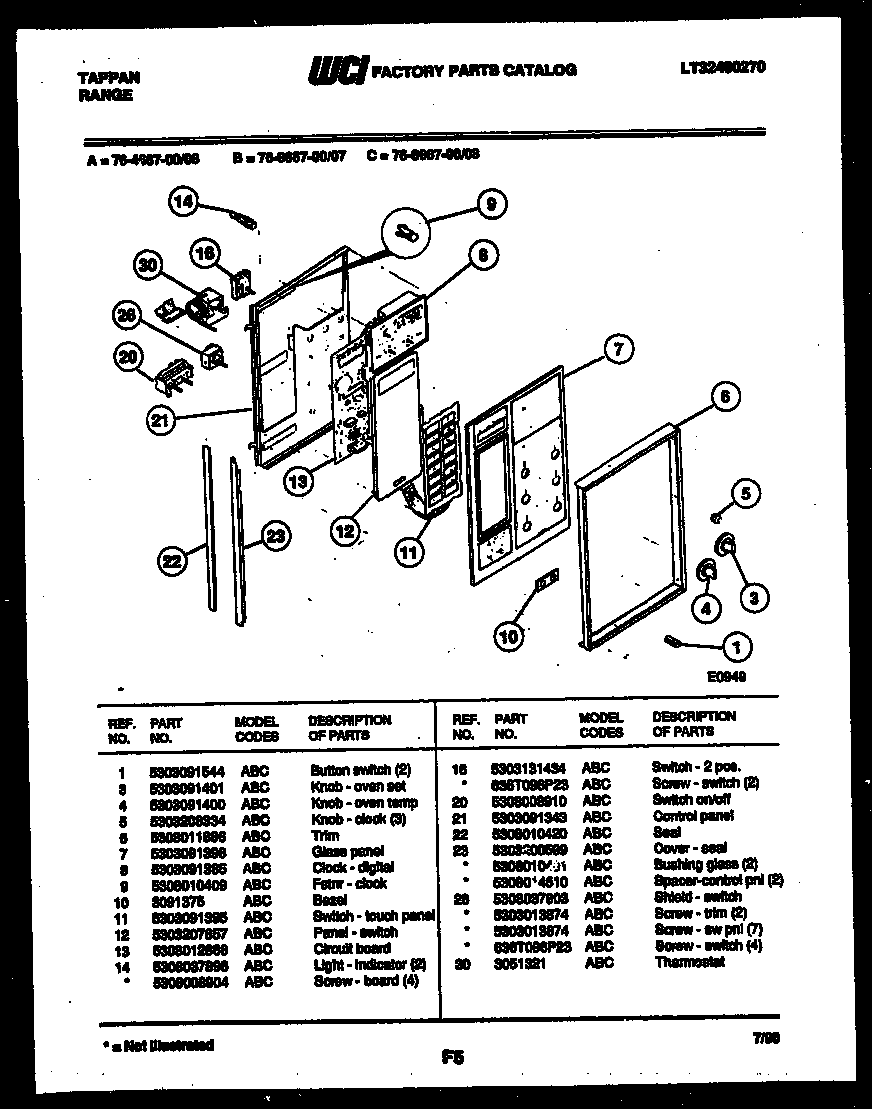

76-4667-00-08 08 – CONTROL PANEL

76-4667-00-08 08 – CONTROL PANEL

Written by

in

76-4667-00-08 08 – CONTROL PANEL

Products

PositionProduct
1BUTTON (2)
3WCI 5303091401
4WCI 5303091400
5WCI 5303208334
6TRIM CONTROL PNL
7WCI 5303091398
8WCI 5303091385
9FASTENER – CLOCK
10WCI 3091375
11SWITCH TOUCH MEMBRANE
12WCI 5303207857
13WCI 5308012868
14WCI 5308037896
14AWCI 5308008904
16WCI 5303131434
20WCI 5308008910
21WCI 5303091343
22WCI 5308010420
23WCI 5303200599
23AWCI 5308010401
23BSPACER – WRAPPER
26WCI 5308037903
26BSCREW SW PNL. (7)
26C5303288565 Frigidaire Screw
30THERMO OVN-LOWER
