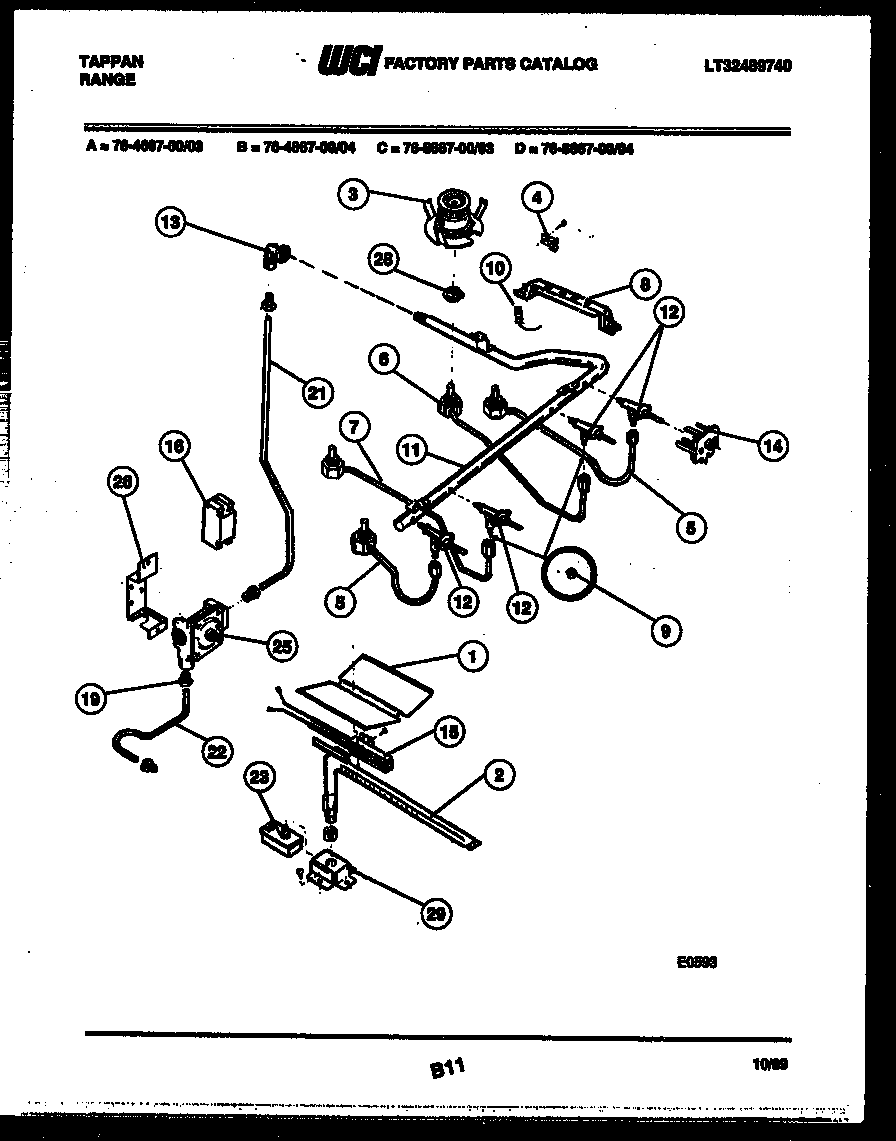

76-4667-23-03 06 – BURNER, MANIFOLD AND GAS CONTROL

76-4667-23-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

76-4667-23-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*347805300809968 Frigidaire Dishwasher P-1 Washer
*34780WASHER-BLACK
*34780WCI 3051420
1WCI 3131327
2WCI 3131439
3WCI 079T032S02
4RETAINER IGNITER
5BURNER TUBE-RF & LF
6WCI 079T033H02
7WCI 079T033H03
8WCI 072T834F02
9WCI 247T074P01
10IGNITER-TOP BURNR (4)
11WCI 3131440
12WCI 3017846
13ANUT COMPRESSN (4)
13ELBOW 1/2 NP TO 9/16-24
14316035200 Frigidaire Ignition Switch
155303935066 Frigidaire Oven Flat Igniter 17" Leads
165304505695 Frigidaire Oven Module
19FITTING-LOXIT (8)
21TUBE-REGUL TEE
22TUBE – ALUM 3/8
233203459 Frigidaire Oven Range Dual Gas Safety Valve
255303935125 Frigidaire Pressure Regulator
26316091600 Frigidaire Oven Bracket
275303013272 Frigidaire Oven Nut
28NUT SPECIAL
29BRKT.-VALVE
