76-4667-66-04 09 – CONTROL PANEL – Aparts

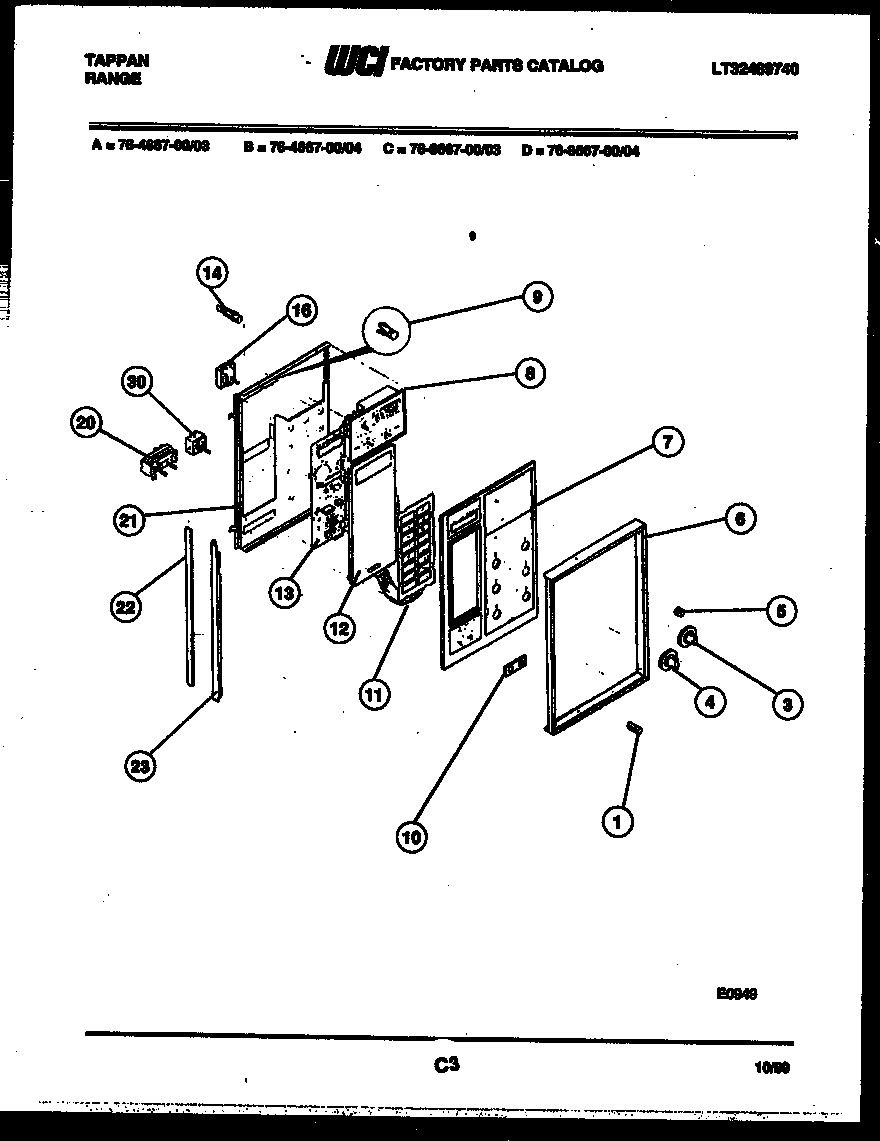

76-4667-66-04 09 – CONTROL PANEL

Products

Position	Product
1	BUTTN PUSH ON-OFF (2)
3	WCI 3091401
4	KNOB-THERMO LOWR
5	WCI 358T201P01
6	TRIM CONTROL PNL
7	WCI 3091398
8	WCI 3091385
9	FASTENER, CLOCK
10	WCI 3091375
11	SWITCH TOUCH MEMBRANE
12	PANEL SWITCH
13	CIRCUIT BRD. PRINT.
14A	SCREW BOARD (4)
14	INDICATOR LIGHT (4)
16	WCI 697T075P01
20	SWITCH ON-OFF
21	WCI 3091343
22	SEAL
23B	SPACER - CONTROL PNL (2)
23	WCI 174T264P03
23C	WCI 657T010F01
23E	SCREW SW PNL. (7)
23F	5303288565 Frigidaire Screw
23A	BUSHING C/P
30	THERMO-OVEN LOWER
