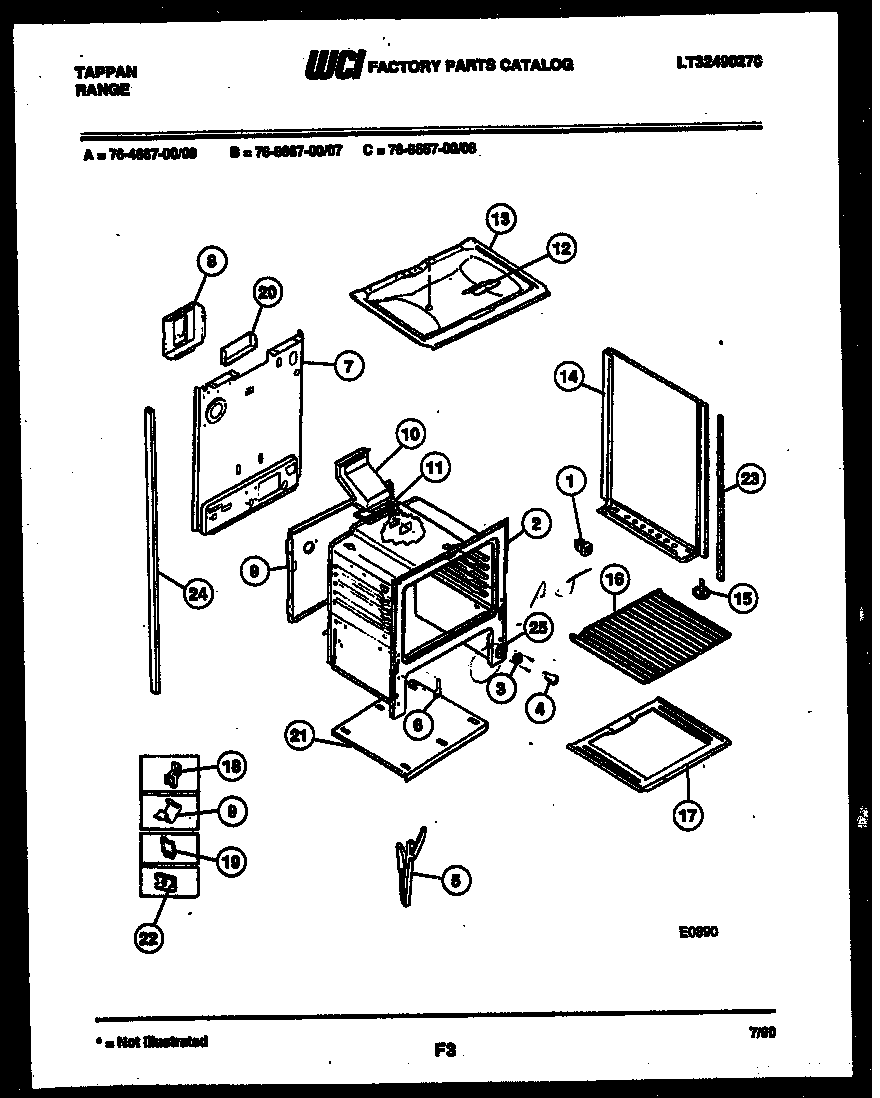

76-4667-66-08 07 – LOWER BODY PARTS

76-4667-66-08 07 – LOWER BODY PARTS

Written by

in

76-4667-66-08 07 – LOWER BODY PARTS

Products

PositionProduct
*38904WCI 3015371
*38904FASTNR-LEVEL LEG (4)
*38904WCI 0807961
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5CHAN-DOOR HINGE (2)
6WCI 3131570
7WCI 3203082
8WCI 3131660
9CLIP-WIRE
10WCI 3131904
11316542102 Frigidaire Flue Gasket
12WCI 08067757
13WCI 3011597
14PNL B/S-RH (WHEAT)
14PNL B/S – BLACK LH
14PNL B/S-LH (WHEAT)
14PNL B/S – BLACK RH
15SCREW-LEVELING
16316067902 Frigidaire Oven Rack
17AINSULATION, OVEN WRAPPER
17BINSUL – OVEN BACK (NON-ILLUSTRATED)
17BTTM-OVEN
185303284616 Frigidaire Range Bulb Clip Thermostat
18AWCI 3200594
20WCI 3131348
20B316064600 Frigidaire Oven Support
20A3131903 Frigidaire Door/Drawer Bumper
21WCI 3131180
21ACOVER-POWER CORD, (NON-ILLUSTRATED)
223203010 Frigidaire Clip
23TRIM – VERTICAL B/S (2)
24TUBE-POST LH
24ACOVER-IGNITOR
24BCOVER-OVEN FRONT
24DANTI-TIP KIT (NOT ILLUSTRATED)
24C316282700 Frigidaire Oven Screw
24WCI 5303208642
25WCI 3051511
