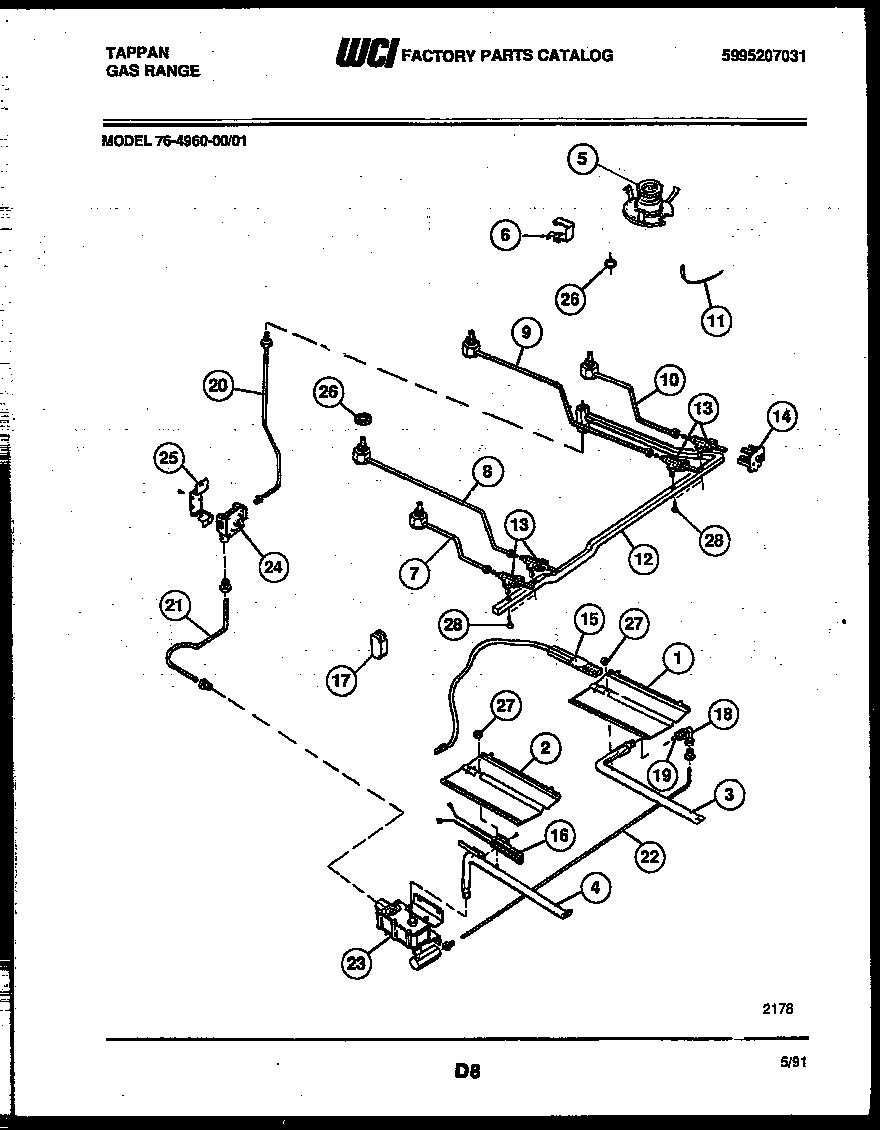

76-4960-00-01 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER TOP (4)
6	WCI 3018617
7	TUBE-BURNER, LF
8	TUBE-BURNER, LR
9	TUBE-BURNER, RR
10	TUBE-BURNER, RF
11	IGNITER-TOP BURNER (4)
12	WCI 5303271924
13	VALVE TOP-3 POS
14	316035200 Frigidaire Ignition Switch
15	5303935068 Frigidaire Flat Igniter
16	5303935066 Frigidaire Oven Flat Igniter 17" Leads
17	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
18	WCI 08067979
19	NUT
20	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
21	TUBE-VALVE TO REGUL
22	TUBE-VALVE TO MIXER ELBOW
23	5303208499 Frigidaire Safety Gas Valve
24	5303935125 Frigidaire Pressure Regulator
25	316091600 Frigidaire Oven Bracket
26	NUT, SPECIAL
27	5303013272 Frigidaire Oven Nut
28	316048200 Frigidaire Oven Screw
