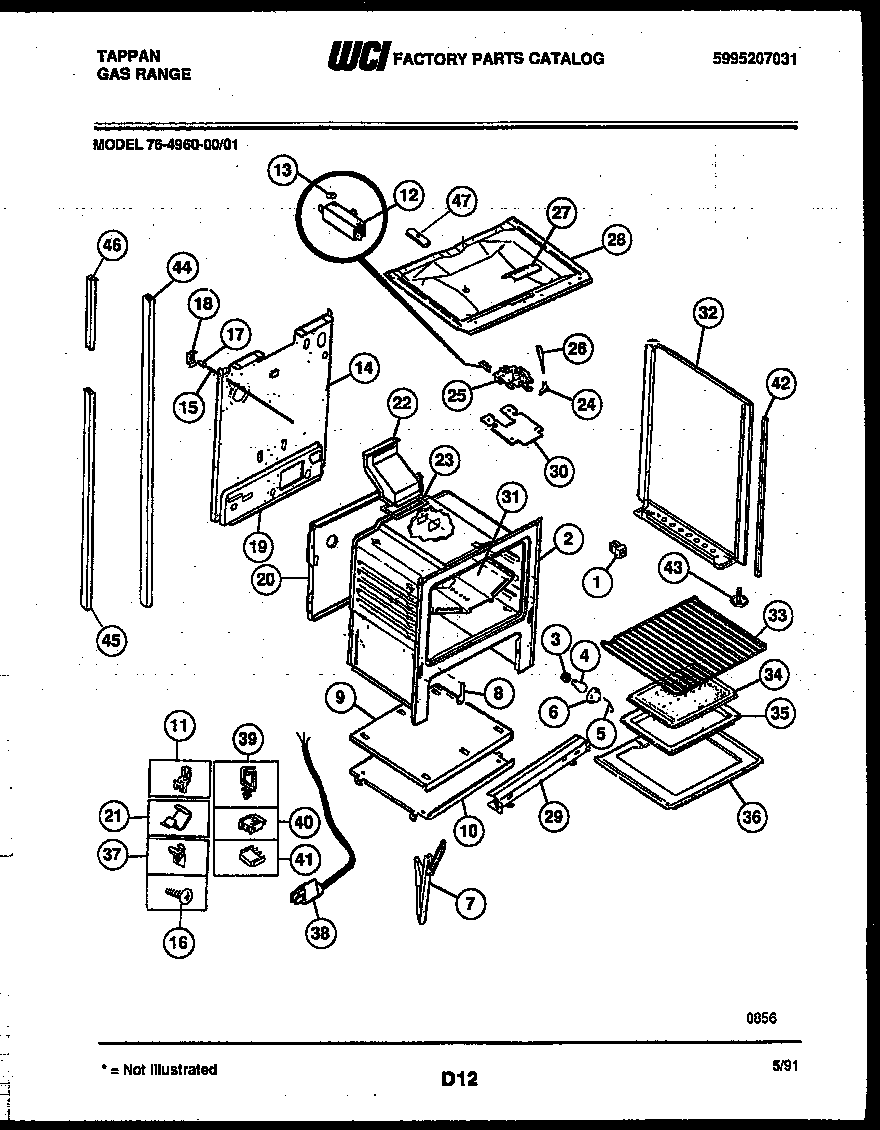

76-4960-00-01 08 – LOWER BODY PARTS

Products

Position	Product
*53402	WCI 5303269971
*53401	08067973 Frigidaire 0 Insulation
*53401	SHIELD-LATCH
*53401	INSULATION OVEN BACK (NON-ILLUSTRATED)
*53401	WCI 08068018
*53401	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*53402	ANTI-TIP KIT (NOT ILLUSTRATED)
*53401	3131903 Frigidaire Door/Drawer Bumper
*53401	INSULATION, OVEN WRAPPER
*53401	INSULATION, OVEN TOP
*53402	PLATE-RECEPTACLE
*53402	WCI 597T040P01
*53402	WIRING DIAGRAM
*53401	316064600 Frigidaire Oven Support
*53400	STUD SPACER (2) (NON-ILLUSTRATED)
*53400	WCI 08013188
*53400	WCI 08067992
*53403	WCI 19100240004
*53400	SHIELD-LATCH (NON-ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	WIRE, GLASS RETAINER
6	5304524341 Frigidaire Lens
7	WCI 316007002
8	WCI 3131570
9	SHIELD-HEAT UPPER
10	WCI 3131313
11	5303284616 Frigidaire Range Bulb Clip Thermostat
12	WCI 3131672
13	FSTNR-PUSH ON
14	WCI 3203082
15	WCI 5303209316
16	316282700 Frigidaire Oven Screw
17	SWITCH-OVEN LITE DOOR
18	WCI 5303131289
19	WCI 5303269502
20	WCI 08067991
21	CLIP-WIRE
22	WCI 3131931
23	316542102 Frigidaire Flue Gasket
24	WCI 3203218
25	WCI 5303015453
26	WCI 5303131357
27	WCI 08067757
28	WCI 3011597
29	SHIELD-FRONT
30	SHIELD-OVN TOP
31	WCI 3200836
32A	WCI 5303269545
32	PNL-B/S-RH-WHITE
32	WCI 5303269543
32A	PNL-B/S-LH-WHITE
33	316067902 Frigidaire Oven Rack
34	WCI 5303131356
35	PAN-BROILER
36	BTTM-OVEN
37	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
38	WCI 3200594
39	WCI 08067961
40	WCI 5303271660
41	WCI 5303271454
42	TRIM - VERTICAL B/S (2)
43	SCREW-LEVELING
44	WCI 5303269934
45	WCI 5303269933
46	WCI 5303269935
47	WCI 3015371
