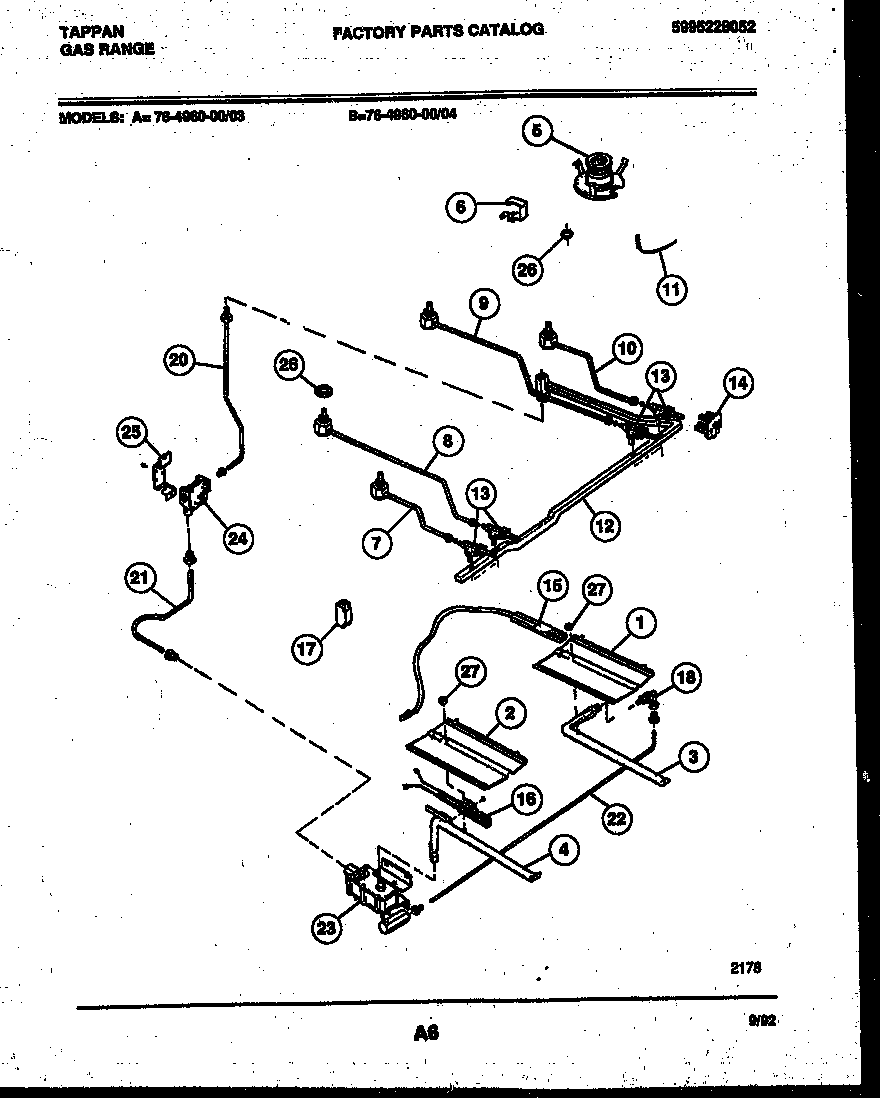

76-4960-00-04 05 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER TOP (4)
6	WCI 3018617
7	WCI 5303283665
8	WCI 5303283668
9	WCI 5303283667
10	WCI 5303283666
11	ELECTRODE
12	WCI 5303271924
13	VALVE-TOP BURNER, 3 POSITION, (4), W/SCREW
14	SWITCH-IGNITER, (4)
15	5303935068 Frigidaire Flat Igniter
16	5303935066 Frigidaire Oven Flat Igniter 17" Leads
17	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
18	WCI 08067979
20	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
21	TUBE-VALVE TO REGUL
22	TUBE-VALVE TO MIXER ELBOW
23	5303208499 Frigidaire Safety Gas Valve
24	5303935125 Frigidaire Pressure Regulator
25	316091600 Frigidaire Oven Bracket
26	NUT, SPECIAL
27	5303013272 Frigidaire Oven Nut
