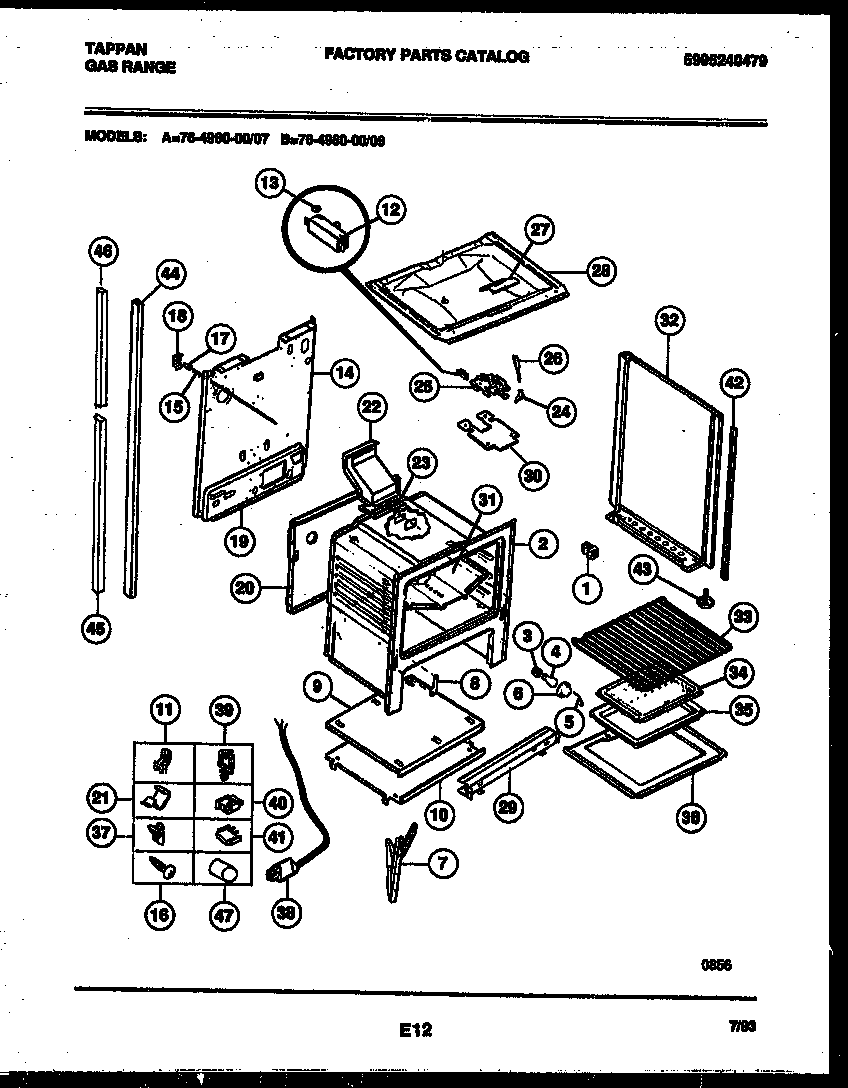

76-4960-00-07 07 – LOWER BODY PARTS

76-4960-00-07 07 – LOWER BODY PARTS

Written by

in

76-4960-00-07 07 – LOWER BODY PARTS

Products

PositionProduct
*86876INSULATION, OVEN WRAPPER
*86878WCI 317005011
*8687608067973 Frigidaire 0 Insulation
*868753131903 Frigidaire Door/Drawer Bumper
*86875316064600 Frigidaire Oven Support
*86875WCI 08013188
*86877ANTI-TIP KIT (NOT ILLUSTRATED)
*86878WIRING DIAGRAM
*86876SHIELD-LATCH
*86877WIRING DIAGRAM
*86876INSULATION, OVEN TOP
*86875INSULATION OVEN BACK (NON-ILLUSTRATED)
*86874STUD SPACER (2) (NON-ILLUSTRATED)
*86877WCI 3015371
*86876WCI 08068018
*86876SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*86874WCI 08067992
*86875SHIELD-LATCH (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3316116400 Frigidaire Oven Light Socket
4316538904 Frigidaire Oven Lamp Light
5RETAINER-GLASS
65304524341 Frigidaire Lens
7WCI 316007002
8WCI 3131570
9SHIELD-HEAT UPPER
10WCI 3131313
115303284616 Frigidaire Range Bulb Clip Thermostat
12SWITCH-LATCH
13FSTNR-PUSH ON
14WCI 3203082
15WCI 5303209316
16316282700 Frigidaire Oven Screw
17SWITCH-OVEN LITE DOOR
18WCI 5303131289
19SHIELD, REAR WALL
20WCI 316014301
21CLIP-WIRE
22WCI 3131931
23316542102 Frigidaire Flue Gasket
24WCI 3203218
25WCI 5303015453
26WCI 5303131357
27WCI 08067757
28WCI 3011597
29SHIELD-FRONT
30SHIELD-OVN TOP
31WCI 3200836
32PNL-B/S-RH-WHITE
32PNL-B/S-LH-WHITE
32WCI 5303269543
32WCI 5303269545
33316067902 Frigidaire Oven Rack
34WCI 5303131356
35PAN-BROILER
36BTTM-OVEN
373051162 Frigidaire Oven Range Front Broiler Drawer Glide
38WCI 3200594
39WCI 08067961
40WCI 5303271660
41WCI 5303271454
42TRIM – VERTICAL B/S (2)
43SCREW-LEVELING
43ANUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
44WCI 5303269934
45WCI 5303269933
46WCI 5303269935
47COVER-LIGHT/SWITCH ROD
