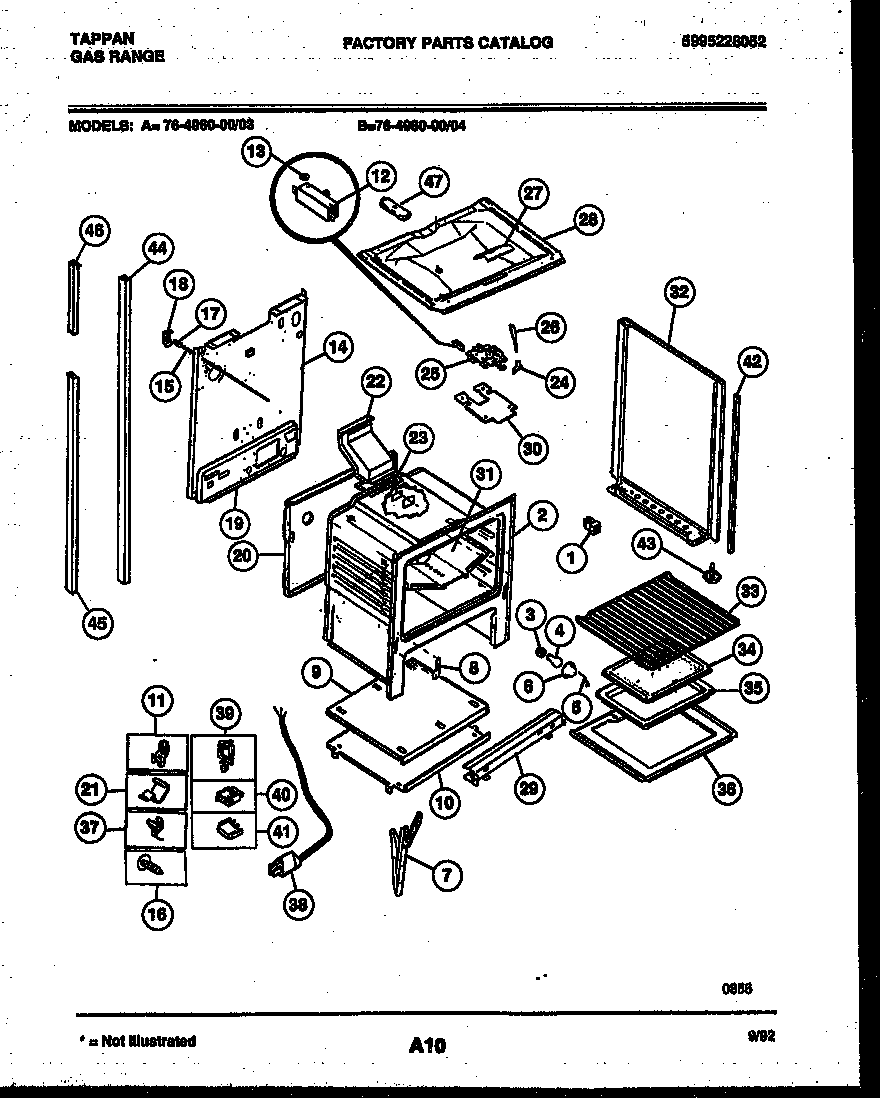

76-4960-23-03 08 – LOWER BODY PARTS

Products

Position	Product
*78857	INSULATION, OVEN TOP
*78857	WCI 08068018
*78856	316064600 Frigidaire Oven Support
*78856	WCI 08013188
*78857	INSULATION OVEN BACK (NON-ILLUSTRATED)
*78857	ANTI-TIP KIT (NOT ILLUSTRATED)
*78857	SHIELD-LATCH
*78856	3131903 Frigidaire Door/Drawer Bumper
*78857	08067973 Frigidaire 0 Insulation
*78857	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*78858	NUT, T,TYPE, LEVELING SCREW (NOT ILLUSTRATED)
*78857	INSULATION, OVEN WRAPPER
*78858	WCI 19100240004
*78856	STUD SPACER (2) (NON-ILLUSTRATED)
*78857	WCI 5303269971
*78856	SHIELD-LATCH (NON-ILLUSTRATED)
*78856	WCI 08067992
*78858	WIRING DIAGRAM
1	SPACER-BODYSIDE, (8)
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	RETAINER-GLASS
6	5304524341 Frigidaire Lens
7	WCI 316007002
8	WCI 3131570
9	SHIELD-HEAT UPPER
10	WCI 3131313
11	5303284616 Frigidaire Range Bulb Clip Thermostat
12	SWITCH-LATCH
13	FSTNR-PUSH ON
14	WCI 3203082
15	WCI 5303269501
16	316282700 Frigidaire Oven Screw
17	SWITCH-OVEN LITE DOOR
18	WCI 5303131289
19	SHIELD, REAR WALL
20	WCI 316014301
21	CLIP-WIRE
22	WCI 3131931
23	316542102 Frigidaire Flue Gasket
24	WCI 3203218
25	WCI 5303015453
26	WCI 5303131357
27	WCI 08067757
28	WCI 3011597
29	SHIELD-FRONT
30	SHIELD-OVN TOP
31	WCI 3200836
32A	WCI 5303269545
32	WCI 5303269543
33	316067902 Frigidaire Oven Rack
34	WCI 5303131356
35	PAN-BROILER
36	BTTM-OVEN
37	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
38	WCI 3200594
39	WCI 08067961
40	WCI 5303271660
41	WCI 5303271454
42	TRIM – VERTICAL B/S (2)
43	SCREW-LEVELING
44	WCI 5303269934
45	WCI 5303269933
46	WCI 5303269935
47	WCI 3015371
