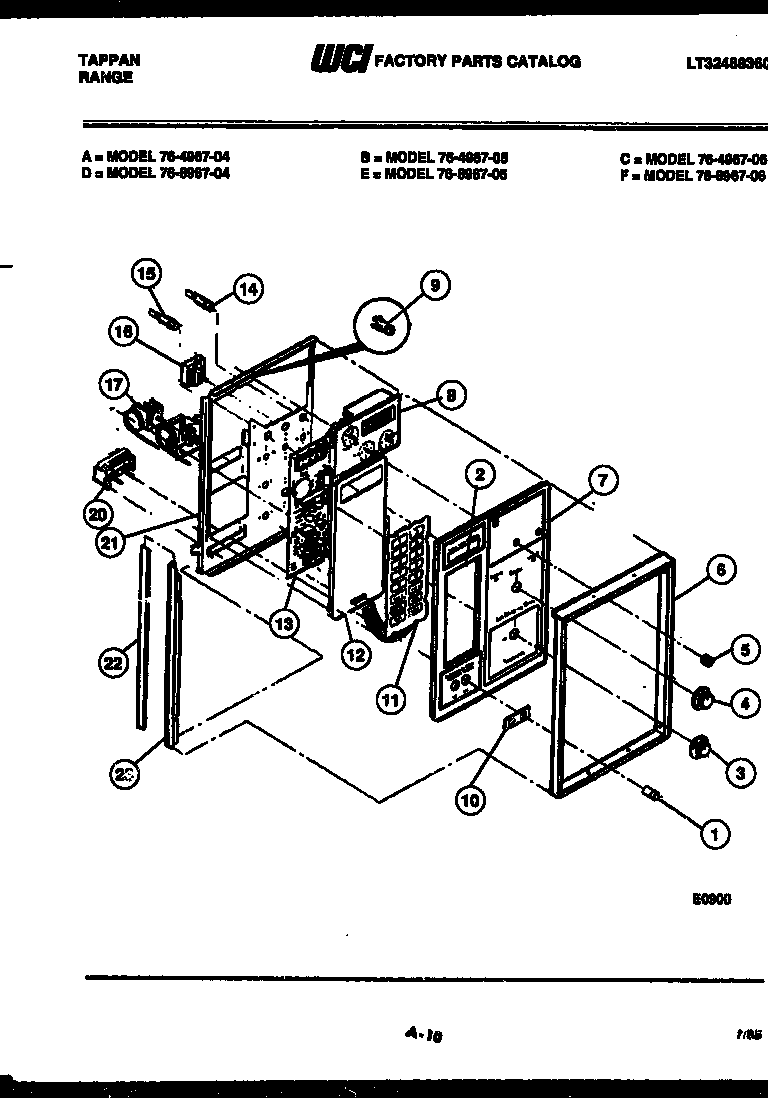

76-4967-00-05 07 – CONTROL PANEL

Products

Position	Product
1	WCI 3091544
2	BEZEL
3	WCI 3091408
4	KNOB-THERMO LOWR
5	WCI 358T201P01
6	TRIM CONTROL PNL
7	WCI 3091409
8	WCI 3091385
9	FASTENER, CLOCK
10	WCI 3091375
11	SWITCH TOUCH MEMBRANE
12	PANEL SWITCH
13	WCI 139T026P02
14	INDICATOR LIGHT (4)
15	SCREW BOARD (4)
16	SWITCH SLCTR-5 POS
17	WCI 3016678
20	SWITCH ON-OFF
21	WCI 3091468
22	SEAL
23	WCI 174T264P03
24	BUSHING C/P
25	SPACER – CONTROL PNL (2)
26	WCI 657T010F01
28	SCREW SW PNL. (7)
29	5303288565 Frigidaire Screw
