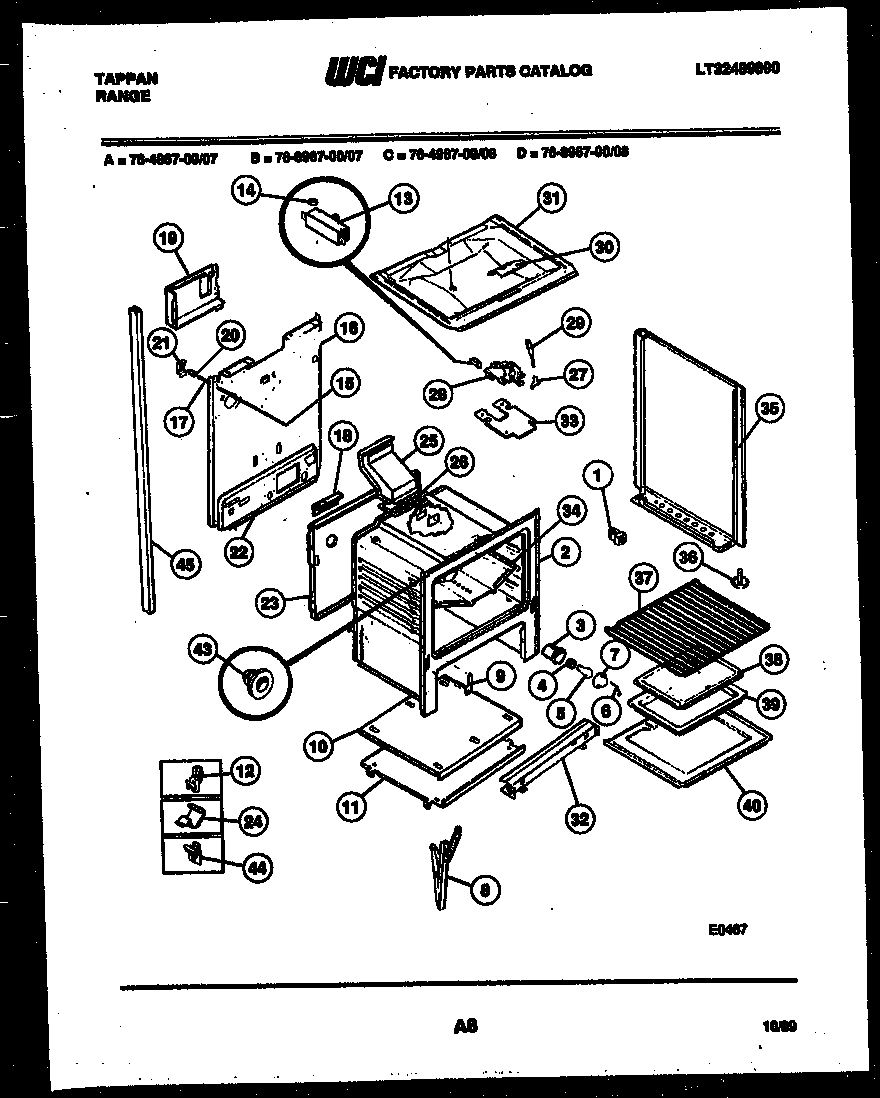

76-4967-00-07 06 – LOWER BODY PARTS

Products

Position	Product
*33938	WCI 3131782
*33939	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*33939	INSULATION, OVEN WRAPPER
1	WCI 665T188P02
3	WCI 3131363
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WCI 3131104
7A	SCREW – CHANNEL MTG (NON-ILLUSTRATED)
7	WCI 3131298
8	WCI 316007002
9	WCI 3131570
10	WCI 3131951
11	WCI 3131313
11A	WCI 655T437F01
12	CLIP-TUBING (2)
13	WCI 3131672
14	WCI 241T001P01
14A	STUD, SPACER (2) (NON-ILLUSTRATED)
15	WCI 174T329P01
15A	WCI 3131585
16	WCI 3131567
17	ROD-LIGHT SWITCH
18	ANGLE LIGHT SWITCH
19	CHANNEL-LIGHT SHLD
20	SWITCH-OVEN LITE DOOR
21	BRKT LIGHT SWITCH
22	WCI 3131590
23	WCI 3131316
24	CLIP, WIRE
25	WCI 3131931
26A	SCREW-SET KNOB MTG (NON-ILLUSTRATED)
26	316542102 Frigidaire Flue Gasket
27	WCI 358T158S02
28	WCI 368T027P04
29	WCI 3131357
30	WCI 3131101
31	WCI 095T030F02-86
32	SHIELD-FRONT
33	SHIELD-OVN TOP
34	WCI 3200836
35A	WCI 3201000
35	PNL B/S-LH (ALMOND)
35A	PNL B/S-RH (ALMOND)
35	B/S-RH-(WHITE)
35A	B/S-LH-(WHITE)
35A	PNL B/S-RH (WHEAT)
35A	WCI 3201001
35	PNL B/S-LH (WHEAT)
36	WCI 636M004P01
37	316067902 Frigidaire Oven Rack
38	WCI 3131356
39	PAN, BROILER
40A	316064600 Frigidaire Oven Support
40B	3131903 Frigidaire Door/Drawer Bumper
40	WCI 058T036F03-86
43C	INSULATION, OVEN TOP
43D	WCI 3131305
43	BUTTON-REMOTE SW
43A	FSTNR-POWER CORD (NON-ILLUSTRATED)
43E	WCI 655T434F01
43B	INSUL OVEN BACK (NON-ILLUSTRATED)
44	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
45	WCI 3051724
45	WCI 3051723
