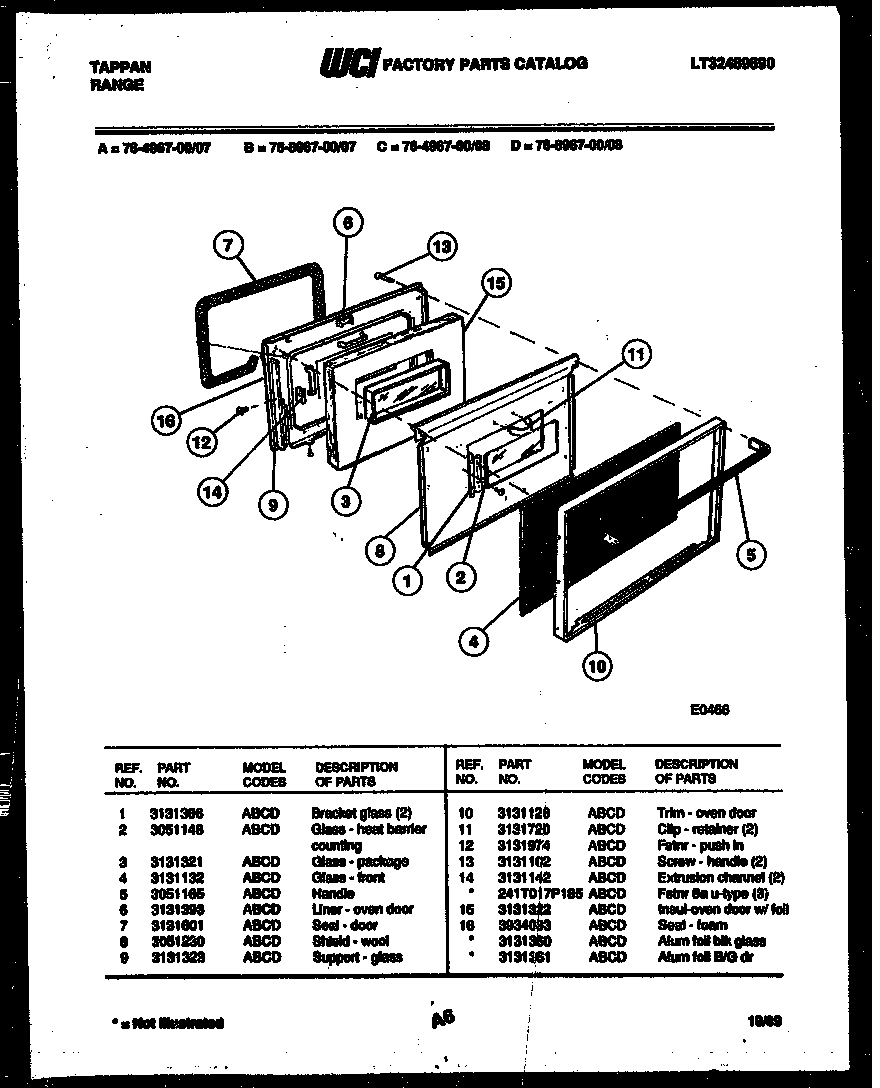

76-4967-00-08 04 – LOWER OVEN DOOR PARTS

Products

Position	Product
*33930	5303208655 Frigidaire Reflector Assembly
*33930	ALUM FOIL-B/G GLASS
1	BRKT GLASS (2)
2	WCI 3051148
3	WCI 3131321
5	WCI 3051165
6	WCI 3131393
7	5303131601 Frigidaire Oven Seal
8	WCI 3051230
9	SUPPORT, GLASS
10	WCI 3131128
11	CLIP-RETAINING
12	FSTNR. SPACER (6)
13	SCREW-HANDLE
14	EXTRUSION-CHANNL
14A	FSTNR 8AU TYPE (3)
15	WCI 3131322
16	SEAL, FOAM (4)
