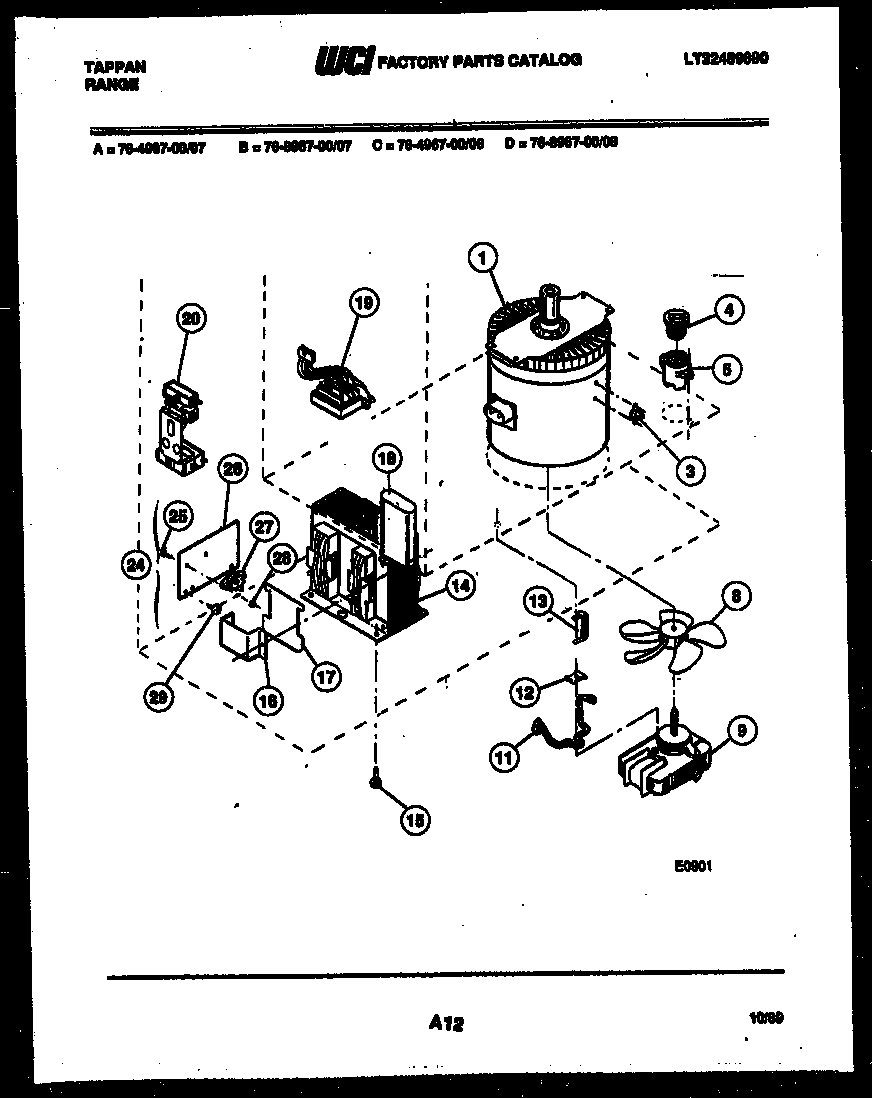

76-4967-00-08 08 – POWER CONTROL

Products

Position	Product
*33950	WCI 299T405S203
*33949	HARNESS MAIN
*33950	HARNESS CONTROL DUPLEX
*33950	HARNESS MAIN
*33950	HARNESS CONTROL DUPLEX
*33950	WCI 603T097P01
1	WCI 423T016P02
1A	NUT (NON-ILLUSTRATED)
3	SWITCH
4	FUSE
5	SOCKET
5A	WCI 636T090P45
5B	WCI 636T074P10
8	BLADE – FAN
9	MOTOR FAN
10	SCREW (8) (NON-ILLUSTRATED)
11	ROD MOTOR (2)
12	CHANNEL
13	WCI 3091303
14	TRANSFORMER HV
15	SCREW, TRANS (4)
16	RETAINER
17	SHIELD CAPACITOR
18	WCI 157T157P02
19	TRANSFORMER LV
20C	WCI 612T090F01
20B	WCI 636T095P16
20A	BAFFLE TRANSFORMER (NON-ILLUSTRATED)
20	SWITCH KIT (+)
24	TRIAC, HEAT SINK
25	WCI 636T095P47
26	WCI 554T338F02
27	NUT (2)
28	WCI 742T005P01
29	WCI 636T069P54
