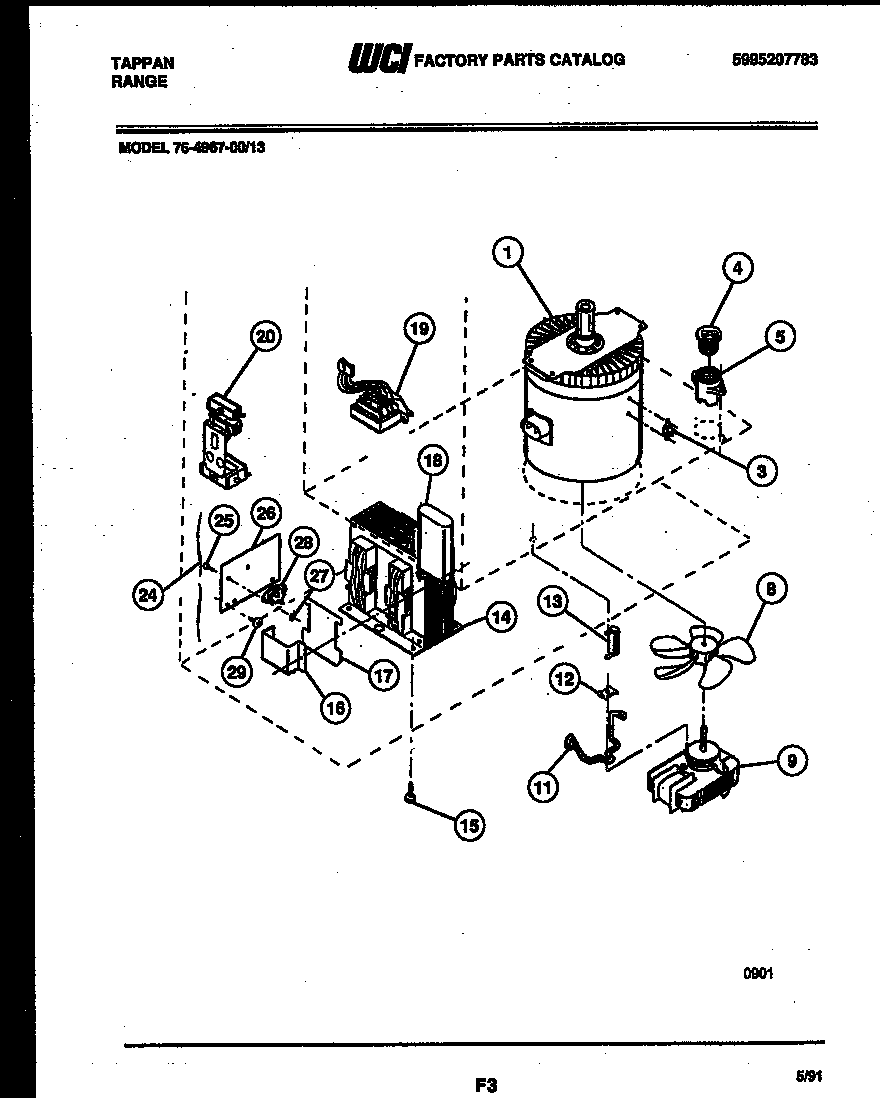

76-4967-00-13 08 – POWER CONTROL

Products

Position	Product
*50851	WCI 3015404
*50850	WCI 5303091339
*50850	WCI 5308010494
*50851	RELAY
1A	WCI 5308008918
1	WCI 5303204035
3	SWITCH
4	FUSE
5	SOCKET
5B	SCREW - SWITCH (2) (NON-ILLUSTRATED)
5A	WCI 636T090P45
8	WCI 5303011668
9	WCI 5303011677
9A	SCREW-WRAPPER (13)
11	ROD MOTOR (2)
12	CHANNEL
13	DIODE HIGH VOLTAGE
14A	SCREW - TRANS (4) (NON-ILLUSTRATED)
14	TRANSFORMER H.V.
16	RETAINER
17	SHIELD CAPACITOR
18	CAPACITOR - HV
19	WCI 5308010486
20C	WCI 5308012068
20B	WCI 636T095P17
20	SWITCH KIT
20A	BAFFLE TRANSFORMER (NON-ILLUSTRATED)
25	SCREW - TRIAC
26	WCI 08010489
27	NUT (2)
28	TRIAC
29	WCI 5308008971
