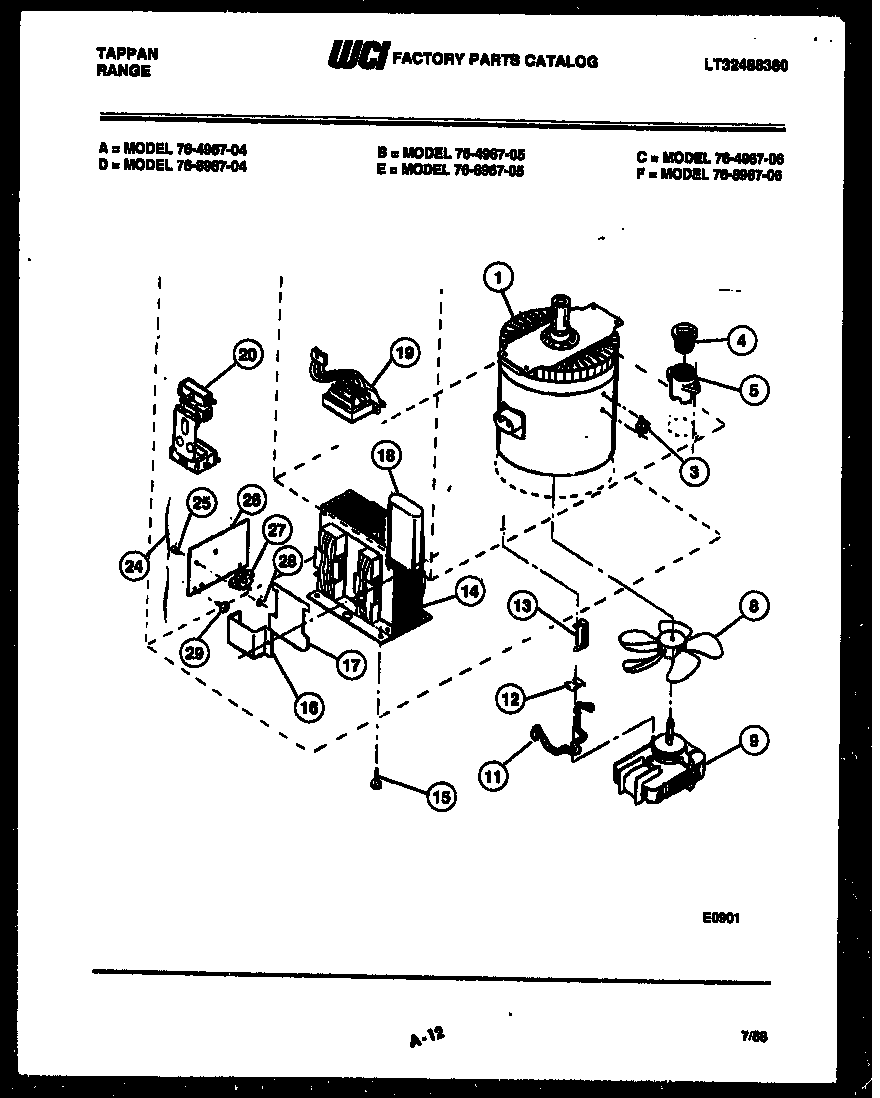

76-4967-18-05 08 – POWER CONTROL

Products

Position	Product
*16216	WCI 299T405S203
*16216	HARNESS MAIN
*16216	HARNESS CONTROL DUPLEX
1	WCI 423T016P02
2	NUT (NON-ILLUSTRATED)
3	SWITCH
4	FUSE
5	SOCKET
6	WCI 636T090P45
7	WCI 636T074P10
8	BLADE - FAN
9	MOTOR FAN
10	SCREW (8) (NON-ILLUSTRATED)
11	ROD MOTOR (2)
12	CHANNEL
13	WCI 3091303
14	TRANSFORMER HV
15	SCREW, TRANS (4)
16	RETAINER
17	SHIELD CAPACITOR
18	WCI 157T157P02
19	TRANSFORMER LV
20	SWITCH KIT (+)
21	BAFFLE TRANSFORMER (NON-ILLUSTRATED)
22	WCI 636T095P16
23	WCI 612T090F01
24	TRIAC, HEAT SINK
25	WCI 636T095P47
26	WCI 554T338F02
27	NUT (2)
28	WCI 742T005P01
29	WCI 636T069P54
