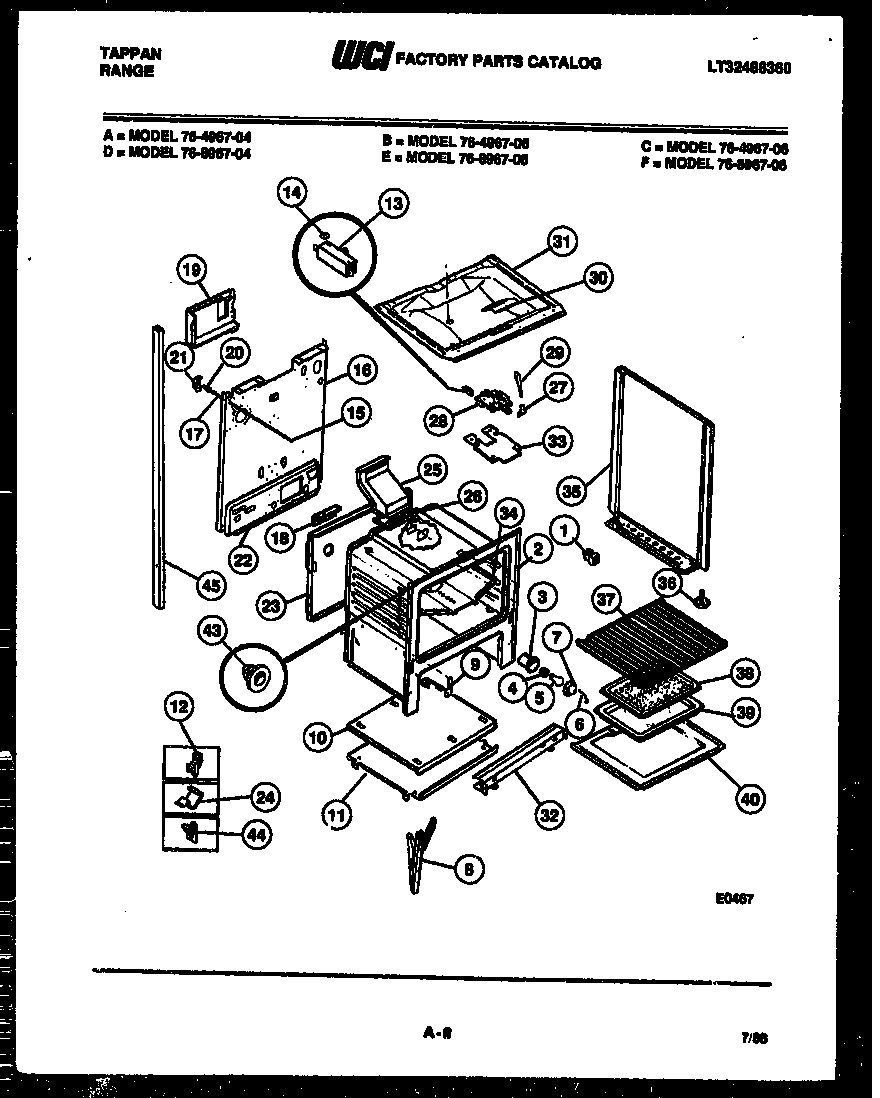

76-4967-18-06 06 – BODY PARTS

76-4967-18-06 06 – BODY PARTS

Written by

in

76-4967-18-06 06 – BODY PARTS

Products

PositionProduct
*16209WCI 3131782
*16209ALUM-FOIL-MUST BE USED WHEN REPLACING BODYSIDE
1WCI 665T188P02
3WCI 3131363
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WCI 3131104
7WCI 3131298
7ASCREW – CHANNEL MTG (NON-ILLUSTRATED)
8WCI 316007002
9WCI 3131570
10WCI 3131951
11AWCI 655T437F01
11WCI 3131313
12CLIP-TUBING (2)
13WCI 3131672
14WCI 241T001P01
14ASTUD, SPACER (2) (NON-ILLUSTRATED)
15WCI 174T329P01
15AWCI 3131585
16WCI 3131567
17ROD-LIGHT SWITCH
18ANGLE LIGHT SWITCH
19CHANNEL-LIGHT SHLD
20SWITCH-OVEN LITE DOOR
21BRKT LIGHT SWITCH
22WCI 3131590
23WCI 3131316
24CLIP, WIRE
25WCI 3131931
26BSCREW-SET KNOB MTG (NON-ILLUSTRATED)
26AWCI 657T018P02
26316542102 Frigidaire Flue Gasket
27WCI 358T158S02
28WCI 368T027P04
29WCI 3131357
30WCI 3131101
31WCI 095T030F02-86
32SHIELD-FRONT
33SHIELD-OVN TOP
34WCI 3131315
35PANEL B/S-LH BLACK
35PANEL B/S-RH BLACK
36WCI 636M004P01
37316067902 Frigidaire Oven Rack
38WCI 3131356
39PAN, BROILER
40WCI 058T036F03-86
40A316064600 Frigidaire Oven Support
40B3131903 Frigidaire Door/Drawer Bumper
43BUTTON-REMOTE SW
43AFSTNR-POWER CORD (NON-ILLUSTRATED)
43BINSUL OVEN BACK (NON-ILLUSTRATED)
43EWCI 655T434F01
43CINSULATION, OVEN TOP
43DWCI 3131305
443051162 Frigidaire Oven Range Front Broiler Drawer Glide
45WCI 3051723
46WCI 3051724
