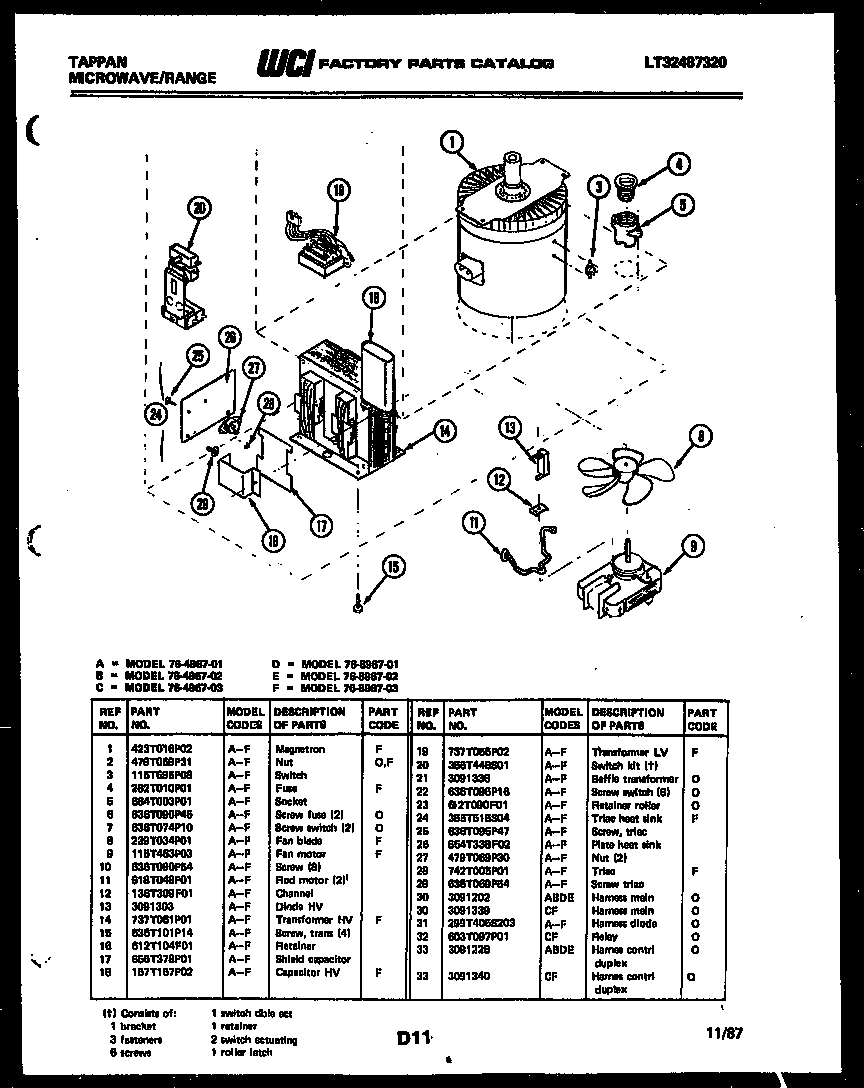

76-4967-23-03 09 – POWER CONTROL

Products

Position	Product
1	WCI 423T016P02
2	NUT (NON-ILLUSTRATED)
3	SWITCH
4	FUSE
5	SOCKET
6	WCI 636T090P45
7	WCI 636T074P10
8	BLADE – FAN
9	MOTOR FAN
10	SCREW (8) (NON-ILLUSTRATED)
11	ROD MOTOR (2)
12	CHANNEL
13	WCI 3091303
14	TRANSFORMER HV
15	SCREW, TRANS (4)
16	RETAINER
17	SHIELD CAPACITOR
18	WCI 157T157P02
19	TRANSFORMER LV
20	SWITCH KIT (+)
21	BAFFLE TRANSFORMER (NON-ILLUSTRATED)
22	WCI 636T095P16
23	WCI 612T090F01
24	TRIAC, HEAT SINK
25	WCI 636T095P47
26	WCI 554T338F02
27	NUT (2)
28	WCI 742T005P01
29	WCI 636T069P54
30	HARNESS MAIN
31	WCI 299T405S203
32	WCI 603T097P01
33	HARNESS CONTROL DUPLEX
