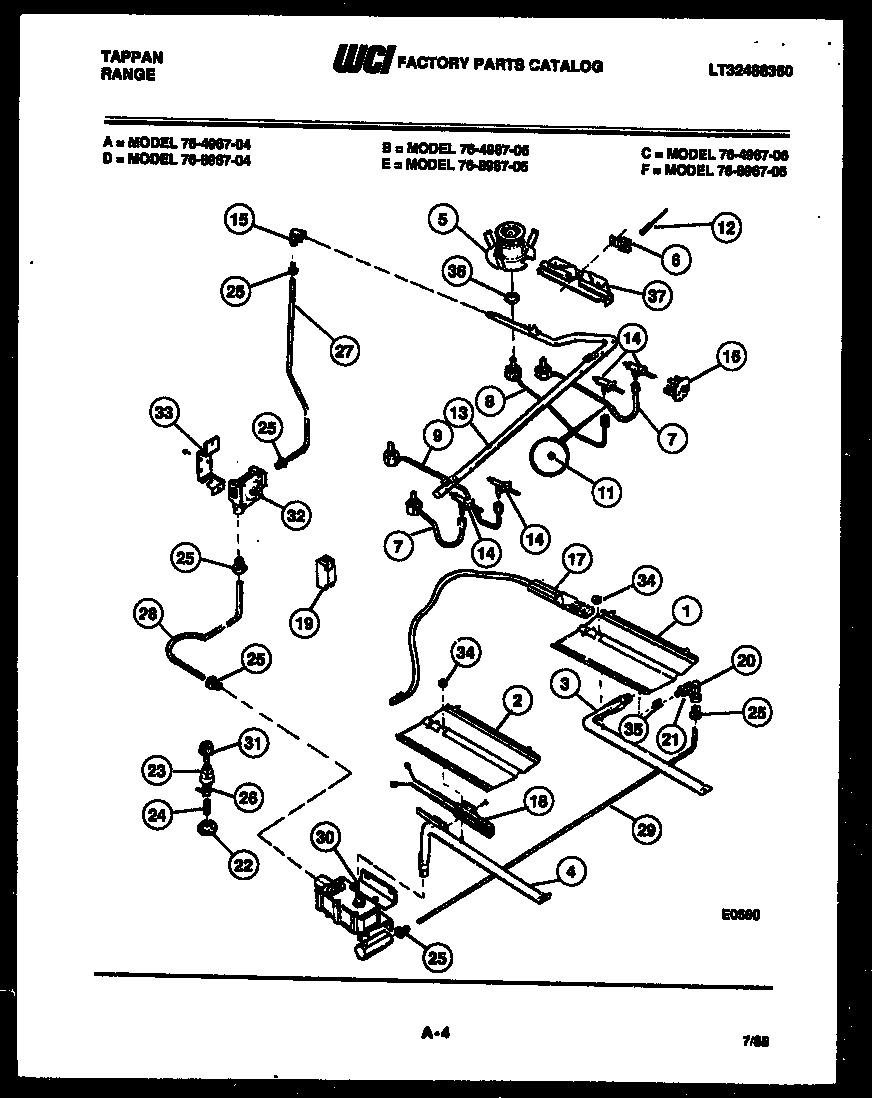

76-4967-23-06 03 – BURNER, MANIFOLD AND GAS CONTROL

76-4967-23-06 03 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

76-4967-23-06 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*16200WCI 3051420
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4WCI 3131290
5WCI 079T032S02
6RETAINER ELECTROS
7BURNER TUBE-RF & LF
8WCI 079T033H02
9WCI 079T033H03
11WCI 247T074P01
12IGNITER-TOP BURNR (4)
13WCI 3131440
14WCI 3017846
15ANUT COMPRESSN (4)
15ELBOW 1/2 NP TO 9/16-24
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195304505695 Frigidaire Oven Module
20WCI 455T008P02
21NUT
22NUT FUSE
23SEAL “O“RING
24FUSE, BUSS
25FITTING-LOXIT (8)
26RECEPTICLE FUSE
27TUBE-REGUL TEE
28TUBE-VALVE TO REGUL
29TUBE-VALVE TO MIXER ELBOW
30BWASHER-BLACK
30A5300809968 Frigidaire Dishwasher P-1 Washer
305303208499 Frigidaire Safety Gas Valve
31CAP FUSE
325303935125 Frigidaire Pressure Regulator
33316091600 Frigidaire Oven Bracket
345303013272 Frigidaire Oven Nut
35SPUD NO 50
36NUT SPECIAL
36ASPACER-BAFFLE (2) (NON-ILLUSTRATED)
37WCI 136T355W03
