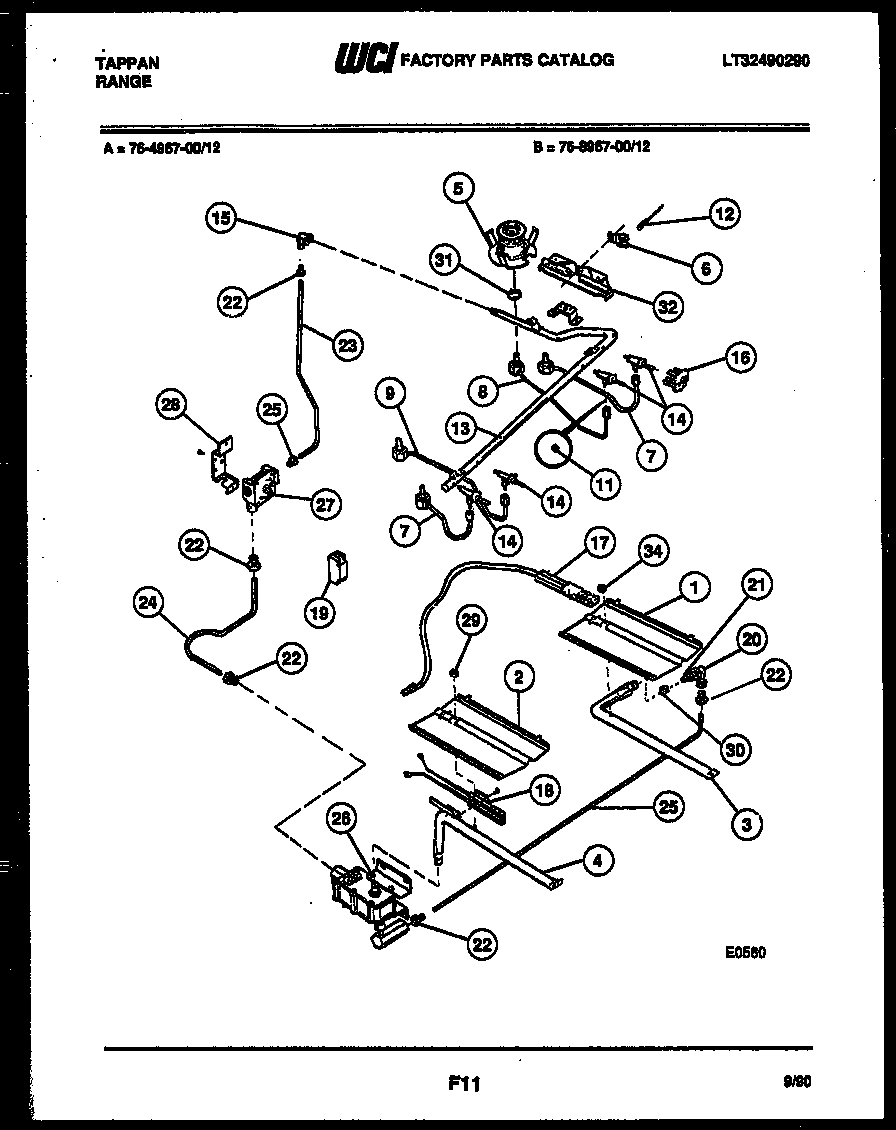

76-4967-32-12 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*40732	WCI 3051420
1	WCI 5303210379
2	BAFFLE-OVN BURNER
3	WCI 08067935
4	WCI 3131290
5	BURNER TOP (4)
6	WCI 3018617
7	BURNER TUBE-RF & LF
8	WCI 5303011569
9	WCI 5303011570
11	FERRULE (4)
12	IGNITER-TOP BURNER (4)
13	WCI 3131440
14	VALVE 3 POS (4)
15	ELBOW 1/2 NP TO 9/16-24
15A	NUT COMPRESSN (4)
16	316035200 Frigidaire Ignition Switch
17	5303935068 Frigidaire Flat Igniter
18	5303935066 Frigidaire Oven Flat Igniter 17" Leads
19	5303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
20	WCI 5303208640
21	NUT
22A	WCI 597T040P01
22	FITTING-LOXIT (8)
23	TUBE-ALUM 3/8 REG/MANIFOLD PIPE
24	TUBE-VALVE TO REGUL
25	TUBE-VALVE TO MIXER ELBOW
26	5303208499 Frigidaire Safety Gas Valve
26A	5300809968 Frigidaire Dishwasher P-1 Washer
26B	WASHER-BLACK
27	5303935125 Frigidaire Pressure Regulator
28	316091600 Frigidaire Oven Bracket
29	5303013272 Frigidaire Oven Nut
30	WCI 08068015
31	NUT, SPECIAL
32	WCI 3206267
