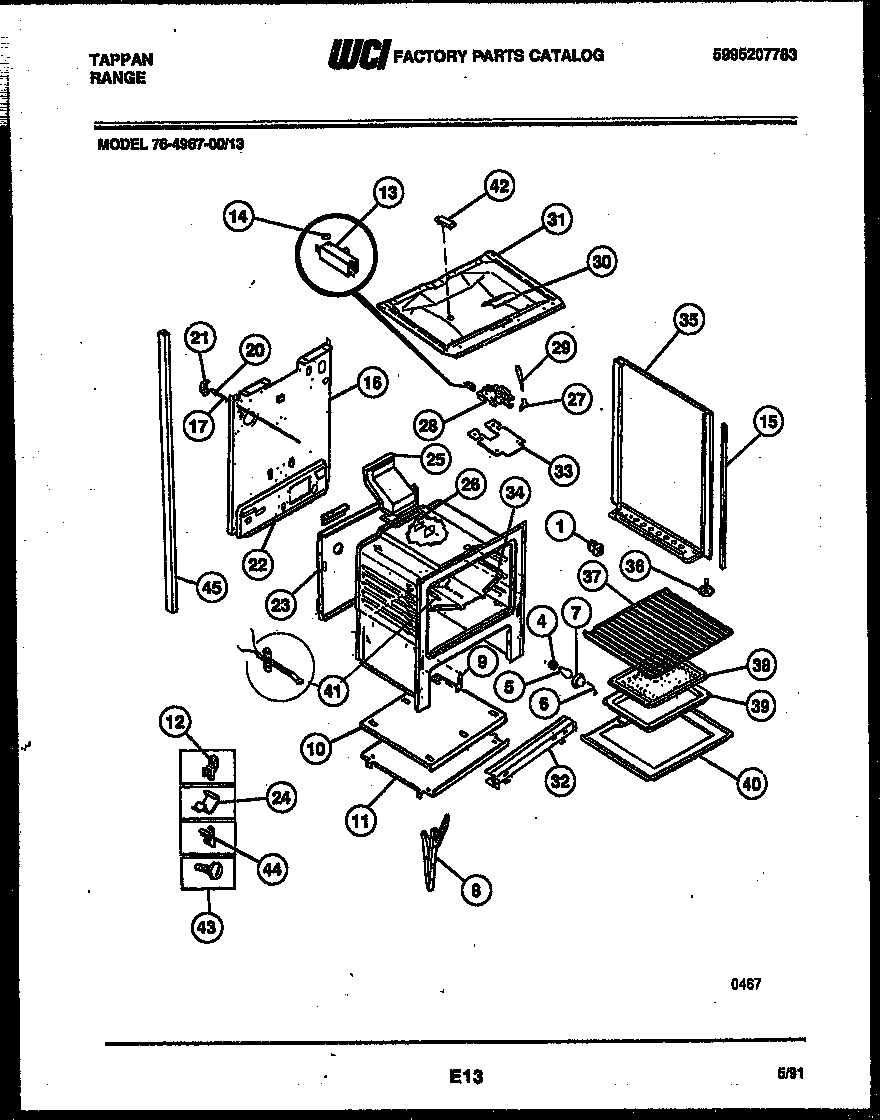

76-4967-32-13 06 – LOWER BODY PARTS

Products

Position	Product
*50842	SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*50842	TUBE-POST LH
*50842	SHIELD-LATCH
*50842	ANTI-TIP KIT (NOT ILLUSTRATED)
*50842	INSULATION, OVEN WRAPPER
*50842	WCI 19100240002
*50842	PLATE-RECEPTACLE
*50842	WCI 597T040P01
*50842	SHIELD-LATCH (NON-ILLUSTRATED)
1	SPACER-BODYSIDE, (8)
4	316116400 Frigidaire Oven Light Socket
5	316538904 Frigidaire Oven Lamp Light
6	WIRE, GLASS RETAINER
7	5304524341 Frigidaire Lens
7A	SCREW – CHANNEL MTG (NON-ILLUSTRATED)
8	WCI 316007002
9	WCI 3131570
10	WCI 3131951
11A	WCI 08067992
11	WCI 3131313
12	WCI 08067754
13	WCI 3131672
14A	STUD SPACER (2) (NON-ILLUSTRATED)
14	FSTNR-PUSH ON
15A	WCI 3200594
15	TRIM – VERTICAL B/S (2)
16	WCI 3203082
17	WCI 5303209316
20	SWITCH-OVEN LITE DOOR
21	WCI 5303131289
22	WCI 3131590
23	WCI 08067991
24	CLIP-WIRE
25	WCI 3131931
26	316542102 Frigidaire Flue Gasket
26A	WCI 08013188
27	WCI 3203218
28	WCI 5303015453
29	WCI 5303131357
30	WCI 08067757
31	WCI 3011597
32	SHIELD-FRONT
33	SHIELD-OVN TOP
34	WCI 3200836
35A	WCI 5303269546
35	WCI 5303269544
36	SCREW-LEVELING
37	316067902 Frigidaire Oven Rack
38	WCI 5303131356
39	PAN-BROILER
40	BTTM-OVEN
41A	316064600 Frigidaire Oven Support
41	WCI 5303211414
41B	3131903 Frigidaire Door/Drawer Bumper
42	WCI 3015371
43	316282700 Frigidaire Oven Screw
43B	INSULATION OVEN BACK (NON-ILLUSTRATED)
43C	INSULATION, OVEN TOP
43A	WCI 08067961
43D	08067973 Frigidaire 0 Insulation
43E	WCI 08068018
44	3051162 Frigidaire Oven Range Front Broiler Drawer Glide
45	WCI 5303208642
