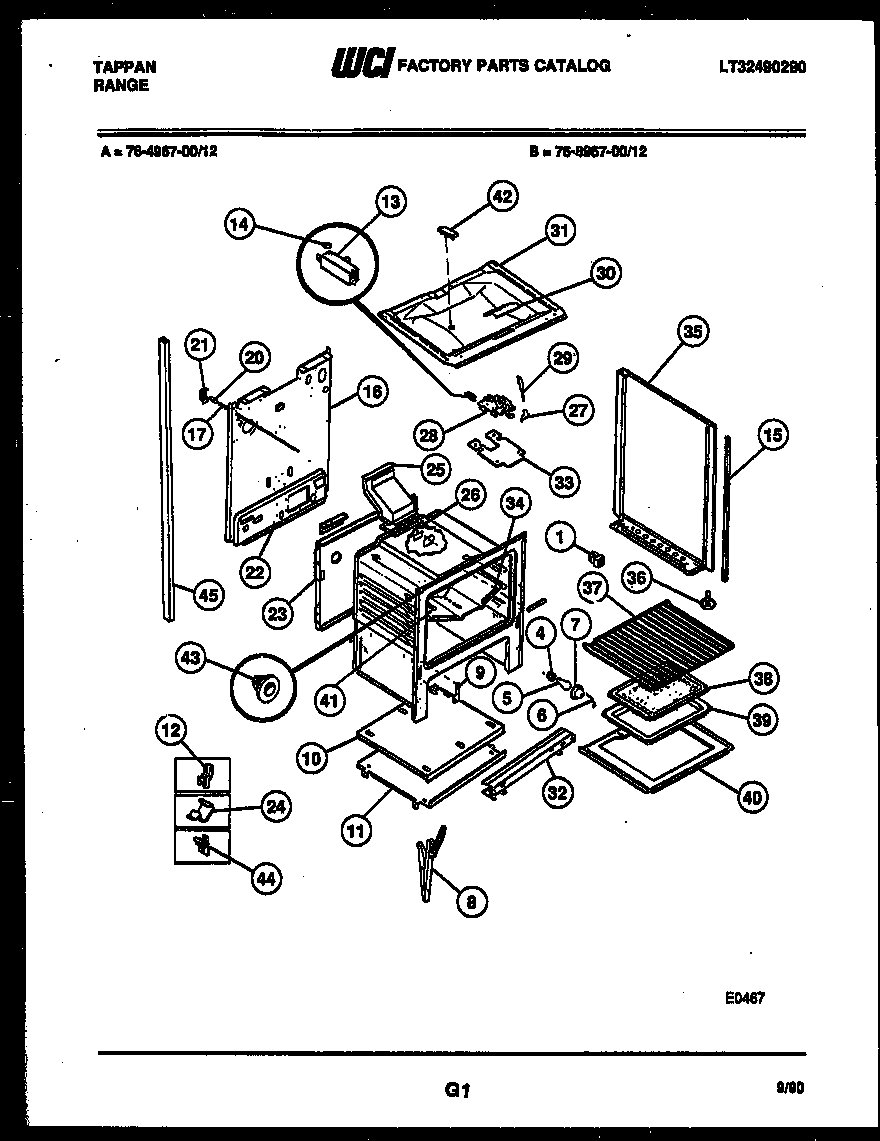

76-4967-66-12 06 – LOWER BODY PARTS

76-4967-66-12 06 – LOWER BODY PARTS

Written by

in

76-4967-66-12 06 – LOWER BODY PARTS

Products

PositionProduct
*40749INSULATION, OVEN WRAPPER
*40750SHIELD-LATCH
*40750SHIELD-LATCH (NON-ILLUSTRATED)
*40749SHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
*40749316282700 Frigidaire Oven Screw
*40749ANTI-TIP KIT (NOT ILLUSTRATED)
*40749TUBE-POST LH
1SPACER-BODYSIDE, (8)
4316116400 Frigidaire Oven Light Socket
5316538904 Frigidaire Oven Lamp Light
6WIRE, GLASS RETAINER
75304524341 Frigidaire Lens
7ASCREW – CHANNEL MTG (NON-ILLUSTRATED)
8WCI 316007002
9WCI 3131570
10WCI 3131951
11AWCI 08067992
11WCI 3131313
12WCI 08067754
13WCI 3131672
14FSTNR-PUSH ON
14ASTUD SPACER (2) (NON-ILLUSTRATED)
15AWCI 3200594
15TRIM – VERTICAL B/S (2)
16WCI 3203082
17WCI 5303209316
20SWITCH-OVEN LITE DOOR
21WCI 5303131289
22WCI 3131590
23WCI 08067991
24CLIP-WIRE
25WCI 3131931
26316542102 Frigidaire Flue Gasket
26AWCI 08013188
27WCI 3203218
28WCI 5303015453
29WCI 5303131357
30WCI 08067757
31WCI 3011597
32SHIELD-FRONT
33SHIELD-OVN TOP
34WCI 3200836
35WCI 3201001
35AWCI 3201000
35APNL B/S-RH (WHEAT)
35PNL B/S-LH (WHEAT)
36SCREW-LEVELING
37316067902 Frigidaire Oven Rack
38WCI 5303131356
39PAN-BROILER
40BTTM-OVEN
41B3131903 Frigidaire Door/Drawer Bumper
41A316064600 Frigidaire Oven Support
41WCI 5303211414
42WCI 3015371
43EWCI 08068018
43CINSULATION, OVEN TOP
43D08067973 Frigidaire 0 Insulation
43BUTTON-REMOTE SW
43AWCI 08067961
43BINSULATION OVEN BACK (NON-ILLUSTRATED)
443051162 Frigidaire Oven Range Front Broiler Drawer Glide
45WCI 5303208642
