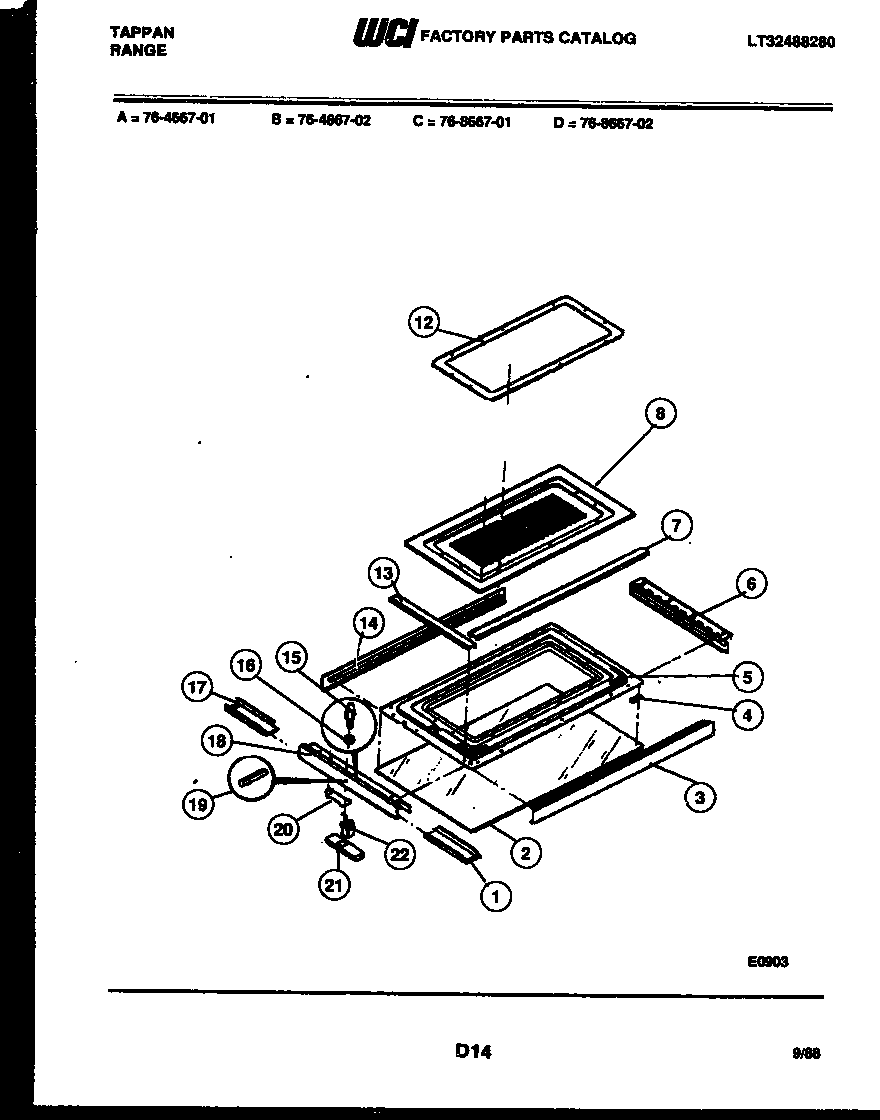

76-8667-00-01 12 – TOP AND RELATED PARTS

76-8667-00-01 12 – TOP AND RELATED PARTS

Written by

in

76-8667-00-01 12 – TOP AND RELATED PARTS

Products

Position	Product
1	INSERT DR. BOTTOM
2	WCI 3091382
3	WCI 233T027P02
4	SPACER (4)
5	FRAME
6	EXTRUSION HINGE
7	SEAL
8	WCI 511T038F06-99
12	LINER
13	SEAL
14	EXTRUSION
15	SCREW
16	NUT (2)
17	INSERT
18	EXTRUSION
19	ROLL PIN
20	WCI 675T072P02
21	HANDLE – COMPLETE
22	WCI 306T008P01
23	SCREW SW PNL. (7)
24	WCI 622T023P02
