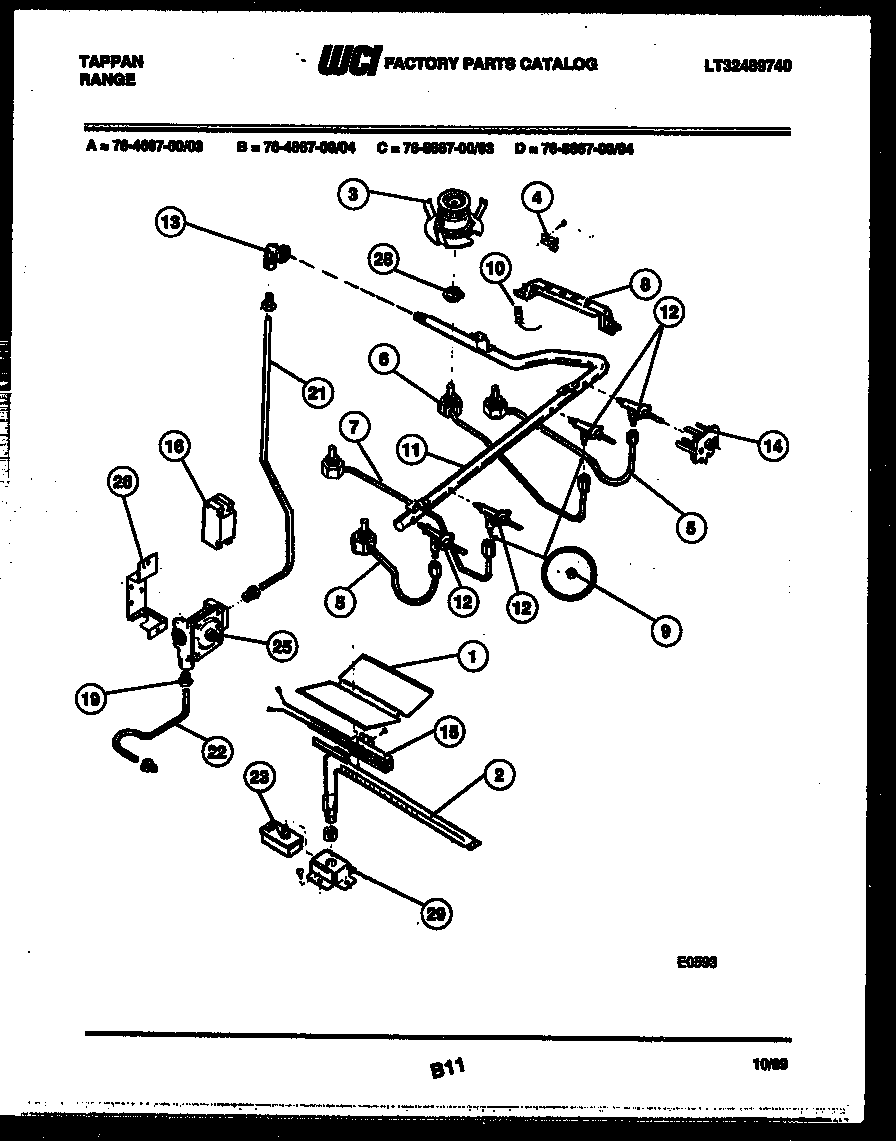

76-8667-00-03 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

Position	Product
*34780	5300809968 Frigidaire Dishwasher P-1 Washer
*34780	WASHER-BLACK
*34780	WCI 3051420
1	WCI 3131327
2	WCI 3131439
3	WCI 079T032S02
4	RETAINER IGNITER
5	BURNER TUBE-RF & LF
6	WCI 079T033H02
7	WCI 079T033H03
8	WCI 072T834F02
9	WCI 247T074P01
10	IGNITER-TOP BURNR (4)
11	WCI 3131440
12	WCI 3017846
13A	NUT COMPRESSN (4)
13	ELBOW 1/2 NP TO 9/16-24
14	316035200 Frigidaire Ignition Switch
15	5303935066 Frigidaire Oven Flat Igniter 17" Leads
16	5304505695 Frigidaire Oven Module
19	FITTING-LOXIT (8)
21	TUBE-REGUL TEE
22	TUBE - ALUM 3/8
23	3203459 Frigidaire Oven Range Dual Gas Safety Valve
25	5303935125 Frigidaire Pressure Regulator
26	316091600 Frigidaire Oven Bracket
27	5303013272 Frigidaire Oven Nut
28	NUT SPECIAL
29	BRKT.-VALVE
