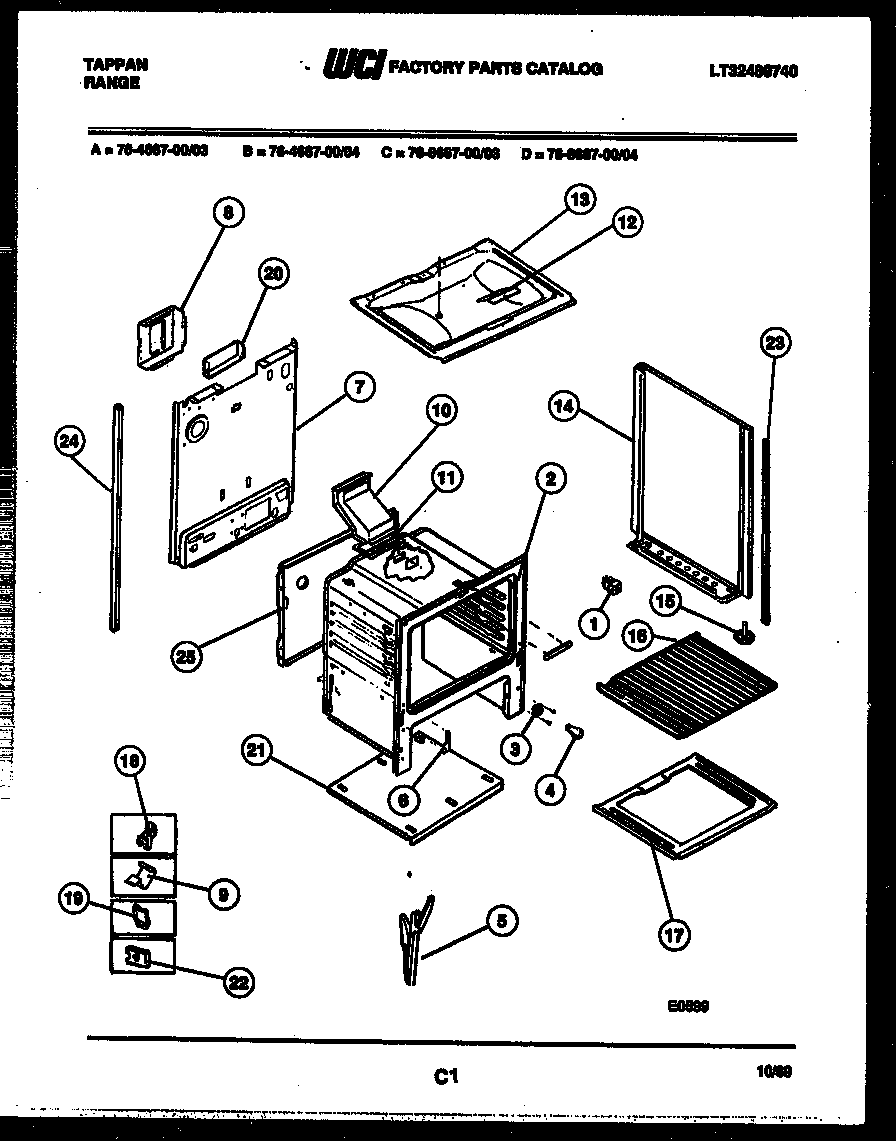

76-8667-00-03 08 – LOWER BODY PARTS

Products

Position	Product
1	WCI 665T188P02
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6	WCI 3131570
7	WCI 3131567
9	CLIP, WIRE
10	WCI 3131904
11	316542102 Frigidaire Flue Gasket
12	WCI 3131101
13	WCI 095T030F02-86
14A	B/S-LH-(WHITE)
14	B/S-RH-(WHITE)
14	WCI 3201001
14A	WCI 3201000
14A	PNL B/S-RH (ALMOND)
14	PNL B/S-LH (WHEAT)
14	PNL B/S-LH (ALMOND)
14A	PNL B/S-RH (WHEAT)
15	WCI 636M004P01
16	316067902 Frigidaire Oven Rack
17B	WCI 3131246
17A	WCI 3131201
17	WCI 058T036F02-86
18A	WCI 3131585
18	5303284616 Frigidaire Range Bulb Clip Thermostat
20A	3131903 Frigidaire Door/Drawer Bumper
20	SHIELD FLUE
20B	316064600 Frigidaire Oven Support
21B	COVER-POWER CORD, (NON-ILLUSTRATED)
21	WCI 3131180
21A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
22	3203010 Frigidaire Clip
23	TRIM-VERT B/S (2)
24C	COVER-BURNER BOX
24	WCI 3051723
24A	WCI 3051724
24D	316282700 Frigidaire Oven Screw
24B	COVER PLATE (NON-ILLUSTRATED)
25	WCI 3131660
