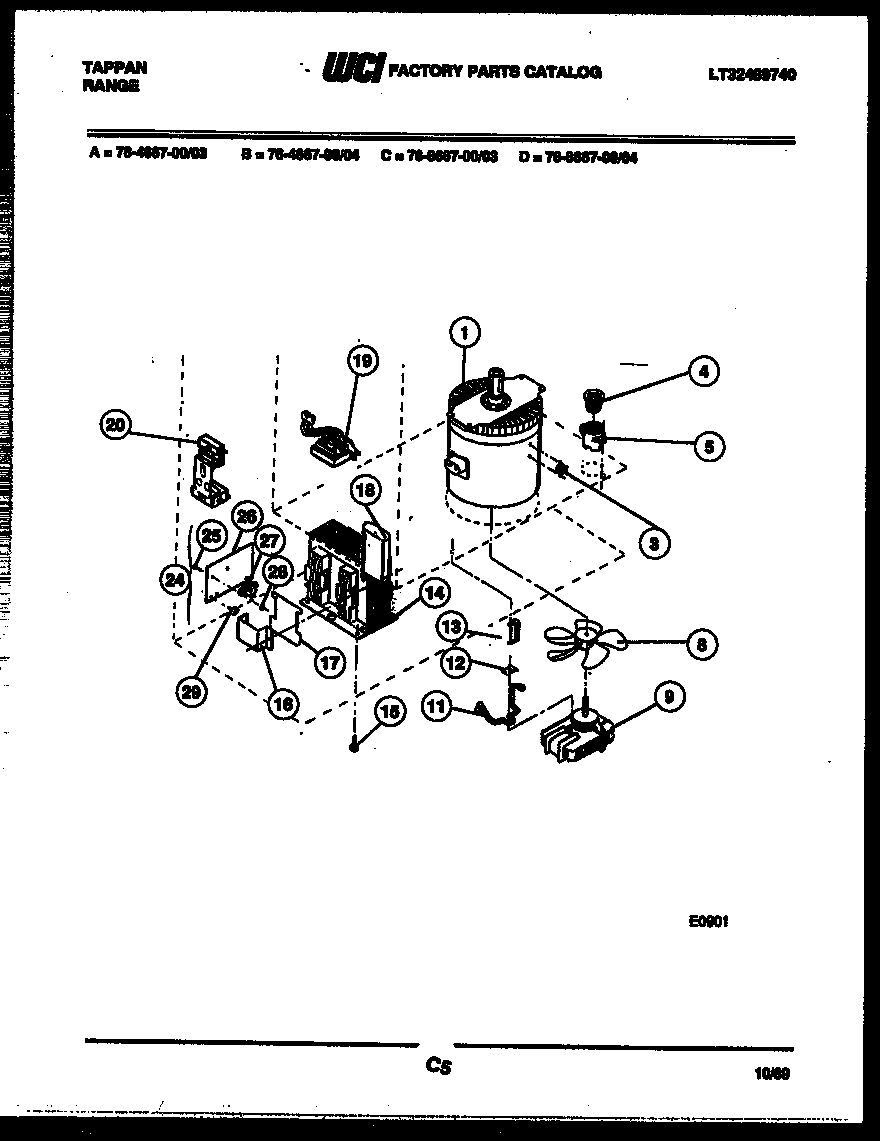

76-8667-00-04 10 – POWER CONTROL

Products

Position	Product
*34792	HARNESS MAIN
*34792	WCI 299T405S203
*34792	HARNESS-CONTRI-DUPLIX
1	WCI 423T016P02
1A	NUT (NON-ILLUSTRATED)
3	SWITCH
4	FUSE
5B	WCI 636T074P10
5	SOCKET
8	FAN BLADE TRANSFORMER
9	MOTOR FAN
9A	SCREW (8) (NON-ILLUSTRATED)
11	ROD MOTOR (2)
12	CHANNEL
13	DIODE HV
14	TRANSFORMER HV
15	SCREW, TRANS (4)
16	RETAINER
17	SHIELD CAPACITOR
18	WCI 157T157P02
19	TRANSFORMER LV
20B	WCI 636T095P16
20A	BAFFLE TRANSFORMER (NON-ILLUSTRATED)
20	SWITCH KIT (+)
20C	WCI 612T090F01
24	TRIAC, HEAT SINK
25	WCI 636T095P47
26	WCI 554T338F02
27	NUT (2)
28	WCI 742T005P01
29	WCI 636T069P54
