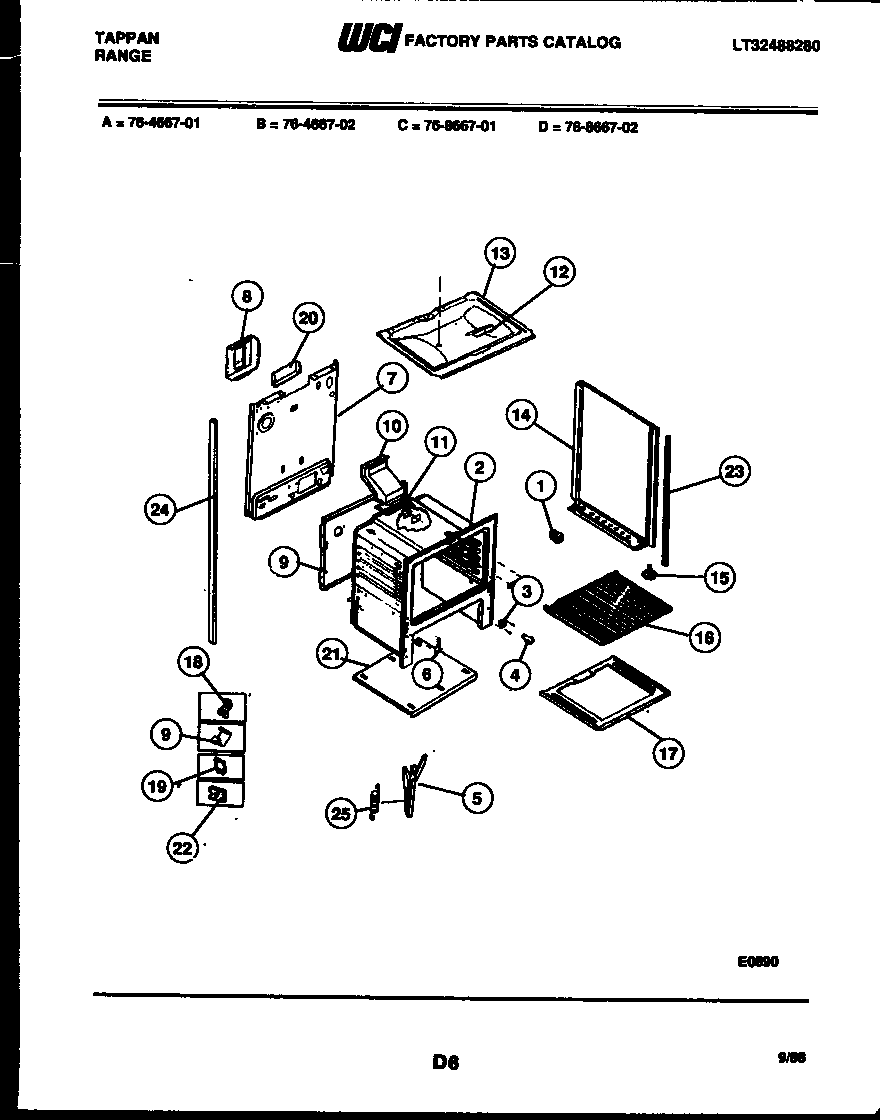

76-8667-08-01 08 – BODY PARTS

Products

Position	Product
*19717	COVER PLATE (NON-ILLUSTRATED)
*19717	COVER-BURNER BOX
*19717	316282700 Frigidaire Oven Screw
1	WCI 665T188P02
3	316116400 Frigidaire Oven Light Socket
4	316538904 Frigidaire Oven Lamp Light
5	CHANL-DR HNG (2)
6	WCI 3131570
7	WCI 3131567
8	WCI 3131660
9	CLIP, WIRE
10	WCI 3131904
11	316542102 Frigidaire Flue Gasket
12	WCI 3131101
13	WCI 095T030F02-86
14A	PANEL B/S-LH BLACK
14	PANEL B/S-RH BLACK
15	WCI 636M004P01
16	316067902 Frigidaire Oven Rack
17	WCI 058T036F02-86
17A	WCI 3131201
17B	WCI 3131246
18	5303284616 Frigidaire Range Bulb Clip Thermostat
18A	WCI 3131585
20A	3131903 Frigidaire Door/Drawer Bumper
20B	316064600 Frigidaire Oven Support
20	SHIELD FLUE
21A	PLATE-OV. LT MTG (NON-ILLUSTRATED)
21B	COVER-POWER CORD, (NON-ILLUSTRATED)
21	WCI 3131180
22	3203010 Frigidaire Clip
23	TRIM-VERT B/S (2)
24A	WCI 3051724
24	WCI 3051723
