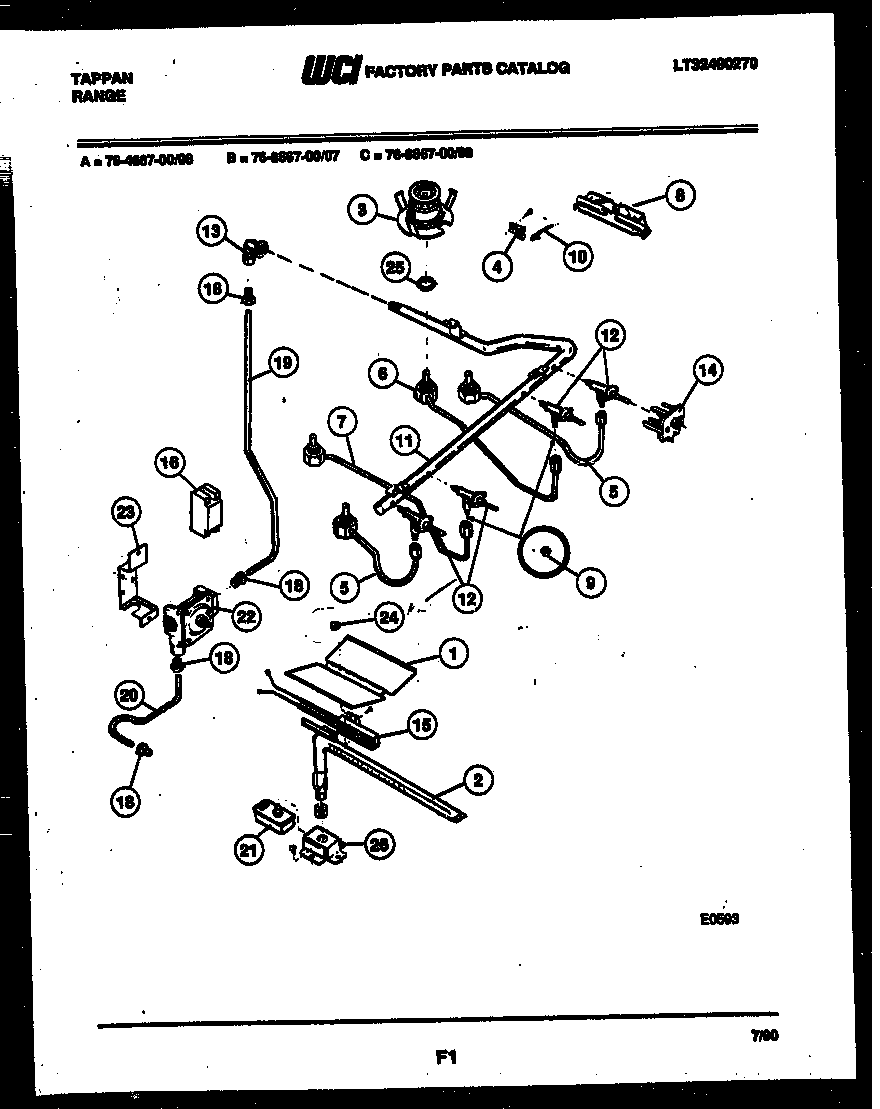

76-8667-32-07 06 – BURNER, MANIFOLD AND GAS CONTROL

76-8667-32-07 06 – BURNER, MANIFOLD AND GAS CONTROL

Written by

in

76-8667-32-07 06 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*388985300809968 Frigidaire Dishwasher P-1 Washer
*38898WCI 3051420
*38898WASHER-BLACK
1WCI 3203265
2WCI 3131439
3BURNER TOP (4)
4WCI 3018617
5BURNER TUBE-RF & LF
6WCI 5303011569
7WCI 5303011570
8WCI 136T355W03
9FERRULE (4)
10IGNITER-TOP BURNER (4)
11WCI 3131440
12WCI 5393017846
13ANUT COMPRESSN (4)
13ELBOW 1/2 NP TO 9/16-24
14316035200 Frigidaire Ignition Switch
155303935066 Frigidaire Oven Flat Igniter 17" Leads
165303912606 Frigidaire Oven Range Spark Module 2+0 4 Large Terminals
18FITTING-LOXIT (8)
19TUBE-ALUM 3/8 REG/MANIFOLD PIPE
20TUBE – ALUM 3/8
213203459 Frigidaire Oven Range Dual Gas Safety Valve
225303935125 Frigidaire Pressure Regulator
23316091600 Frigidaire Oven Bracket
245303013272 Frigidaire Oven Nut
25NUT, SPECIAL
26BRKT.-VALVE
