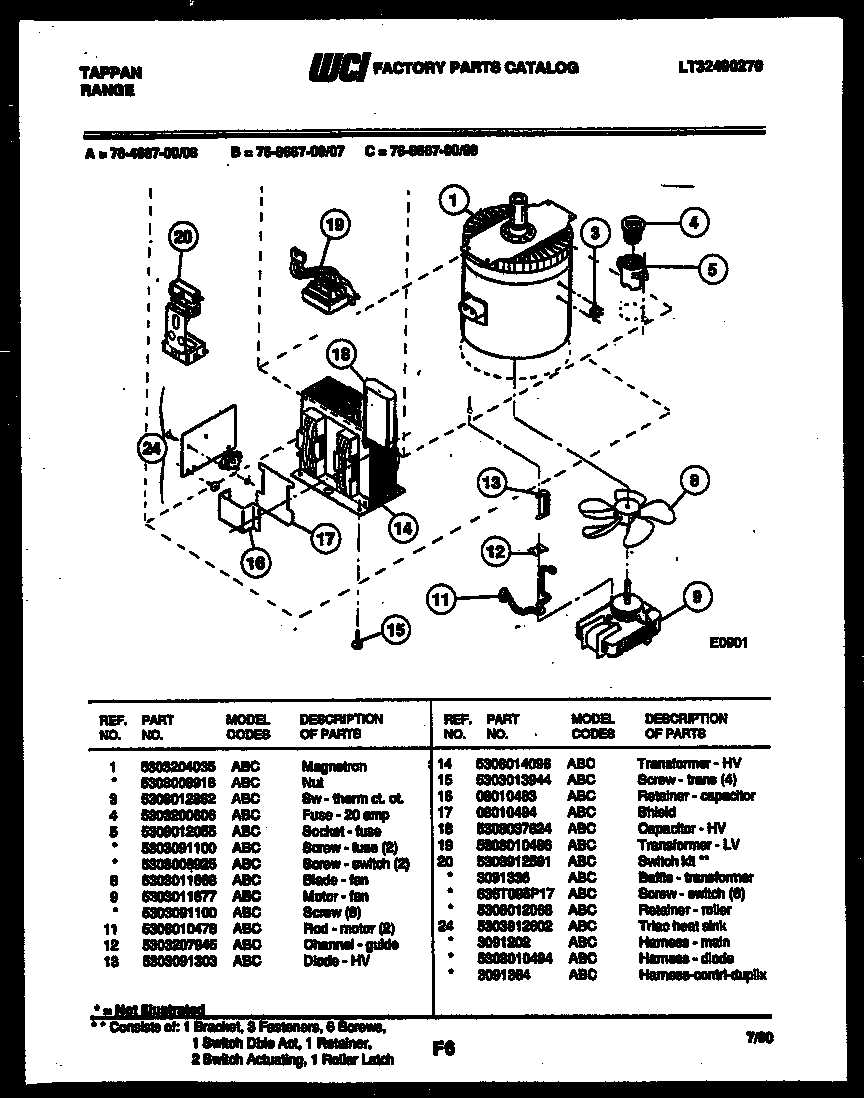

76-8667-66-08 09 – POWER CONTROL

Products

Position	Product
*38911	HARNESS-CONTRI-DUPLIX
*38911	HARNESS MAIN
*38911	WCI 5308010494
1A	WCI 5308008918
1	WCI 5303204035
3	SWITCH
4	FUSE
5B	SCREW - SWITCH (2) (NON-ILLUSTRATED)
5	SOCKET
8	WCI 5303011668
9A	SCREW-WRAPPER (13)
9	WCI 5303011677
11	WCI 5308010478
12	CHANNEL
13	DIODE HIGH VOLTAGE
14	TRANSFORMER H.V.
15	SCREW - TRANS (4) (NON-ILLUSTRATED)
16	RETAINER
17	SHIELD CAPACITOR
18	CAPACITOR - HV
19	WCI 5308010486
20	SWITCH KIT
20B	WCI 636T095P17
20C	WCI 5308012068
20A	BAFFLE TRANSFORMER (NON-ILLUSTRATED)
24	TRIAC
