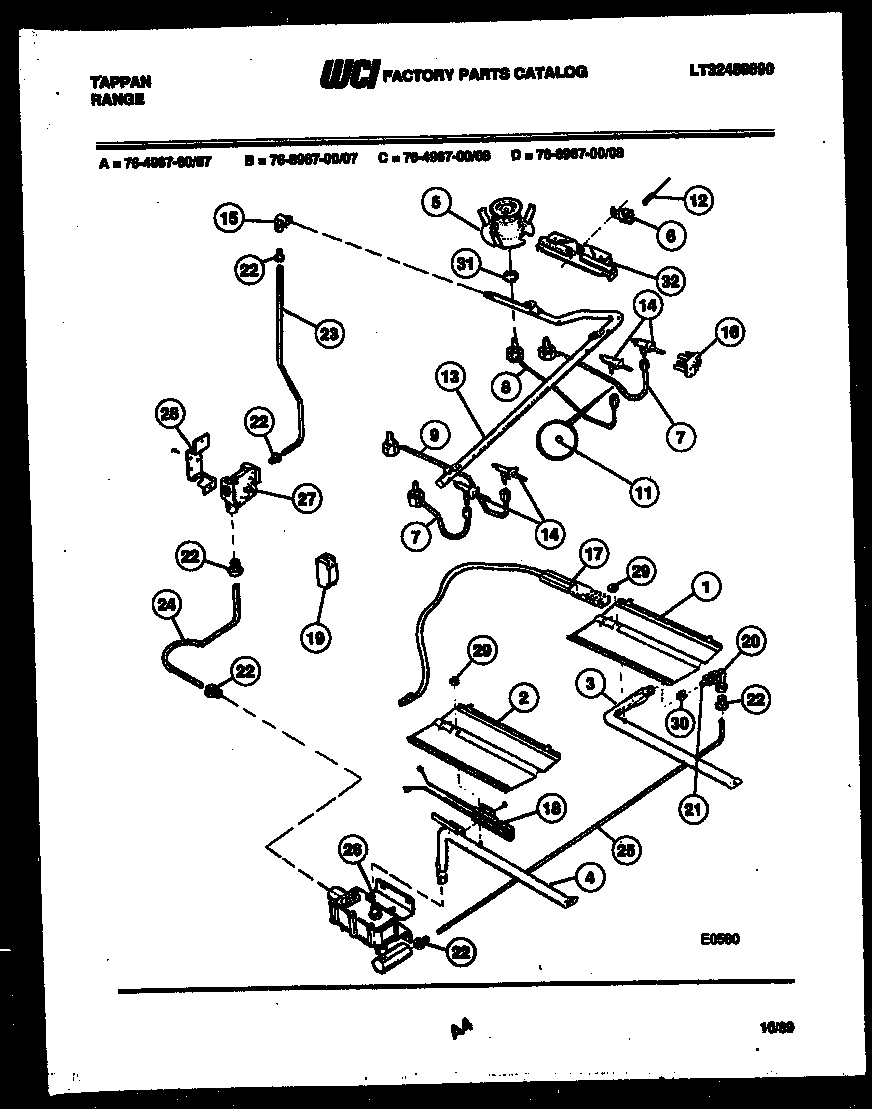

76-8967-66-08 03 – BURNER, MANIFOLD AND GAS CONTROL

Products

PositionProduct
*33928WCI 3051420
1WCI 3131283
2BAFFLE-OVN BURNER
3WCI 079T028P01
4GLASS FRNT
4WCI 3131290
5WCI 079T032S02
6RETAINER ELECTROS
7BURNER TUBE-RF & LF
8WCI 079T033H02
9WCI 079T033H03
11WCI 247T074P01
12IGNITER-TOP BURNR (4)
13WCI 3131440
14WCI 3017846
15ANUT COMPRESSN (4)
15ELBOW 1/2 NP TO 9/16-24
16316035200 Frigidaire Ignition Switch
175303935068 Frigidaire Flat Igniter
185303935066 Frigidaire Oven Flat Igniter 17" Leads
195304505695 Frigidaire Oven Module
20WCI 455T008P02
21NUT
22FITTING-LOXIT (8)
23TUBE-REGUL TEE
24TUBE-VALVE TO REGUL
25TUBE-VALVE TO MIXER ELBOW
26BWASHER-BLACK
265303208499 Frigidaire Safety Gas Valve
26A5300809968 Frigidaire Dishwasher P-1 Washer
275303935125 Frigidaire Pressure Regulator
28316091600 Frigidaire Oven Bracket
295303013272 Frigidaire Oven Nut
30SPUD NO 50
31NUT SPECIAL
32WCI 136T355W03
