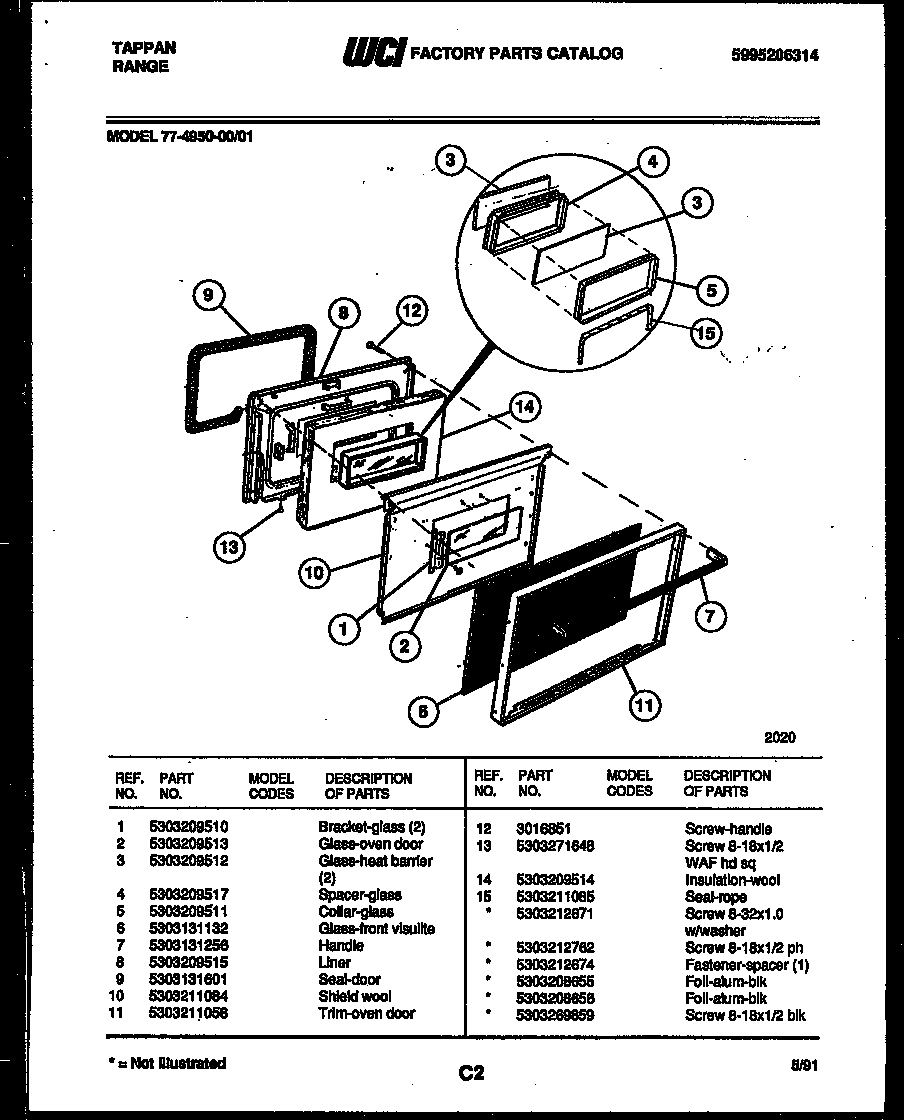

77-4950-00-01 03 – LOWER OVEN DOOR PARTS

77-4950-00-01 03 – LOWER OVEN DOOR PARTS

Written by

in

77-4950-00-01 03 – LOWER OVEN DOOR PARTS

Products

PositionProduct
*52301SCREW, CR PAN HD SEMS, 8-32BP X 1.00
*52301WCI 5303269859
*523015303300265 Frigidaire Oven Screw
*52301FSTNR-NYLON SPACER (NON-ILLUSTRATED)
*523015303208655 Frigidaire Reflector Assembly
*52301REFLECTOR, ALUMINUM FOIL
1BRACKET-GLASS MTG
2GLASS-OVEN DOOR, INNER
3GLASS-OVEN DOOR, HEAT BARRIER, (2)
4WCI 5303209517
5WCI 5303209511
6GLASS FRNT
7HANDLE
8WCI 5303209515
95303131601 Frigidaire Oven Seal
10SHIELD-INSULATION
11WCI 5303211058
12WCI 3016851
135303271648 Frigidaire Oven Screw
14INSULATION-OVEN DOOR
15SEAL-ROPE, 0.25 DIA
