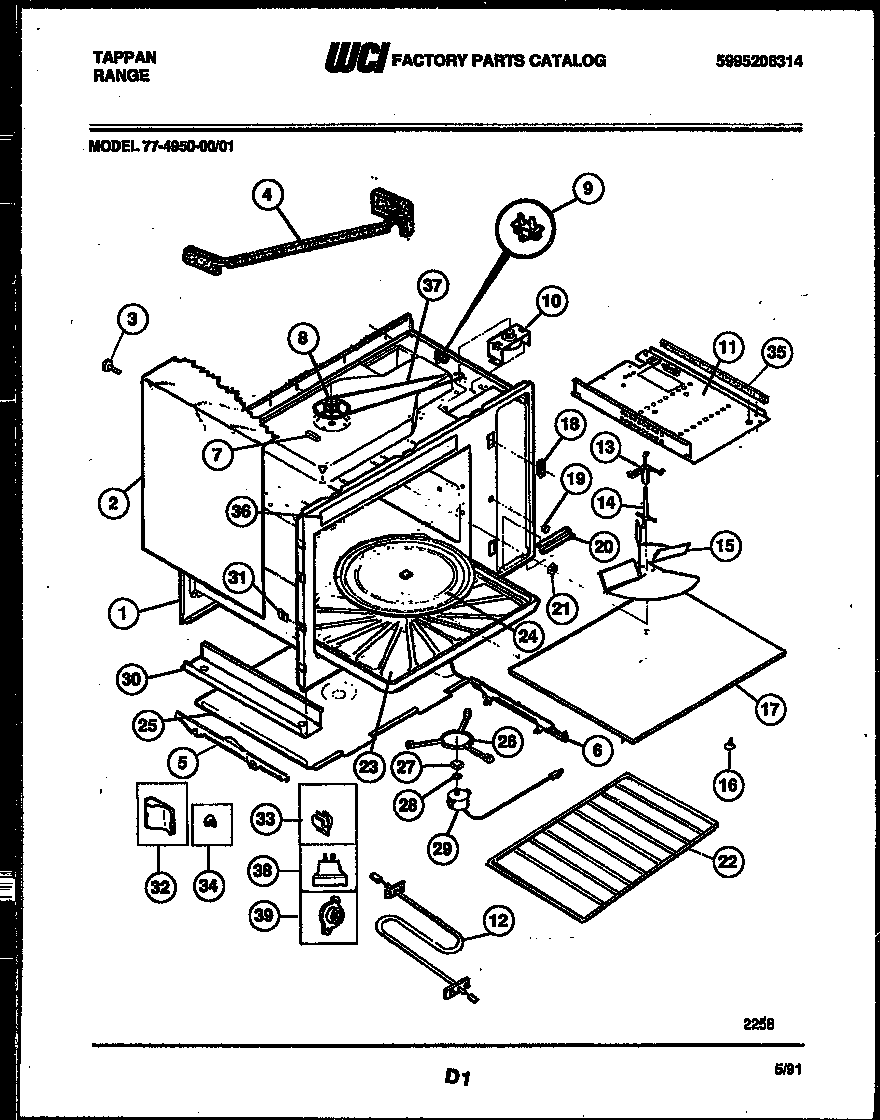

77-4950-00-01 12 – WRAPPER AND BODY PARTS

Products

Position	Product
2	WCI 5303272822
3	SCREW-WRAPPER (13)
4	SEAL-FOAM
5	CHANL-SUPT LH
6	CHANL-SUPT RH
7	SPACER – WRAPPER
8	WCI 5303013647
9	WCI 5303091280
10	MOTOR – PULLEY
11	WCI 5303270033
12	ELMNT-BROWNER
13	WCI 5303011826
14	WCI 5303202875
15	WCI 5308037708
16	RIVET-COVER (8)
17	GLASS-STIRRER CVR
18	BEZEL-LATCH (2)
19	WCI 5308037644
20	BRACKET
21	PLUG-BUTTON
22	RACK
23	GLASS TRAY (NOT ORIGINAL EQUIPMENT. CUSTOMER PURCHASE ON
23A	WCI 5308008973
23B	WCI 5303270100
23C	WCI 5303270099
23D	WCI 5303202458
24	TRAY-ROUND
25	SHIELD – BOTTOM
26	SUPPORT-ROLLERS
27	WCI 5303922044
28	WASHER
29	WCI 5303922046
30	WCI 5303011773
31	3203010 Frigidaire Clip
32	WCI 5303012322
33	SUPPORT RACK (8)
34B	5303321319 Frigidaire Refrigerator White Touch Up Paint
34	PLUG-BUTTON TRAY (2)
34A	SHIELD-LIGHT (NON-ILLUSTRATED)
35	SEAL-FOAM CUT TO SIZE
36	WCI 5303018849
37	WCI 5303011495
37A	WASHER-PULLEY
38	WCI 5303202107
39	SOCKET
