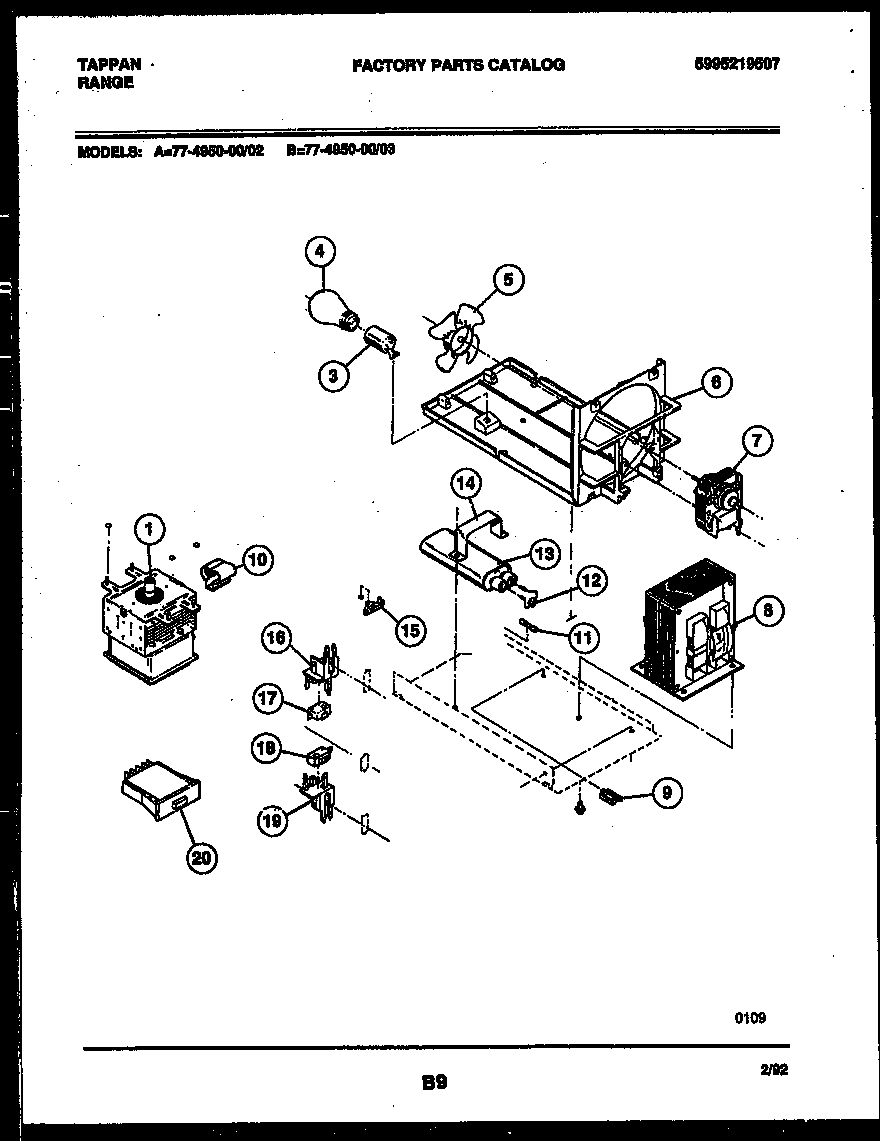

77-4950-23-02 11 – POWER CONTROL
Products
| Position | Product |
|---|---|
| *65861 | WCI 5303270051 |
| *65860 | WCI 5303206757 |
| *65862 | WIRING DIAGRAM (NOT FOR PURCHASE) |
| *65862 | INSULATOR-CAPACITY |
| *65861 | WCI 3091254 |
| *65861 | WCI 5303270050 |
| *65861 | HARNESS-BROWNER |
| 1 | WCI 5303206781 |
| 3 | SOCKET |
| 4 | BULB |
| 5 | WCI 5303203192 |
| 6 | DUCT-AIR |
| 7 | WCI 5308037636 |
| 8 | WCI 5308037626 |
| 9 | CLIP |
| 10 | INSULATOR |
| 11 | FUSE |
| 12 | DIODE HIGH VOLTAGE |
| 13 | CAPACITOR - HV |
| 14 | WCI 5303013771 |
| 15 | WCI 5303091280 |
| 18 | WCI 5303203636 |
| 19 | BRACKET (2) |
| 20 | SWITCH-MONITOR |
