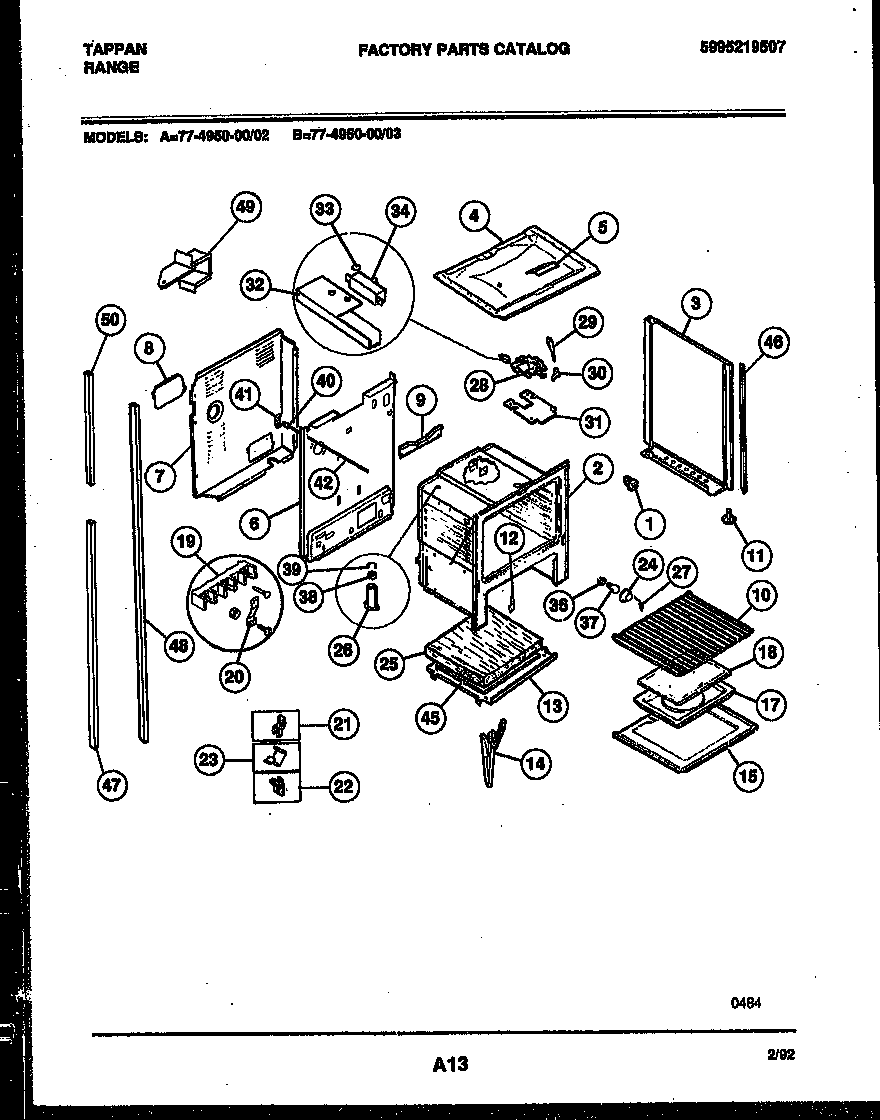

77-4950-23-03 04 – LOWER BODY PARTS

77-4950-23-03 04 – LOWER BODY PARTS

Written by

in

77-4950-23-03 04 – LOWER BODY PARTS

Products

PositionProduct
*65847WIRING DIAGRAM-(NOT FOR PURCHASE) (NON-ILLUSTRATED)
1SPACER-BODYSIDE, (8)
3WCI 5303269545
3AWCI 5303269543
4WCI 5303271658
5WCI 08067757
6WCI 3203082
7SHIELD-REAR WALL, LOWER
8COVER-ACCESS
9COVER-FLUE
10316067902 Frigidaire Oven Rack
11SCREW-LEVELING
12WCI 3131570
13SHIELD, OVEN BOTTOM
14WCI 316007002
15PANEL-OVEN BOTTOM
17PAN-BROILER
18WCI 5303131356
195304409888 Frigidaire Oven Terminal Block with Hardware
20PLATE-GROUND STRAP
21WCI 08067754
223051162 Frigidaire Oven Range Front Broiler Drawer Glide
23WCI 3051367
245304524341 Frigidaire Lens
25316403803 Frigidaire Insulation
26WCI 3051344
27GWCI 3051299
27E316205500 Frigidaire Oven Nut
27CINSULATION, OVEN TOP
27AINSULATION, OVEN WRAPPER
27F3203550 Frigidaire Oven Plug
27BINSULATION OVEN BACK (NON-ILLUSTRATED)
27IWCI 3015418
27HWCI 5303206618
27RETAINER-GLASS
27DSCREW-HINGE MTG. (6) (NON-ILLUSTRATED)
28WCI 5303015361
29WCI 5303131357
30AWCI 08013188
30WCI 3203218
31SHIELD-LATCH
32SHIELD-LATCH (NON-ILLUSTRATED)
33FSTNR-PUSH ON
34WCI 3131672
36316116400 Frigidaire Oven Light Socket
37316538904 Frigidaire Oven Lamp Light
38WCI 08067810
39WCI 08010606
40SWITCH-OVEN LITE DOOR
41WCI 5303131289
42WCI 5303209316
45A3131903 Frigidaire Door/Drawer Bumper
45WCI 3200848
46TRIM – VERTICAL B/S (2)
47WCI 5303269933
48ASHIELD, HEAT, BODY SIDE (NOT ILLUSTRATED)
48BFASTENER-EDGE MTG (NOT ILLUSTRATED)
48WCI 5303269934
48CANTI-TIP KIT (NOT ILLUSTRATED)
49WCI 3203582
50WCI 5303269935
