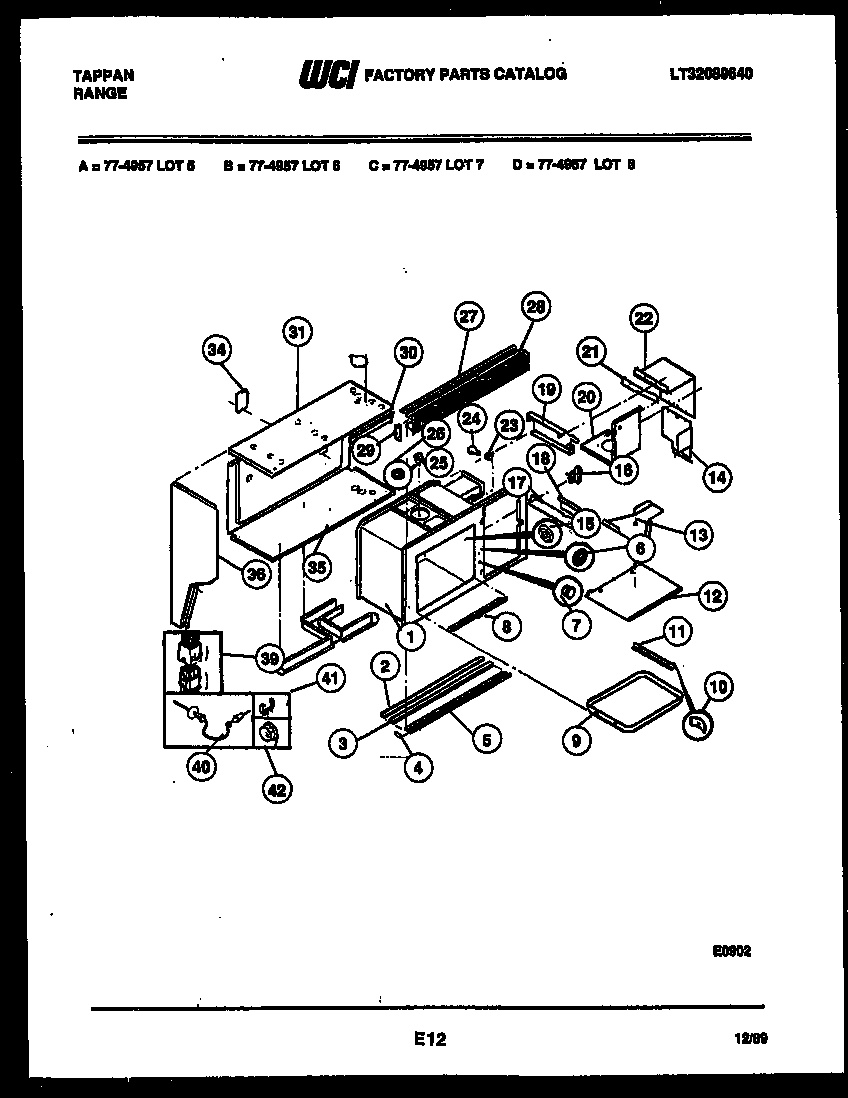

77-4957-00-06 10 – UPPER BODY PARTS

Products

Position	Product
*19000	WCI 241T017P154
*19000	WCI 331T117P01
*19000	PLUG BUTTN. RACK GLIDES (8)
*18999	FASTNR WIRE CLIP
*18999	LABEL COOKING GUIDE (NON-ILLUSTRATED)
*18999	FASTNR-8A U-TYPE
*18999	FASTNR. HNG. MTG. (4)
*19000	FASTNR PURSELOCK
2	SEAL
3	COVER - SEAL
4	WCI 123T082P01
5A	SCREW (8) (NON-ILLUSTRATED)
5	TRIM - BOTTOM
6	MEDALLION DR STRIKE
7	GROMMET DOOR
8	TRIM, FRONT
9	TRAY GLASS
10	CLIP TRAY (4)
11	GLIDE TRAY (2)
12	COVER, STIRRER
13	WCI 239T043S02
13A	NUT STIRRER SHAFT TO FAN
14	COVER DUCT EXT.
15	WCI 479T084P01
16	RECEPTACLE
17	WCI 008T480P01
18	WCI 008T378F11
19	WCI 136T321F02-18
20A	SCREW DUCT (2) (NON-ILLUSTRATED)
20	WCI 211T044F04
21	BRACKET
22	COVER DUCT
23	SOCKET
24	BULB
25	WCI 115T463P01
26	WASHER
27	WCI 612T101F01
28	WCI 740T454P02
29A	CAP END RH
29B	SCREW END CAP 8A X 3/8 (2) (NON-ILLUSTRATED)
29	CAP END LH
30A	WCI 655T307F03-18
30	WCI 655T307F02
31	WCI 529T079F05-18
34	COVER LIGHT
35	WCI 805T023F06-18
36	WCI 3131907
36A	WCI 3051263
36	WCI 3051260
39	PLUG DISCONN. KIT OVN. ELMNT. WHITE
39A	PLUG KIT
40	WCI 115T563P03
42	BUSING
